Product Name | 220V 1.5kw 2.2kw 4kw Solar Pump Inverter | Power | 1.5kw、2.2kw、4kw |
---|---|---|---|
Weight | 4kg | Warranty | 18 Months |
OEM | Acceptable | Input Type | Support AC And DC Input |
High Light | DC To AC Solar Inverter 1.5 Kw,Remote Monitoring 1.5 Kw Solar Inverter,Remote Monitoring DC To AC Solar Inverter |

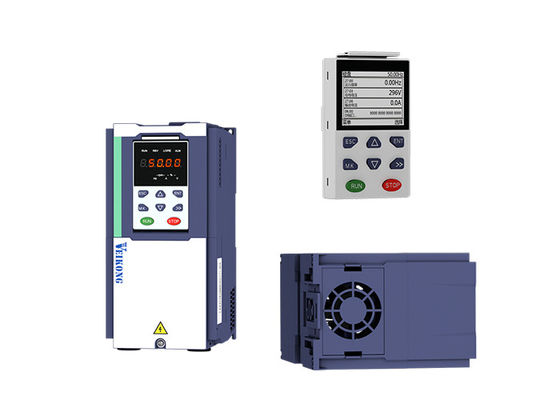

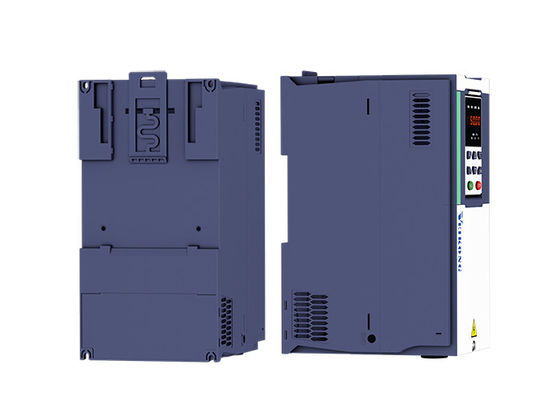

DC to AC 220V 1.5kw 2.2kw 4kw Single Phase Solar Pump Inverter
Product Features:
♦ Flexibility
◊ Compatible with IEC standard three-phase asynchronous induction motors
◊ Compatible with popular PV arrays
◊ Grid supply option
♦ Reliability
◊ 10-year market proven experience of leading motor and pump drive technology
◊ Soft start feature to prevent water hammer and increase system life
◊ Built-in overvoltage, overload, overheat and dry-run protection
♦ Cost Effectiveness
◊ Plug-and-play system design
◊ Embedded motor protection and pump functions
◊ Battery-free for most applications
◊ Effortless maintenence
♦ Smartness
◊ Self-adaptive maximum power point tracking technology up to 99% efficiency
◊ Automatic regulation of pump flow
◊ Self-adaption to the motor used in the installation
♦ Remote Monitoring
◊ Standard RS485 interface equipped for each solar pump inverter
◊ Optional GPRS/WIFI/Ethernet RJ45 modules for remote access
◊ Spots value of solar pump parameters monitoring available from anywhere
◊ History of solar pump parameters and events lookup support
◊ Android/iOS monitoring APP support
Electrical Specifications
|
220V |
380V |
Max input DC voltage |
450V |
810V |
DC voltage range |
150~450VDC |
300~810VDC |
Normal working DC voltage |
260V-400V |
400V-650V |
Recommended input mppt voltage |
330V |
550V |
MPPT efficiency |
>99% |
|
Rated output voltage |
1/3-phase 220VAC |
3-phase 380-480VAC |
Output frequency range |
50/60Hz |
|
Max efficiency of the machine |
99% |
|
Ambient temperature range |
-10 °C~50 °C, derating if the temperature is above 40 °C |
|
Cooling method |
Air cooling |
|
Protection degree |
IP20/IP21 |
|
Altitude |
Below 1000m; above 1% for every additional 100m. |
|
Standard |
CE/ROHS |
Model Range
Drive model |
Max DC input current (A) |
Rated output current (A) |
Applicable water pump (kW) |
VFD500M-40T00150-PV |
6.1 |
3.7 |
1.5 |
VFD500M-40T00220-PV |
7.1 |
5 |
2.2 |
VFD500M-40T00400-PV |
16.5 |
9.4 |
4 |
VFD500M-40T00550-PV |
23.9 |
13 |
5.5 |
VFD500M-40T00750-PV |
30.6 |
17 |
7.5 |
VFD500-40T00150-PV |
6.1 |
3.7 |
1.5 |
VFD500-40T00220-PV |
7.1 |
5 |
2.2 |
VFD500-40T00400-PV |
16.5 |
9.4 |
4 |
VFD500-40T00550-PV |
23.9 |
13 |
5.5 |
VFD500-40T00750-PV |
30.6 |
17 |
7.5 |
VFD50040T01100-PV |
39.2 |
25 |
11 |
VFD500-40T01500-PV |
49.0 |
32 |
15 |
VFD500-40T01850-PV |
57 |
37 |
18.5 |
VFD500-40T02200-PV |
69 |
45 |
22 |
VFD500-40T03000-PV |
91 |
60 |
30 |
VFD500-40T03700-PV |
114 |
75 |
37 |
VFD500-40T04500-PV |
146 |
90 |
45 |
VFD500-40T05500-PV |
190 |
112 |
55 |
VFD500-40T07500-PV |
237 |
152 |
75 |
VFD500-40T09000-PV |
273 |
176 |
90 |
VFD500-40T11000-PV |
319 |
210 |
110 |
VFD500-40T13200-PV |
389 |
253 |
132 |
220V single phase or three phase level |
|||
VFD500-20T00075-PV |
6.7 |
4.5 |
0.75 |
VFD500-20T00150-PV |
9.9 |
7 |
1.5 |
VFD500-20T00220-PV |
14.1 |
10.6 |
2.2 |
VFD500-20T00400-PV |
22.6 |
17 |
4 |
VFD500M-20T00150-PV |
9.9 |
7 |
1.5 |
VFD500M-20T00220-PV |
14.1 |
10.6 |
2.2 |
Product Application



FAQ:
1. What should be noticed when installing inverter?
Put the product in a place where is well ventilate, cool, dry and water-proof. Do not stress or put foreign objects into the inverter. Remember to turn on the inverter before turn on the appliance.
2. Where is your factory located?
Our factory is located in Shenzhen, China, you are very welcome to visit our company.
Please feel free to contact us if you need information on road conditions or directions.
3. If pump is 60HZ frequency, how to set max frequency?
Notice: If your motor rated frequency is 60HZ First solution for you, P01.06=P01.08=P11.05=60HZ.
Quick setting and easier way: you should set P00.11=02 If your motor is three phase; if your motor is single phase with capacitor, set P00.11=22; If your motor is single phase without capacitor, set P00.11=32
