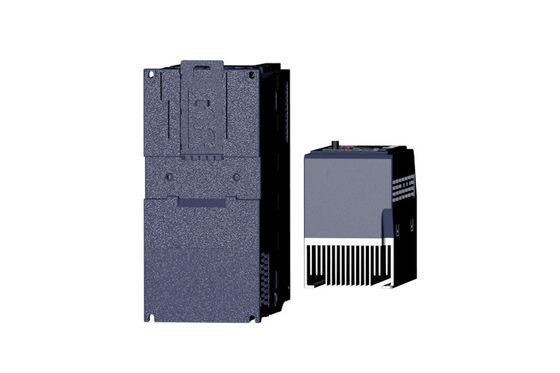

1HP 2HP 3HP 5HP 10HP 220v Single Phase Solar Pump Inverter MPPT PID Mode LCD Display
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VFD500-PV
Minimum Order Quantity 1
Price Negotiable
Packaging Details the power less than 45kw use Carton, starting from 45kw use Wooden case
Delivery Time 3 days, depend on the order quantity
Payment Terms L/C, T/T, Western Union
Supply Ability 15000pcs per Month
Product Details
Product Name Solar Pump Controller Output Type Single Phase Or Three Phase
Voltage 220v 380v Efficiency 99%
IP LEVEL IP20 IP55 Rated Power 1hp 2hp 3hp 5hp 10hp
High Light

220v single phase solar pump inverter

,

PID single phase solar pump inverter

,

Marco mode VEIKONG solar pump inverter

Product Description

1HP 2HP 3HP 5HP 10HP 220v single phase solar pump inverter pump controller



VEIKONG SOLAR PUMP INVERTER Special feature:
Support Maximum mppt efficiency 99%
Special solar mppt mode and PID mode
Support LCD display
Support GPRS remote control
Support IM AND PM pump
Support hybrid AC and DC
Support Marco mode
Support dry run protection
Support full water and low water protection
Support one button to switch AC



Electrical Specifications and Power degree



  220V 380V
Max input DC voltage 450V 810V
DC voltage range 150~450VDC 300~810VDC
Normal working DC voltage 260V-400V 400V-650V
Recommended input mppt voltage 330V 550V
MPPT efficiency >99%
Rated output voltage 1/3-phase 220VAC 3-phase 380-480VAC
Output frequency range 50/60Hz
Max efficiency of the machine 99%
Power range 220v 0.75kw to 75kw, 380v 1.5kw-160kw
Cooling method Air cooling
Protection degree IP20/IP65
Altitude Below 1000m; above 1% for every additional 100m.
Standard CE/ROHS



Structural Design Advantages:
1. Independent heat dissipation air duct
2. Using 4-layer precision PCB board and a new generation of IGBT module technology, and mostly using IC integrated electronics.
3.The volume of new generation inverter is smaller,and weight is lighter

Software Design Advantages:
1. Selected the latest HIGH-SPEED TI DSP chip
2. Used the control software with independent intellectual property rights
3. New wave-by-wave current limiting control algorithm, control current and voltage stability
4. Brand new current, voltage, control algorithm, plus unique excitation current control
5. Four times of fault parameter record,
6. Complete machine protection function
7. Perfect power protection function
8. Widely voltage design







Product Application

1HP 2HP 3HP 5HP 10HP 220v Single Phase Solar Pump Inverter MPPT PID Mode LCD Display


Accessories:



1. GPRS (support 2g/3g/4g internet)



It supplies water volume monitoring and operation of inverter from anywhere at anytim

It’s convenient to visit real time and historical data via web or Android APP anytime and anywhere.

This easy-to-use platform makes monitoring of solar pump systems simple and convenient,

far reducing operate time and monitoring costs as well.



2. LCD keypad



Standard inverter are with LED keypad,LCD keypad is optional.

LCD keypad can monitor 4 parameters at the same time. LED keypad show one parameter only.

LCD keypad with detailed parameter explain,no need use user manual ,more user friendly.

LCD keypad with copy and update and download function.widely used for government projects and big farms.



3. Output reactor



If the distance between inverter and pump is more than 1000m, we suggest our customer to use output reactor to protect the motor.
