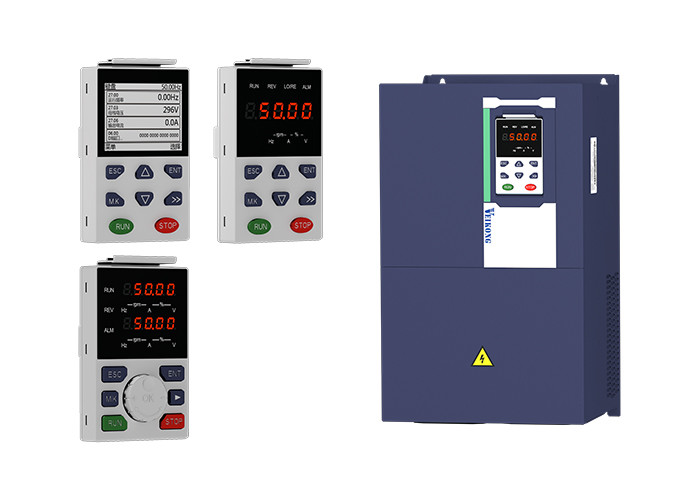

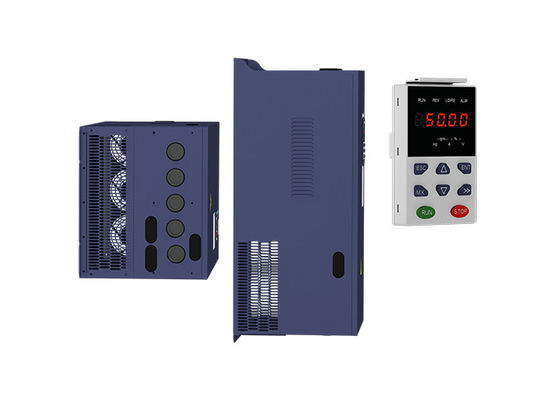

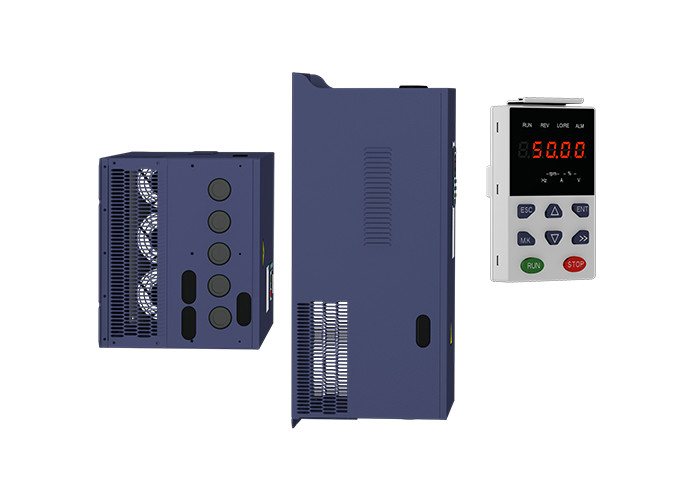

37KW 50 Hp Ac Drive Variable Frequency Drive Inverter For Compressor
| Place of Origin | China |
|---|---|
| Brand Name | VEIKONG |
| Certification | CE |
| Model Number | VFD500 |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | Carton and Wooden Box |
| Delivery Time | 3 days, depend on the order quantity |
| Payment Terms | Western Union, T/T, L/C, D/A, D/P, PayPal |
| Supply Ability | 15000pcs per Month |
Product Details
| Product Name | 37KW 50hp VFD Variable Frequency Drive | Current | 75A |
|---|---|---|---|
| IGBT | FUJI, Infineon | Output Type | Triple |
| Weight | 18kg | Warranty | 18 Months |
| High Light | Compressor 50 Hp Ac Drive,37KW Variable Frequency Drive Inverter,50Hp Variable Frequency Drive Inverter |
||
Product Description
37KW 50hp AC Drive Frequency Inverter For Compressor And Automation Machine
Performance Advantage
Flexible and expandable: With a flexible modular design, the AutomationDrive VFD500 is packed with standard features which can be expanded with plug-and-play options with additional features and fieldbuses. Safe Torque-Off is a standard safety feature that can be applied through hardwired safety.
Easy set up and commissioning: The VEIKONG VFD500 is easy to set up and operate via the user-friendly graphical control panel, requires minimal maintenance, and delivers a market leading control solution which provides a fast return on investment with a highly competitive cost of ownership.
Smart Start wizard: Includes groups for several of the most common applications, including conveyors, pumps and fans, and setup with mechanical brake. With the settings to run applications already in place, you can get your machine up and running faster, increasing your productivity.
Model Range
|
Model |
Power capacity (KVA) |
Input current (A) |
Output current(A) |
Adaptable Motor (KW) |
SIZE |
Brake Unit |
|
|
Heavy load |
Light load |
||||||
|
Three phase: 380-480V,50/60Hz |
|||||||
|
VFD500-R75GT4B |
1.5 |
3.4 |
2.5 |
4.2 |
0.75 |
SIZE A |
Internal |
|
VFD500-1R5GT4B |
3 |
5 |
4.2 |
5.6 |
1.5 |
||
|
VFD500-2R2GT4B |
4 |
5.8 |
5.6 |
9.4 |
2.2 |
||
|
VFD500-4R0G/5R5PT4B |
5.9 |
10.5 |
9.4 |
13.0 |
3.7 |
||
|
VFD500-5R5G/7R5PT4B |
8.9 |
14.6 |
13.0 |
17.0 |
5.5 |
SIZE B |
|
|
VFD500-7R5G/011PT4B |
11 |
20.5 |
17.0 |
23.0 |
7.5 |
||
|
VFD500-011G/015PT4B |
17 |
26.0 |
25.0 |
31.0 |
11 |
SIZE C |
Internal |
|
VFD500-015G/018PT4B |
21 |
35.0 |
32.0 |
37.0 |
15 |
||
|
VFD500-018G/022PT4B |
24 |
38.5 |
37.0 |
45.0 |
18.5 |
SIZE D |
|
|
VFD500-022G/030PT4B |
30 |
46.5 |
45.0 |
57.0 |
22 |
||
|
VFD500-030G/037PT4 |
40 |
62.0 |
60.0 |
75.0 |
30 |
SIZE E |
option |
|
VFD500-037G/045PT4 |
50 |
76.0 |
75.0 |
87.0 |
37 |
||
|
VFD500-045G/055PT4 |
60 |
92.0 |
90.0 |
110.0 |
45 |
SIZE F |
|
|
VFD500-055G/075PT4 |
75 |
113.0 |
110.0 |
135.0 |
55 |
||
|
VFD500-075G/090PT4 |
104 |
157.0 |
152.0 |
165.0 |
75 |
SIZE G |
|
|
VFD500-090G/110PT4 |
112 |
170.0 |
176.0 |
210.0 |
90 |
External |
|
|
VFD500-110G/132PT4 |
145 |
220.0 |
210.0 |
253.0 |
110 |
SIZE H |
|
|
VFD500-132G/160PT4 |
170 |
258.0 |
253.0 |
304.0 |
132 |
SIZE I |
|
|
VFD500-160G/185PT4 |
210 |
320.0 |
304.0 |
360.0 |
160 |
||
|
VFD500-185G/200PT4 |
245 |
372.0 |
360.0 |
380.0 |
185 |
SIZE J |
|
|
VFD500-200G/220PT4 |
250 |
380.0 |
380.0 |
426.0 |
200 |
||
|
VFD500-220G/250PT4 |
280 |
425.0 |
426.0 |
465.0 |
220 |
SIZE K |
|
|
VFD500-250G/280PT4 |
315 |
479.0 |
465.0 |
520.0 |
250 |
||
|
VFD500-280G/315PT4 |
350 |
532.0 |
520.0 |
585.0 |
280 |
SIZE L |
|
|
VFD500-315G/355PT4 |
385 |
585.0 |
585.0 |
650.0 |
315 |
||
|
VFD500-355G/400PT4 |
420 |
638.0 |
650.0 |
725.0 |
355 |
SIZE M |
|
|
VFD500-400G/450PT4 |
470 |
714.0 |
725.0 |
820.0 |
400 |
||
|
VFD500-450G/500PT4 |
530 |
800.0 |
820.0 |
/ |
450 |
SIZE N |
|
|
VFD500-500G/560PT4 |
580 |
880.0 |
900.0 |
/ |
500 |
||
|
VFD500-560G/630PT4 |
630 |
950.0 |
980.0 |
/ |
560 |
SIZE O |
|
|
VFD500-630GT4 |
710 |
1080 |
1120. |
/ |
630 |
SIZE O |
|
|
VFD500-710GT4 |
790 |
1200 |
1260 |
/ |
710 |
SIZE O |
|
|
Single phase: 220V, 50/60HZ |
|||||||
|
VFD500-R40GS2 |
1.3 |
6.0 |
3.2 |
5.6 |
0.4 |
SIZE A |
Inbuilt |
|
VFD500-R75GS2 |
2.4 |
11.0 |
5.6 |
8.0 |
0.75 |
SIZE A |
|
|
VFD500-1R5GS2 |
3.5 |
15.0 |
8.0 |
10.6 |
1.5 |
SIZE A |
|
|
VFD500-2R2GS2 |
5.5 |
25.0 |
10.6 |
14.0 |
2.2 |
SIZE A |
|
|
VFD500-4R0GS2 |
7.7 |
35.0 |
17.0 |
23.0 |
4.0 |
SIZE B |
|
|
VFD500-5R5GS2 |
8.9 |
53.0 |
25.0 |
31.0 |
5.5 |
SIZE C |
|
|
VFD500-7R5GS2 |
11 |
67.0 |
32.0 |
37.0 |
7.5 |
SIZE C |
|
Product Application
FAQ:
1. What voltage range can you support?
Single-phase 220v input, single-phase 220v output;
Single-phase 220v input, three-phase 220v output;
Three-phase 220v input, three-phase 220v output;
Single-phase 220v input, three-phase 380v output;
2. What is the standard of package?
Below 37kw, it's carton package; 45kw and above, it's wooden package.
3. Do you accept OEM business?
We accept OEM and ODM with your autherization.
