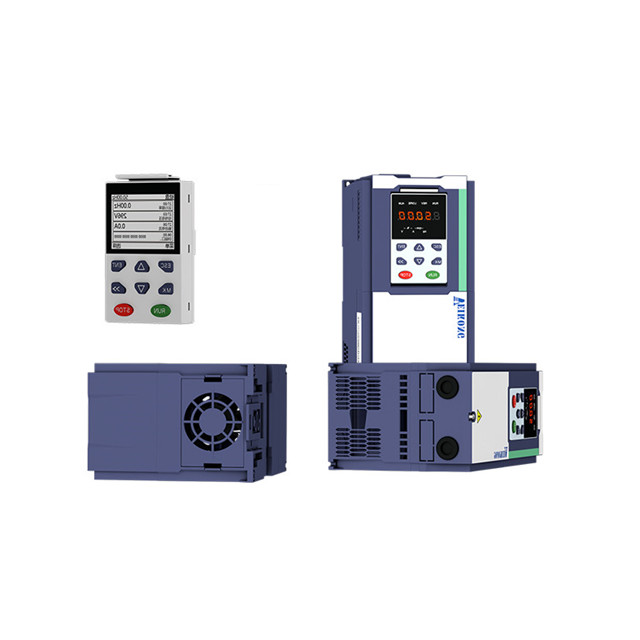

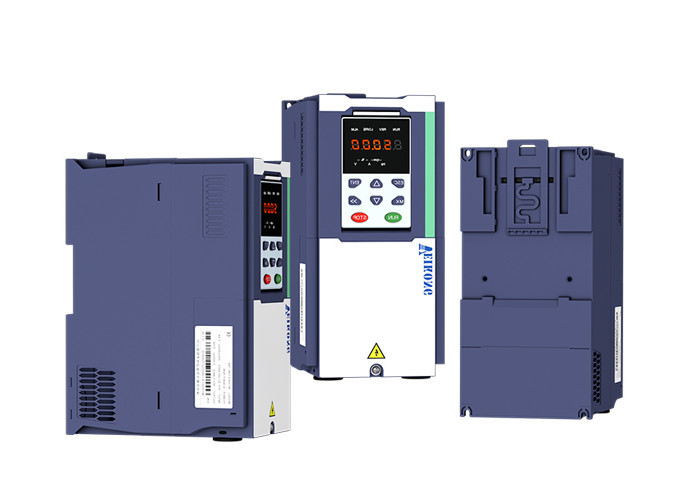

Multi Step Speed Function VFD Variable Frequency Drive For Various Applications
| Place of Origin | China |
|---|---|
| Brand Name | VEIKONG |
| Certification | CE IEC |
| Model Number | VFD500 |
| Minimum Order Quantity | 24 pcs |
| Price | negotiable |
| Packaging Details | paper carton under 45kw, starting from 45kw wooden case for packing |
| Delivery Time | 3-8 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 15000 per/ month |
Product Details
| Special Function | Multi Step Speed | Product Warranty Period | 18 Months Free Technical Support |
|---|---|---|---|
| Working Efficiency | Very Good | Brand Name | Veikong |
| Voltage Range | 380V-480V | Product | Variable Frequency Inverters |
| High Light | Multi Step VFD Variable Frequency Drive,Multi Speed VFD Variable Frequency Drive,compact variable frequency inverters |
||
Product Description
Multi Step Speed Function VFD Variable Frequency Drive For Various Applications
1. Product features of VEIKONG VFD500 series(best seller)
1) New design with core compact size for shipping and installation, save more cost for you
2) It's multifunctional and user friendly with many excellent practical functions like deceleration over excitation; undervoltage stall function; excellent speed tracking etc
3) This model adopts excellent SVC algorithm to make sure stable operation in power generation
2. Veikong VFD500 series General Technical Data For Reference
| Type | Terminal symbol | Terminal name | Terminal function description |
| Analog input voltage | +10V | Input voltage | 10.10V±1% |
| Analog input voltage | +10V | Input voltage | Maximum output current:10mA,it provides power supply to external potentiometer with resistance range of:1KΩ~51KΩ |
| Analog input voltage | GND | Ananog ground | Internal isolation from COM |
| Analog input voltage |
AI1 |
Analog input1 | Input voltage:0~10V:Impedance 22KΩ,Maximum input voltage |
| Analog input voltage | AI1 | Analog input1 | Input current:0~20mA:Impedance 500Ω,Maximum input current |
| Analog input voltage | AI1 | Analog input1 | Through the jumper switch AI1 0 ~ 10V and 0 ~ 20mA analog input switch, the factory default voltage input |
| Analog input voltage | AI2 | Analog input 2 | Input voltage:0~10V:Impedance 22KΩ,Maximum input voltage |
| Analog input voltage | AI2 | Analog input 2 | Input current:0~20mA:Impedance 500Ω,Maximum input current |
| Analog input voltage | AI2 | Analog input 2 | Through the jumper switch AI1 0 ~ 10V and 0 ~ 20mA analog input switch, the factory default voltage input |
| Analog input | AO1 | Analog output 1 | Output voltage:0~10V:Impedance ≥10KΩ |
| Analog input | AO1 | Analog output 1 | Output current:0~20mA:Impedance 200Ω~500Ω |
| Analog input | AO1 | Analog output 1 | Through the jumper switch AO1 0 ~ 10V and 0 ~ 20mA analog output switching, the factory default voltage output |
| Analog input | AO2 | Analog output 2 | Output voltage:0~10V:Impedance ≥10KΩ |
| Analog input | AO2 | Analog output 2 | Output current:0~20mA:Impedance 200Ω~500Ω |
| Analog input | AO2 | Analog output 2 | Through the jumper switch AO1 0 ~ 10V and 0 ~ 20mA analog output switching, the factory default voltage output. |
| Analog input | GND | Ananog ground | Internal isolation from COM |
2. The latest feedback from clients about Veikong VFD500 series all over the world
4. Product User Manual and Porduct Brochure Download Center
VEIKONG VFD500 high performance vector and torque ...
5. The brief introduction of company info
Shenzhen Veikong Electric CO.,Ltd. a high-tech enterprise which has been specializing in researching, manufacturing and trading high, medium and low voltage inverter, providing our clients with integrated system solutions.
We have professional R&D and devoted management team with more than 20 years' experience of theoretical research, product development and quality management.
Veikong also is one of the first independent AC drives company in China. We adopt SPWM, sensorless vector control and vector and torque control technology in our VFD series inverters, which has reached the international advanced standard.
The products can directly replace and be equivalent of Europe and the United States, Japan and other brands, providing customers with a powerful technical support. We have achieved popularity and qualification in VFD industry.
Quality is the life of enterprise!
Veikong, your trusted supplier!
