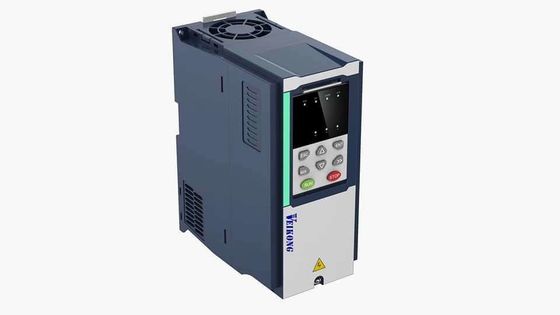

18.5KW 380V PLC Control Variable Frequency Inverter VSD AC Motor Drive Controller
| Place of Origin | China |
|---|---|
| Brand Name | VEIKONG |
| Certification | CE IEC |
| Model Number | VFD500-PV |
| Minimum Order Quantity | 25 pcs |
| Price | negotiable |
| Packaging Details | paper carton under 45kw, starting from 45kw wooden case for packing |
| Delivery Time | 7-8 working days based on quantity |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 15490 per/ month |
Product Details
| Power | 18.5KW | Frequency | 50/60hz |
|---|---|---|---|
| Current | 37A | Voltage | 380V |
| Warranty | 18months | OEM | Yes |
| Material | Plastic And Mental | ||
| High Light | 18.5KW Variable Frequency Inverter,PLC Control Variable Frequency Inverter,VSD AC Motor Drive Controller |
||
Product Description
18.5KW 380V PLC Control Variable Frequency Inverter VSD AC Motor Drive Controller
1. Main features of VEIKONG VFD500
1. Independent duct design, high quality cooling fan sinks the heat through the duct, prevents dust entering into PCB.
2. High speed accuracy and wide speed range.The inverter can run stably.
3. Big torque in low frequency, especially suitable for heavy duty industries.
4. Fast response to impact loads.
5. Three control modes:V/F, SVC, VC
6. Excellent SVC algorithm, stable operation in power generation..
7. Deceleration over exitation function.
8. Under voltage stall function
9. Thermal simulation testing platform.
10. Strict temperature rise test. It could run in hot areas and regions.
11. Complete protection with conformal coating.
12. IO expansion function.
13. Powerful debugging software.
14. Powerful internal logic.
15. Excellent speed tracking.
16. Max.710KW power.
2. Veikong VFD500 series General Technical Data For Reference
| Item | Specification | |
| Function | Keypad | LED and LCD for optional |
| communication | Standard: MODBUS communication Option:Profibus-DP and CAN OPEN | |
| PG card | Incremental Encoder Interface Card (Differential Output and Open Collector), Rotary transformer Card | |
| Input terminal | standard: 5 digital input terminals, one of which supports high speed pulse input up to 50kHz; 2 analog input terminals, support 0 ~ 10V voltage input or 0 ~ 20mA current input; Option card: 4 digital input terminals 2 analog input terminals.support-10V-+10V voltage input | |
| Output terminal | standard: 1 digital output terminal; 1 high-speed pulse output terminal (open collector type), support 0 ~ 50kHz square wave signal output; 1 relay output terminal 2 analog output terminals, support 0 ~ 20mA current output or 0 ~ 10V voltage output; Option card: 4 digital output terminal | |
3. The factory environment and manufacturing and testing process here
Veikong pay much attention to the manufacturing process and environment, each process of testing and producing have been monitored by professional workers here. Veikong, your trusted supplier!

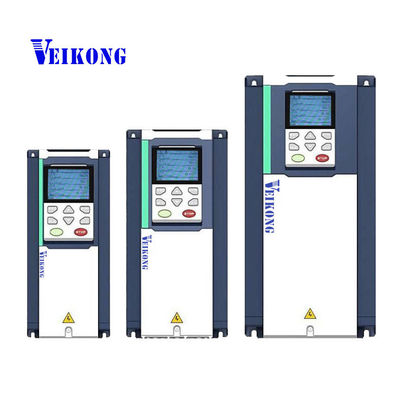

4. Veikong variable frequency controllers product images
