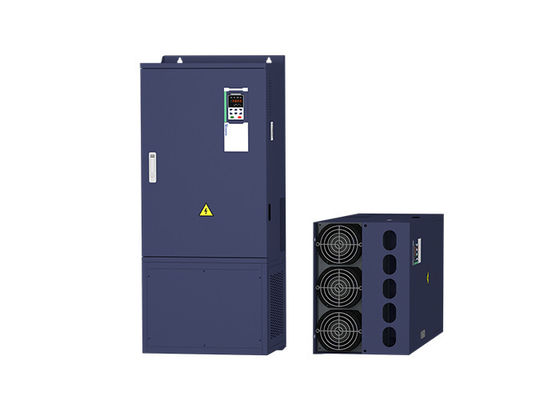

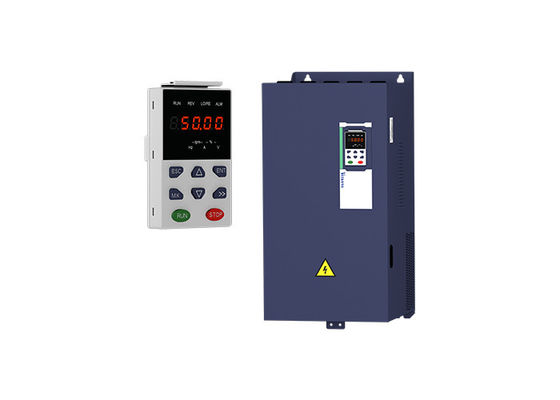

CE VFD Variable Frequency Drive For Three Phase Motor 0.75kw - 500kw

Place of Origin	China
Brand Name	VEIKONG
Certification	CE IEC
Model Number	VFD500-PV
Minimum Order Quantity	25 pcs
Price	negotiable
Packaging Details	paper carton under 45kw, starting from 45kw wooden case for packing
Delivery Time	7-8 working days based on quantity
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	15490 per/ month

Product Details

Power	0.75kw-500kw	Phase	Single/three Phase
Frequency	50/60hz	Voltage	380V/220V
Color	Blue And White	Warranty	18months
Standard	CE
High Light	IEC VFD Variable Frequency Drive , CE VFD frequency inverter , Motor VFD frequency inverter

Product Description

Variable Frequency Drive for three phase motor AC drive VFD frequency inverter

1. FAQ

1. who are we?
We are based in Shenzhen, China, start from 2012, sell to Africa(32.00%),Mid East(30.00%),Domestic Market(15.00%),Southeast Asia(15.00%),North America(2.00%),Western Europe(2.00%),Eastern Europe(2.00%),Northern Europe(2.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Solar pump inverter and Variable frequency inverter (VFD, VSD,AC motor drive)

2. Veikong VFD500 series General Technical Data For Reference

Type	Terminal symbol	Terminal name	Terminal function description
Analog input voltage	+10V	Input voltage	10.10V±1%
Analog input voltage	+10V	Input voltage	Maximum output current:10mA,it provides power supply to external potentiometer with resistance range of:1KΩ~51KΩ
Analog input voltage	GND	Ananog ground	Internal isolation from COM
Analog input voltage	AI1	Analog input1	Input voltage:0~10V:Impedance 22KΩ,Maximum input voltage
Analog input voltage	AI1	Analog input1	Input current:0~20mA:Impedance 500Ω,Maximum input current
Analog input voltage	AI1	Analog input1	Through the jumper switch AI1 0 ~ 10V and 0 ~ 20mA analog input switch, the factory default voltage input
Analog input voltage	AI2	Analog input 2	Input voltage:0~10V:Impedance 22KΩ,Maximum input voltage
Analog input voltage	AI2	Analog input 2	Input current:0~20mA:Impedance 500Ω,Maximum input current
Analog input voltage	AI2	Analog input 2	Through the jumper switch AI1 0 ~ 10V and 0 ~ 20mA analog input switch, the factory default voltage input
Analog input	AO1	Analog output 1	Output voltage:0~10V:Impedance ≥10KΩ
Analog input	AO1	Analog output 1	Output current:0~20mA:Impedance 200Ω~500Ω
Analog input	AO1	Analog output 1	Through the jumper switch AO1 0 ~ 10V and 0 ~ 20mA analog output switching, the factory default voltage output
Analog input	AO2	Analog output 2	Output voltage:0~10V:Impedance ≥10KΩ
Analog input	AO2	Analog output 2	Output current:0~20mA:Impedance 200Ω~500Ω
Analog input	AO2	Analog output 2	Through the jumper switch AO1 0 ~ 10V and 0 ~ 20mA analog output switching, the factory default voltage output.
Analog input	GND	Ananog ground	Internal isolation from COM
