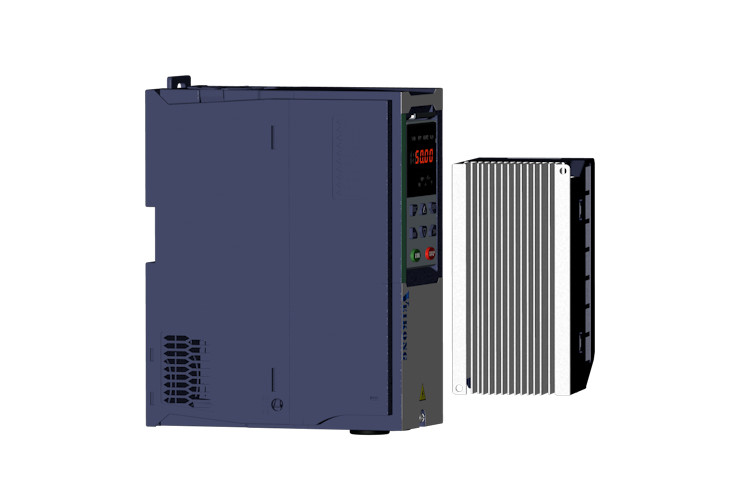

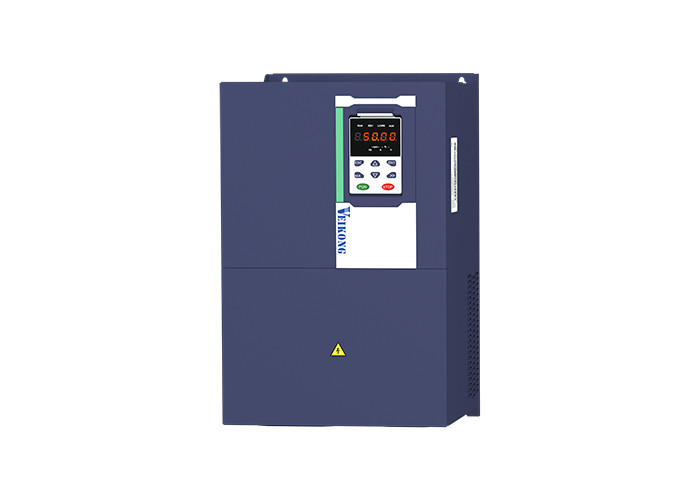

Precision Control VFD Variable Frequency Drive Compatible For PM / IM
Place of Origin China
Brand Name VEIKONG
Certification CE IEC
Model Number VFD500
Minimum Order Quantity 24 pcs
Price negotiable
Packaging Details paper carton under 45kw, starting from 45kw wooden case for packing
Delivery Time 3-8 working days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15000 per/ month
Product Details
Applicable Motors Synchronous And Asynchronous Motor Auto Tune Mode Encoder Auto Tune
Relay 2 Replay Outputs Starting Torque 200% At 0HZ
Warranty 18 Months Product Series Veikong VFD530 Series
High Light

Precision Control VFD Variable Frequency Drive

,

PM VFD Variable Frequency Drive

Product Description

Precision Control VFD Variable Frequency Drive Compatible For PM and IM



1. Veikong VFD530 series high performance precision control AC drives

Power range for reference:

1 phase 200 or 240V 50 or 60HZ from 0.75 to 7.5kw

3 phase 200 or 240V 50 or 60HZ from 0.75 to 75kw

3 phase 380 or 480V 50 or 60HZ from 0.75 to 710kw



1) Special brake logic mechanism for crane and hoist

2) Magnetic flux brake gain

3) Output frequency up to 3000HZ

4) High capacity 256K TI DSP with faster response and higher accuracy

5) Encoder auto tune

6) 2 PID loop for HVAC

7) 2 relay output



2. Veikong VFD530 series power range and current output for reference

Power Size(KW) Model Output current
0.75KW VFD530-R75GT4B 2.5A
1.5KW VFD530-1R5GT4B 4.2A
2.2KW VFD530-2R2GT4B 5.6A
4KW VFD530-4R0G/5R5PT4B 9.4A
5.5KW VFD530-5R5G/7R5PT4B 13A
7.5KW VFD530-7R5G/011PT4B 17A
11KW VFD530-011G/015PT4B 25A
15KW VFD530-015G/018PT4B 32A
18.5KW VFD530-018G/022PT4B 37A
22KW VFD530-022G/030PT4B 45A
30KW VFD530-030G/037PT4 60A
37KW VFD530-037G/045PT4 75A
45KW VFD530-045G/055PT4 90A
55KW VFD530-055G/075PT4 110A
75KW VFD530-075G/090PT4 152A
90KW VFD530-090G/110PT4 176A
110KW VFD530-110G/132PT4 210A
132KW VFD530-132G/160PT4 253A
160KW VFD530-160G/185PT4 304A
185KW VFD530-185G/200PT4 340A
200KW VFD530-200G/220PT4 377A
220KW VFD530-220G/250PT4 426A
250KW VFD530-250G/280PT4 465A
280KW VFD530-280G/315PT4 520A
315KW VFD530-315G/355PT4 585A
355KW VFD530-355G/400PT4 650A
400KW VFD530-400G/450PT4 725A
450KW VFD530-450G/500PT4 820A
500KW VFD530-500G/560PT4 900A
560KW VFD530-560G/630PT4 980A
630KW VFD530-630GT4 1120A
710KW VFD530-710GT4 1260A



3. Veikong VFD530 series special brake logic for lifting function

1) Control circuit wiring Please pay attention to the following matters when wiring: DI3 is brake feedback, if the brake has no feedback, you don’t need to connect Relay 1 is fault signal output, and relay 2 is brake control signal output.

Precision Control VFD Variable Frequency Drive Compatible For PM / IM

2) Confirm the direction of motor rotation After confirming the surrounding safety, manually make the brake in the released state, press the "MK" key on the keyboard, and observe whether the direction of the motor is correct: forward transmission upwards, reverse downwards. If the direction of the motor is wrong, reverse any two connections of U, V, W.

3) Setting motor’s parameters Set following parameters according to the motor’s nameplate

Precision Control VFD Variable Frequency Drive Compatible For PM / IM

4) Motor self-learning 5,Open loop self-learning Set the motor parameters, if it is encoder closed-loop control, set the following encoder parameters

Precision Control VFD Variable Frequency Drive Compatible For PM / IM

5) Lifting adjustment

Precision Control VFD Variable Frequency Drive Compatible For PM / IM





4. VFD530 series User Manual and Porduct Brochure Download

VEIKONG VFD530 HP AC DRIVE USER MANUAL V1.0.pdf



5. Veikong company brief introduction

Veikong is a professional VFD manufacturer in China for more than 20 years with strong R&D groups and high-standard products and service. Most clients who use European brands began to use Veikong in some special fields like air compressor, construction lifting and textile industry etc. We also receive many nice feedback from our clients, and we do believe that we can go along with customers better and keep providing higher standard products and service for all of you!

Veikong, your trusted supplier~
