Mini IP20 VFD Frequency Inverter 220V 380V 0.4KW To 7.5KW For AC Motor
| Place of Origin | China |
|---|---|
| Brand Name | VEIKONG |
| Certification | CE |
| Model Number | VFD500M |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | Carton and Wooden Box |
| Delivery Time | 3 days, depend on the order quantity |
| Payment Terms | Western Union, T/T, L/C, D/A, D/P, PayPal |
| Supply Ability | 15000pcs per Month |
Product Details
| Product Name | 220V 380V 0.4KW To 7.5KW VFD | Voltage | 220V And 380V |
|---|---|---|---|
| Warranty | 18 Months | Frequency | 50/60HZ |
| Communication | RS485 | Input Type | Three Phase |
| High Light | IP20 VFD Frequency Inverter,AC Motor VFD Frequency Inverter,Mini VEIKONG solar pump inverter |
||
Product Description

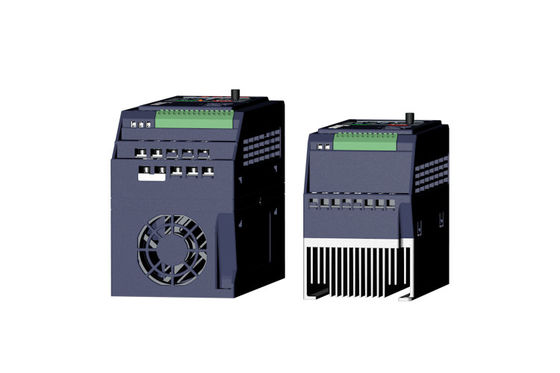

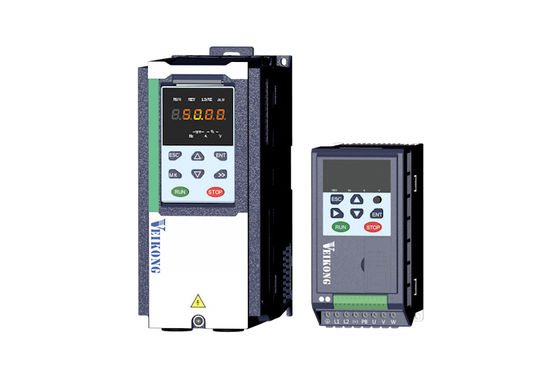

Mini IP20 220V 380V 0.4KW To 7.5KW VFD Frequency Inverter For AC Motor
VFD500M Series Features and Functions
1 phase 200V/240V: 0.4KW-4KW
3 phase 200V/240V: 0.4KW-4KW
3 phase 380V/480V: 0.75KW-7.5KW
1. Vector control and V/F control
2. Motor Auto-tune (static and dynamic)
3. Modbus RTU / RS485 built in
4. Tension control and torque mode control
5. External LED/LCD and shuttle keypad optional
6. Up to 200% starting torque at 0hz
7. 18 months warranty
8. Vector control and V/F control
9. Output frequency up to 2000hz
Model Range
|
Model |
Power capacity (KVA) |
Input current (A) |
Output current(A) |
Adaptable Motor (KW) |
SIZE |
Brake Unit |
|
|
Heavy load |
Light load |
||||||
|
3 phase: 380V-480V,50/60Hz |
|||||||
|
VFD500M-R75GT4B |
1.6 |
3.2 |
2.5 |
4.2 |
0.75 |
SIZE B |
Internal |
|
VFD500M-1R5GT4B |
2.8 |
4.7 |
4.2 |
5.6 |
1.5 |
||
|
VFD500M-2R2GT4B |
3.7 |
7.8 |
5.6 |
9.4 |
2.2 |
||
|
VFD500M-4R0GT4B |
6.2 |
11.6 |
9.4 |
10.5 |
3.7 |
||
|
VFD500M-5R5GT4B |
8.6 |
15.6 |
13.0 |
17.0 |
5.5 |
SIZE C |
Internal |
|
VFD500M-7R5GT4B |
11.2 |
20.5 |
17.0 |
23.0 |
7.5 |
||
|
1 phase: 200-240V,50/60Hz |
|||||||
|
VFD500M-R40GS2B |
1.2 |
6.9 |
2.8 |
3.2 |
0.4 |
SIZEA |
Internal |
|
VFD500M-R75GS2B |
2.1 |
12.2 |
4.5 |
4.8 |
0.75 |
||
|
VFD500M-1R5GS2B |
3.1 |
17.0 |
8.0 |
10.6 |
1.5 |
SIZEB |
|
|
VFD500M-2R2GS2B |
4.1 |
21.0 |
10.6 |
12.5 |
2.2 |
||
|
3 phase: 200V-240V,50/60Hz |
|||||||
|
VFD500M-R40GT2B |
1.2 |
4 |
2.8 |
3.2 |
0.4 |
Size B
|
Internal |
|
VFD500M-R75GT2B |
2.1 |
7.1 |
4.5 |
4.8 |
0.75 |
||
|
VFD500M-1R5GT2B |
3.1 |
11.3 |
8.0 |
10.6 |
1.5 |
||
|
VFD500M-2R2GT2B |
4.1 |
14.5 |
10.6 |
12.5 |
2.2 |
||
Product Application
FAQ:
1. How to choose suitable VFD for my machine?
Please send us your machine details, we will provide you most suitable model type.
2. Do you support OEM service?
Yes, we support OEM and ODM.
3. What is your market?
We export to the South America, Europe, India, the Middle East, Asia, Africa, etcs.
