AC Motor VFD Frequency Inverter Mini IP20 380V - 480V RS485 Communication
| Place of Origin | China |
|---|---|
| Brand Name | VEIKONG |
| Certification | CE |
| Model Number | VFD500M |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | Carton and Wooden Box |
| Delivery Time | 3 days, depend on the order quantity |
| Payment Terms | Western Union, T/T, L/C, D/A, D/P, PayPal |
| Supply Ability | 15000pcs per Month |
Product Details
| Product Name | 380V 2.2KW 4KW 5.5KW 7.5KW VFD | Voltage | 380V-480V |
|---|---|---|---|
| Colar | Blue | Frequency | 50/60HZ |
| Communication | RS485 | Input Type | Three Phase |
| High Light | RS485 VFD Frequency Inverter,Three phase VFD Frequency Inverter,AC Motor Veikong Solar Pump Inverter |
||
Product Description

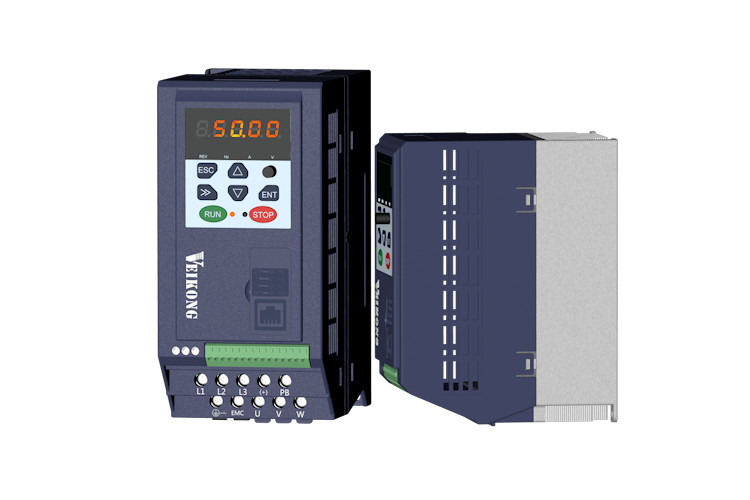

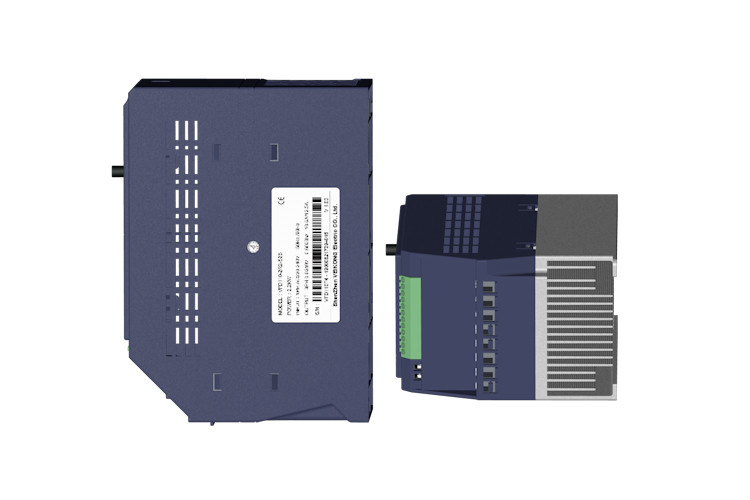

Mini IP20 380V 2.2KW 4KW 5.5KW 7.5KW VFD Frequency Inverter For AC Motor
VFD500M Series Features and Functions
1 phase 200V/240V: 0.4KW-4KW
3 phase 200V/240V: 0.4KW-4KW
3 phase 380V/480V: 0.75KW-7.5KW
1. Spring terminal
2. 5 Digital inputs
3. 2 AI and AO
4. Modbus RTU/RS485 built in
5. Integral C3 filter
6. CE and RoHs Marked
7. 18 months warranty
8. Vector control and V/F control
9. Output frequency up to 2000hz
Model Range
|
Model |
Power capacity (KVA) |
Input current (A) |
Output current(A) |
Adaptable Motor (KW) |
SIZE |
Brake Unit |
|
|
Heavy load |
Light load |
||||||
|
3 phase: 380V-480V,50/60Hz |
|||||||
|
VFD500M-R75GT4B |
1.6 |
3.2 |
2.5 |
4.2 |
0.75 |
SIZE B |
Internal |
|
VFD500M-1R5GT4B |
2.8 |
4.7 |
4.2 |
5.6 |
1.5 |
||
|
VFD500M-2R2GT4B |
3.7 |
7.8 |
5.6 |
9.4 |
2.2 |
||
|
VFD500M-4R0GT4B |
6.2 |
11.6 |
9.4 |
10.5 |
3.7 |
||
|
VFD500M-5R5GT4B |
8.6 |
15.6 |
13.0 |
17.0 |
5.5 |
SIZE C |
Internal |
|
VFD500M-7R5GT4B |
11.2 |
20.5 |
17.0 |
23.0 |
7.5 |
||
|
1 phase: 200-240V,50/60Hz |
|||||||
|
VFD500M-R40GS2B |
1.2 |
6.9 |
2.8 |
3.2 |
0.4 |
SIZEA |
Internal |
|
VFD500M-R75GS2B |
2.1 |
12.2 |
4.5 |
4.8 |
0.75 |
||
|
VFD500M-1R5GS2B |
3.1 |
17.0 |
8.0 |
10.6 |
1.5 |
SIZEB |
|
|
VFD500M-2R2GS2B |
4.1 |
21.0 |
10.6 |
12.5 |
2.2 |
||
|
3 phase: 200V-240V,50/60Hz |
|||||||
|
VFD500M-R40GT2B |
1.2 |
4 |
2.8 |
3.2 |
0.4 |
Size B
|
Internal |
|
VFD500M-R75GT2B |
2.1 |
7.1 |
4.5 |
4.8 |
0.75 |
||
|
VFD500M-1R5GT2B |
3.1 |
11.3 |
8.0 |
10.6 |
1.5 |
||
|
VFD500M-2R2GT2B |
4.1 |
14.5 |
10.6 |
12.5 |
2.2 |
||
Product Application
FAQ:
1. How to choose suitable VFD for my machine?
Please send us your machine details, we will provide you most suitable model type.
2. Do you support OEM service?
Yes, we support OEM and ODM.
3. What is your market?
We export to the South America, Europe, India, the Middle East, Asia, Africa, etcs.
