Mini VFD Variable Frequency Drive Low Voltage Economic Style AC Motor Drive

Place of Origin	China
Brand Name	VEIKONG
Certification	CE IEC
Model Number	VFD500M
Minimum Order Quantity	28pcs
Price	negotiable
Packaging Details	paper carton under 45kw, starting from 45kw wooden case for packing
Delivery Time	3-8 working days
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	15000 per/ month

Product Details

Product Style	VFD500M Mini VFD	Voltage Range	200-240V 380-440V
Machine Frequency	50 Or 60HZ Up To 2000HZ	Color	Dark Blue
Warranty Period	18 Months	Brand	Veikong
High Light	Mini VFD Variable Frequency Drive , AC Motor VFD Variable Frequency Drive , 440V AC Motor Drive

Product Description

Mini VFD Variable Frequency Drive Low Voltage Economic Style AC Motor Drive

1. Veikong VFD500M series economical high performance general purpose AC drives

A. The power range: 1 phase 200/240V 50/60HZ 0.4-4kw 3 phase 200/240V 50/60HZ 0.4-4kw 3 phase 380/480V 50/60HZ 0.75-7.5KW

B. Vector control and V/F control for options

C. Tension control and torque mode control optional

D. Up to 200% starting turque at 0HZ and output frequency up to 2000hz

E. Comparator and logic unit or controller and programmable delay unit functions

2. VFD500M technical specification sheet

Item		Specification
Input	Input voltage	1phase/3phase 220V:200V～240V 3 phase 380V-480V:380V～480V
	Allowed voltage fluctuation range	-15%～10%
	Input frequency	50Hz / 60Hz,fluctuation less than 5%
Output	Output voltage	1/3phase:0～input voltage
Output	Output capacity	General purpose application:60S for 150% of the rated current Light load application:60S for 120% of the rated current
Function	Keypad	LED Digital keypad and LCD keypad(option)and external LED display
	communication	Standard: MODBUS communication
	Input terminal	Size A:4 digital input terminals and 1 analog input terminals Size B:5 digital input terminals,one of which supports high-speed pulse input up to 50kHz;2 analog input terminalssupport 0 ~ 10V voltage input or 0 ~ 20mA current input;
	Output terminal	Size A 1 digital output terminal; 1 relay output terminal(Support NO only ) 1 analog output terminals, support 0 ~ 20mA current output or 0 ~ 10V voltage output; Size B 1 digital output terminal; 1 high-speed pulse output terminal (open collector type), support 0 ~ 50kHz square wave signal output; 1 relay output terminal(SUPPORT NO AND NC) 1 analog output terminals, support 0 ~ 20mA current output or 0 ~ 10V voltage output;

3. Why choose us Veikong?

A. Veikong has its own R&D groups who devoted much time and energy in upgrading software and providing better technical support for clients

B. Veikong will provide you 18 months warranty, which means once you receive it, we will be responsible for problems happened during this period, even the components went something wrong, we will send out new ones to replace as your proposal.

C. Veikong products have replaced many nice brands in different countries, and they also approved that ours efficiency can reach up to the high standard as European brands in some applications. For example, Veikong products can be used well in textile industry and compressor etc.

D. Veikong with not only nice technical groups but also mature and practical sales teams who can help you expand your market step by step. Till now, we have developed many distributors around the world and help them establish a good market in local places.

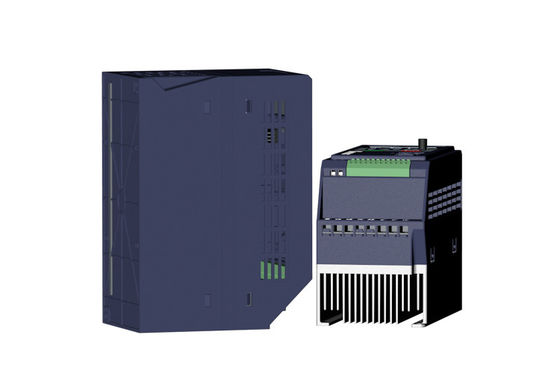

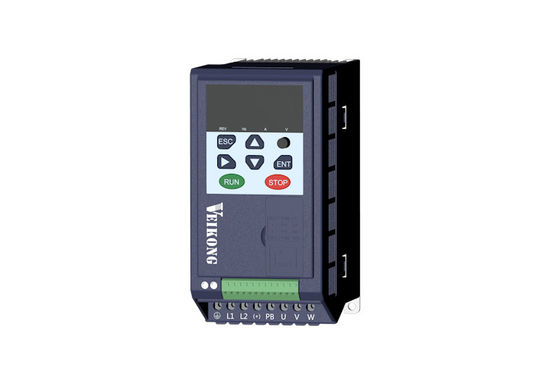

4. Product detailed pics
