White VFD Variable Frequency Drive 380V Three Phase / 200V Single Phase Out
| Place of Origin | China |
|---|---|
| Brand Name | VEIKONG |
| Certification | CE IEC |
| Model Number | VFD200A |
| Minimum Order Quantity | 28 pcs |
| Price | negotiable |
| Packaging Details | paper carton under 45kw, starting from 45kw wooden case for packing |
| Delivery Time | 3-8 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 15000 per/ month |
Product Details
| Color | White | Special | 380V Three Phase In And 200V Single Phase Out |
|---|---|---|---|
| Product Type | VFD VSD | Frequency Range | 50 Or 60HZ |
| Warranty | 18 Months | Product | Variable Frequency Inverters |
| High Light | white VFD Variable Frequency Drive,VF control VFD Variable Frequency Drive,VFD VSD variable frequency inverters |
||
Product Description
380V Three Phase In And 220V Single Phase Out VFD Variable Frequency Drive
1. Veikong VFD200A series Technical Specification
| Item | Specification | |
| Standard function | Maximum frequency | Vector control:0-500hz VF control:0-500hz |
| Carrier frequency | 0.5khz-16khz(The carrier frequency is automatically adjusted based on the load features) | |
| Input frequency resolution |
Digital setting:0.01hz Analog setting: maximum frequency x0.025% |
|
| Control mode |
Sensor-less flux vector control(SFVC) Closed-loop vector control(CLVC)(+PG card) Voltage/Frequency (VF) control |
|
| Startup torque | 0.5hz/150%(SVC) 0HZ/180%(FVC) | |
| Speed range | 1:100(SVC) 1:1000(FVC) | |
| Speed stability accuracy | +-0.5%(SVC) +-0.02%(FVC) | |
| Torque control accuracy | +-5%(FVC) | |
| Overload capacity |
G type:60s for 150% of the rated current, 3s for 180% of the rated current P type:60s for 120% of the rated current. 3s for 150% of the rated current |
|
| Torque boost |
Auto boost: Manual boost: 0.1%-30% |
|
| VF curve |
Straught line: VF curve Multi point VF curve N power VF curve(1.2power 1.4power 1.6power 1.8power square) |
|
| VF separation | 2 types: complete separation, half separation | |
| Acceleration/ deceleration curve |
straight line ramp s curve ramp four groups of acceleration/deceleration time with the range of 0s-65000s |
|
| DC braking |
DC braking frequency 0HZ-maximum frequency Braking time: 0-100s Braking trigger current value:0%-100% |
|
| JOG control |
JOG frequency range 0-50hz JOG acceleration/deceleration time 0-6500s |
|
| Built in PLC, multiple speeds | It realizes up to 16 speeds via the simple PLC function or combination of DI terminal states | |
| Built in PID | It realizes closed loop control system easily | |
| Auto voltage regulation(AVR) | It can keep constant output voltage automaticaly when the main voltage fluctuation. | |
| Overvoltage/ Over current stall control | The current and voltage are limited automatically during the running process so as to avoid frequently tripping due to overvoltage/ over current | |
| Rapid current limit function | It can auto limit running current of frequency inverter to avoid frequently trpping | |
| Torque limit and control |
(Excavator characteristics) It can limit the torque automatically and prevent frequently over current tripping during the running process. Torque control can be implemented in the VC mode. |
|
2. Veikong Company introduction
Veikong is a high tech enterprise located in Shenzhen China and we are a professional VFD manufacturer in China for more than 20 years. Each year, Veikong would adopt 40% of the income to invest in our Rearch and Develop department to improve our product and upgrade the software to provide better quality products and nicer technical support for our clients.
Nowadays, we are helping our clients expand their maket step by step and help them establish a good business mode in their local market and then spread Veikong products to nearly all of the corner in the world.

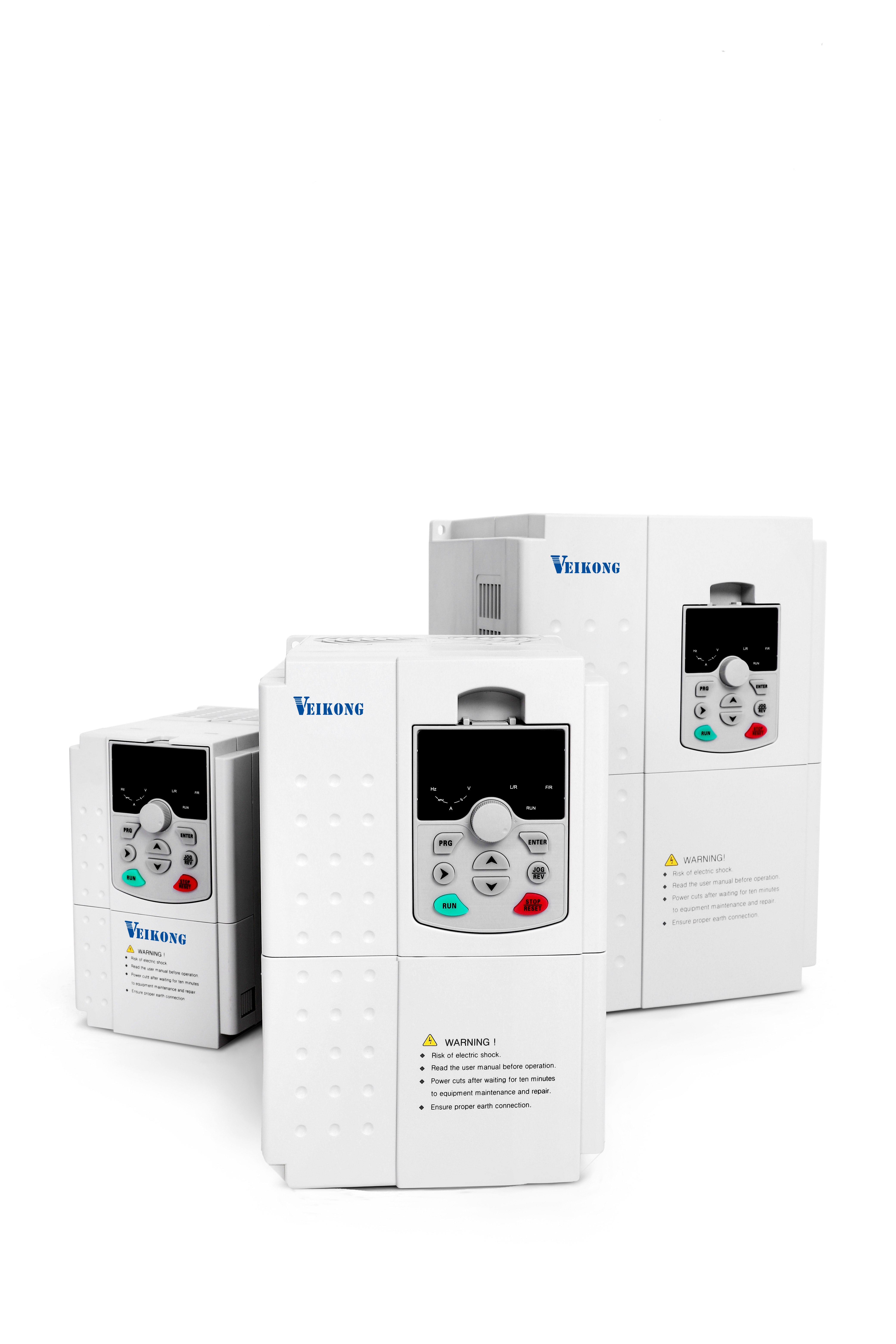

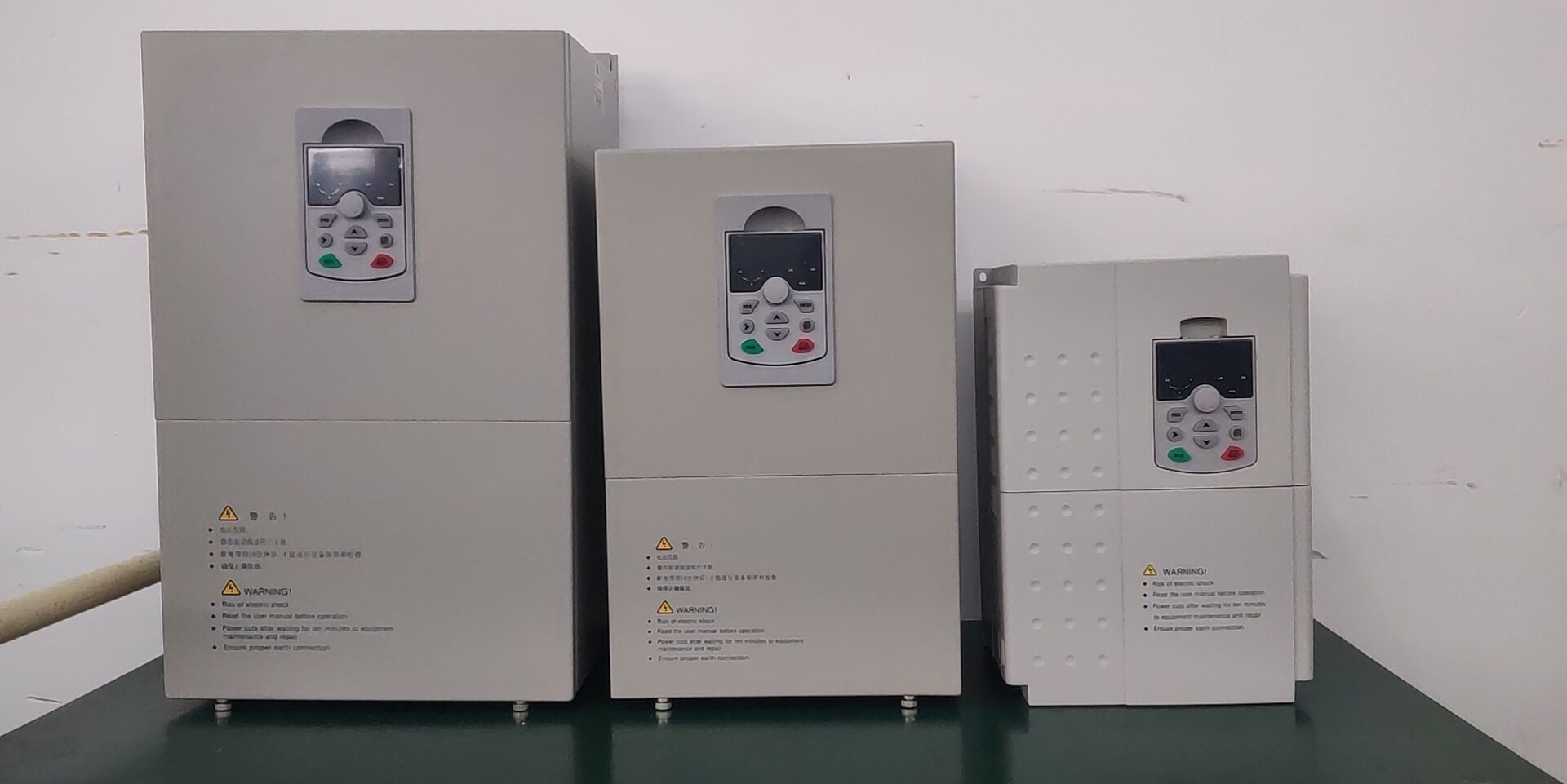

3. There are some products pictures of VFD200A series
