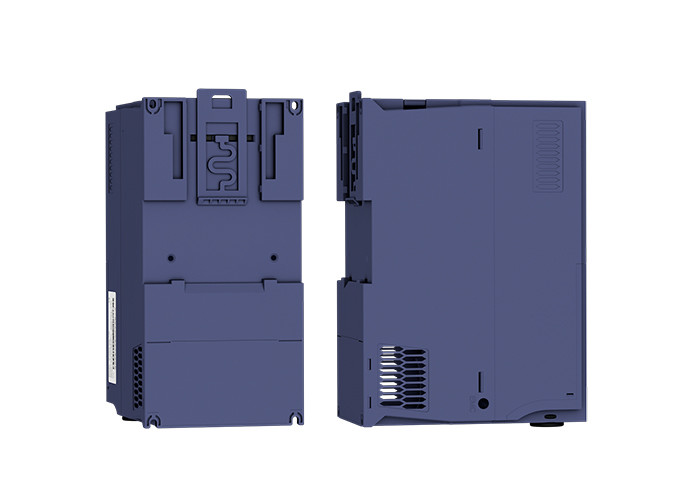

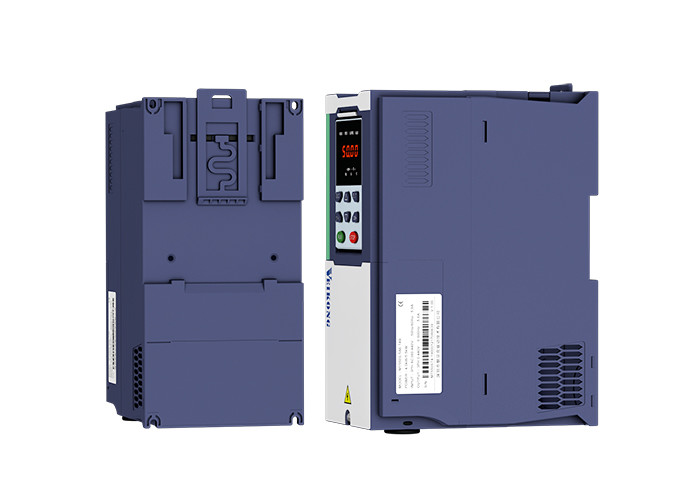

50HZ 60HZ VFD Variable Frequency Drive AC Motor Drive PC Tool Communication
Place of Origin China
Brand Name VEIKONG
Certification CE IEC
Model Number VFD500
Minimum Order Quantity 25 pcs
Price negotiable
Packaging Details paper carton under 45kw, starting from 45kw wooden case for packing
Delivery Time 3-8 working days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15000 per/ month
Product Details
Special Function PC Tool Communication OEM Service Support For Regular Clients
Brand Name Veikong Frequency Range 50 Or 60HZ For Options
Voltage Range 380V-480V Or 220V-240V Product Variable Frequency Inverters
High Light

PC Communication VFD Variable Frequency Drive


60HZ VFD Variable Frequency Drive


Tension control AC Motor Drive

Product Description

Low Cost VFD Variable Frequency Drive AC Motor Drive PC Tool Communication


1. Veikong best seller variable frequency inverter with practical features

1) Dual rated for both heavy duty and normal duty applications

2) Tension control and torque mode control

3) Up to 200% starting torque at 0hz

4) LCD keypad with macro application and shuttle keypad optional

5) Support PC tool software for easier operation


2.Veikong high performance VFD500 series technical data

Item Specification
Input Input voltage

1 phase or 3 phase: 200V-240V

3 phase 380V-480V: 380V-480V

Allowed Voltage fluctuation range -15%~10%
Input Voltage 50HZ or 60HZ functuation less than 5%
Output Output Voltage 3 phase: 0~input voltage
Overload capacity

General purpose application: 60s for 150% of the rated current

Light load application: 60s for 120% of the rated current

Control Control mode

V/F control

Sensorless flux vector control without PG card(SVC)

Sensor speed flux vector control with PG card(VC)

Operating mode Speed control Torque control(SVC and VC)
Speed range




Speed control accuracy




Speed response




frequency range




Input frequency resolution

Digital setting:0.01hz

Analog setting: maximum frequency x 0.1%

Startup torque




Torque control accuracy

SVC: within 5HZ 10% above 5HZ 5%

VC: 3%

VF curve

V/F curve type: straight line, multipoint, power function, V/F separation

Torque boost support: Automatic torque boost(factory setting), manual torque boost

Frequency giving ramp

Support linear and S surve acceleration and deceleration

4 groups of acceration and deceleration time, setting range 0s~60000s

DC bus voltage control

Overvoltage stall control: limit the power generation of the motor by adjusting the output frequency to avoid skipping the voltage fault

Undervoltage stall control: control the power consumption of the motor by adjusting the output frequency to aviod yaw fault

VdcMax Control: Limit the amount of the power generated by the motor by adjusting the output frequency to avoid overvoltage trip

VdcMin Contorl: Control the consumption of the motor by adjusting the output frequency, to avoid jump undervoltage fault

Carrier frequency 1kHZ~12kHZ(Varies depending on the type)
Startup mehod

Direct start( can be superimposed DC brake)

Speed tracking start

Stop method

Deceleration stop(can be superimposed DC braking)

Free to stop

Maincontrol function Jog control, droop control, up to 16 speed operation, dangerous sopeed avoidance, swing frequency operation, acceleration and deceleration time switching, VF separation, over excitation braking, process PID control, sleep and wakeup function, bulit in delay unit, built in simple PLC logic, virtual input and output terminals, built in comarison unit, software swap output wiring, terminals UP/DOWM



3. Veikong high performance VFD500 series can be used in wide applications.

For example, hoisting industry, petroleum industry, chemical industry, power industry, textile industry, iron and steel industry, heating system, winding machine, pumps, compresssor, conveyor belt, machine tool industry, injection molding machine.

If you have any double abt the application which can be used, please feel free to contact us!



4. Veikong team are always trying our best to provide better quality products and nicer service to our clients. Of course, we will still devote more and more fund into developing high performance software and upgrade our products. These are some feedbacks from our clients which you can check here.


50HZ 60HZ VFD Variable Frequency Drive AC Motor Drive PC Tool Communication

50HZ 60HZ VFD Variable Frequency Drive AC Motor Drive PC Tool Communication

50HZ 60HZ VFD Variable Frequency Drive AC Motor Drive PC Tool Communication


5. Product User Manual and Porduct Brochure Download Center


VEIKONG VFD500 high performance vector and torque ...

veikong catalog latest.pdf
