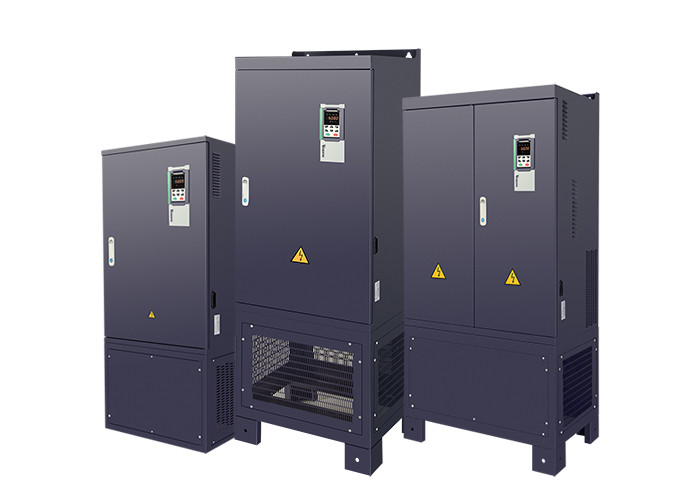

IGBT Thermal EMC VFD AC Drive 400KW 450KW 500KW For Automation Machines
| Place of Origin | China |
|---|---|
| Brand Name | VEIKONG |
| Certification | CE |
| Model Number | VFD500 |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | Carton and Wooden Box |
| Delivery Time | 3 days, depend on the order quantity |
| Payment Terms | Western Union, T/T, L/C, D/A, D/P, PayPal |
| Supply Ability | 15000pcs per Month |
Product Details
| Product Name | 400KW 450KW 500KW AC Drive VFD | Control Mode | V/F, SVC, VC, Etc |
|---|---|---|---|
| Model Range | 0.75KW-710KW | Output Frequency | 50HZ, 60HZ |
| Output Current | Depend On Models | Color | Blue |
| High Light | IGBT Thermal VFD AC Drive,EMC VFD AC Drive,500KW SVC Variable Frequency Drive |
||
Product Description
400KW 450KW 500KW AC Drive VFD Work For Big Motor Automation Machines
Performance features
- Advanced motor control algorithm
- High performance open loop vector control
- Optimal V/F,and vector control mode
- Excellent ramp slope control
- Fast autotune (less than one minute)
- Overload: 150% rated output current, one minute
Hardware features
- Dual CPU processing, more precise control
- Using the latest generation IGBT
- 0.4k~22kW with standard inner brake unit
- Inner EMC C3 filter with breakpoint design, convenient for access and disconnection, meet different
- PCBA coating process, increase environment adaptability
- Unique control terminals: simple electronic switch set to complete the conversion between source and sink of I/O terminals
- Reference (current) loose, trip or not could be selected
- IGBT thermal design
- Wireless fan block design, easy to replace or maintain
- Connecting auxiliary fan makes the drive suitable for worse environment
Technical Specifications
| Item | Specification | |
| Input | Input Voltage |
1phase/3phase 220V:200V～240V 3 phase 380V-480V:380V～480V |
| Allowed Voltage fluctuation range | -15%～10% | |
| Input frequency | 50Hz / 60Hz,fluctuation less than 5% | |
| Output | Output Voltage | 3phase:0～input voltage |
| Overload capacity |
General purpose application:60S for 150% of the rated current Light load application:60S for 120% of the rated current |
|
| Control | Control mode |
V/f control Sensorless flux vector control without PG card(SVC) Sensor speed flux vector control with PG card (VC) |
| Operating mode | Speed control,Torque control(SVC and VC) | |
| Speed range |
1:100 (V/f) 1:200( SVC) 1:1000 (VC) |
|
| Speed control accuracy |
±0.5% (V/f) ±0.2% (SVC) ±0.02% (VC) |
|
| Speed response |
5Hz(V/f) 20Hz(SVC) 50Hz(VC) |
|
| Frequency range |
0.00～600.00Hz(V/f) 0.00～200.00Hz(SVC) 0.00～400.00Hz(VC) |
|
| Input frequency resolution |
Digital setting: 0.01 Hz Analog setting: maximum frequency x 0.1% |
|
| Startup torque |
150%/0.5Hz(V/f) 180%/0.25Hz(SVC) 200%/0Hz(VC) |
|
| Torque control accuracy |
SVC:within 5Hz10%,above 5Hz5% VC:3.0% |
|
| V/f curve |
V / f curve type: straight line, multi point, power function, V / f separation; Torque boost support: Automatic torque boost (factory setting), manual torque boost |
|
| Frequency giving ramp |
Support linear and S curve acceleration and deceleration; 4 groups of acceleration and deceleration time, setting range 0.00s ~ 60000s |
|
| DC bus voltage control |
Over-voltage stall control: limit the power generation of the motor by adjusting the output frequency to avoid skipping the voltage fault;
Under-voltage stall control: control the power consumption of the motor by adjusting the output frequency to avoid yaw failure
VdcMax Control: Limit the amount of power generated by the motor by adjusting the output frequency to avoid over-voltage trip; Vdc Min control: Control the power consumption of the motor by adjusting the output frequency, to avoid jump under-voltage fault |
|
| Carrier frequency | 1kHz～12kHz(Varies depending on the type) | |
| Startup method | Direct start (can be superimposed DC brake); speed tracking start | |
| Stop method | Deceleration stop (can be superimposed DC braking); free to stop | |
| Main control function | Jog control, droop control, up to 16-speed operation, dangerous speed avoidance, swing frequency operation, acceleration and deceleration time switching, VF separation, over excitation braking, process PID control, sleep and wake-up function, built-in simple PLC logic, virtual Input and output terminals, built-in delay unit, built-in comparison unit and logic unit, parameter backup and recovery, perfect fault record,fault reset, two groups of motor parametersfreeswitching, software swap output wiring, terminals UP / DOWN | |
| Function | Keypad | LED Digital keyboard and LCD keypad(option) |
| Communication |
Standard: MODBUS communication CAN OPEN AND PROFINET( IN DEVELOPMENT) |
|
| PG card | Incremental Encoder Interface Card (Differential Output and Open Collector), Rotary transformer Card | |
| Input terminal |
Standard: 5 digital input terminals, one of which supports high-speed pulse input up to 50kHz; 2 analog input terminals, support 0 ~ 10V voltage input or 0 ~ 20mA current input; Option card: 4 digital input terminals 2 analog input terminals.support-10V-+10V voltage input |
|
| Output terminal |
standard: 1 digital output terminal; 1 high-speed pulse output terminal (open collector type), support 0 ~ 50kHz square wave signal output; 1 relay output terminal(second relay is an option ) 2 analog output terminals, support 0 ~ 20mA current output or 0 ~ 10V voltage output; Option card: 4 digital output terminals |
|
| Protection | Refer to Chapter 6 "Troubleshooting and Countermeasures" for the protection function | |
| Environment | Installation location | Indoor, no direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapor, drip or salt. |
| Altitude | 0-3000m.inverter will be derated if altitude higher than1000m and rated output current will reduce by 1% if altitude increase by 100m | |
| Ambient temperature | -10°C~ +40°C,maximum 50°C (derated if the ambient temperature is between 40°C and 50°C)Rated output current decrease by 1.5% if temperature increase by 1°C | |
| Humidity | Less than 95%RH, without condensing | |
| Vibration | Less than 5.9 m/s2 (0.6 g) | |
| Storage temperature | -20°C ~ +60°C | |
| Others | Installation | Wall-mounted, floor-controlled cabinet, transmural |
| Protection level | IP20 | |
| cooling method | Forced air cooling | |
| EMC | CE ROHS |
Internal EMC filter Complies with EN61800-3 Category C3 3rd Environment |
Model Range
| Model |
Power capacity (KVA) |
Input current (A) |
Output current(A) |
Adaptable Motor (KW) |
SIZE | Brake Unit | |
| Heavy load | Light load | ||||||
| Three phase: 380-480V,50/60Hz | |||||||
| VFD500-R75GT4B | 1.5 | 3.4 | 2.5 | 4.2 | 0.75 | SIZE A | Internal |
| VFD500-1R5GT4B | 3 | 5 | 4.2 | 5.6 | 1.5 | ||
| VFD500-2R2GT4B | 4 | 5.8 | 5.6 | 9.4 | 2.2 | ||
| VFD500-4R0G/5R5PT4B | 5.9 | 10.5 | 9.4 | 13.0 | 3.7 | ||
| VFD500-5R5G/7R5PT4B | 8.9 | 14.6 | 13.0 | 17.0 | 5.5 | SIZE B | |
| VFD500-7R5G/011PT4B | 11 | 20.5 | 17.0 | 23.0 | 7.5 | ||
| VFD500-011G/015PT4B | 17 | 26.0 | 25.0 | 31.0 | 11 | SIZE C | Internal |
| VFD500-015G/018PT4B | 21 | 35.0 | 32.0 | 37.0 | 15 | ||
| VFD500-018G/022PT4B | 24 | 38.5 | 37.0 | 45.0 | 18.5 | SIZE D | |
| VFD500-022G/030PT4B | 30 | 46.5 | 45.0 | 57.0 | 22 | ||
| VFD500-030G/037PT4 | 40 | 62.0 | 60.0 | 75.0 | 30 | SIZE E | option |
| VFD500-037G/045PT4 | 50 | 76.0 | 75.0 | 87.0 | 37 | ||
| VFD500-045G/055PT4 | 60 | 92.0 | 90.0 | 110.0 | 45 | SIZE F | |
| VFD500-055G/075PT4 | 75 | 113.0 | 110.0 | 135.0 | 55 | ||
| VFD500-075G/090PT4 | 104 | 157.0 | 152.0 | 165.0 | 75 | SIZE G | |
| VFD500-090G/110PT4 | 112 | 170.0 | 176.0 | 210.0 | 90 | External | |
| VFD500-110G/132PT4 | 145 | 220.0 | 210.0 | 253.0 | 110 | SIZE H | |
| VFD500-132G/160PT4 | 170 | 258.0 | 253.0 | 304.0 | 132 | SIZE I | |
| VFD500-160G/185PT4 | 210 | 320.0 | 304.0 | 360.0 | 160 | ||
| VFD500-185G/200PT4 | 245 | 372.0 | 360.0 | 380.0 | 185 | SIZE J | |
| VFD500-200G/220PT4 | 250 | 380.0 | 380.0 | 426.0 | 200 | ||
| VFD500-220G/250PT4 | 280 | 425.0 | 426.0 | 465.0 | 220 | SIZE K | |
| VFD500-250G/280PT4 | 315 | 479.0 | 465.0 | 520.0 | 250 | ||
| VFD500-280G/315PT4 | 350 | 532.0 | 520.0 | 585.0 | 280 | SIZE L | |
| VFD500-315G/355PT4 | 385 | 585.0 | 585.0 | 650.0 | 315 | ||
| VFD500-355G/400PT4 | 420 | 638.0 | 650.0 | 725.0 | 355 | SIZE M | |
| VFD500-400G/450PT4 | 470 | 714.0 | 725.0 | 820.0 | 400 | ||
| VFD500-450G/500PT4 | 530 | 800.0 | 820.0 | / | 450 | SIZE N | |
| VFD500-500G/560PT4 | 580 | 880.0 | 900.0 | / | 500 | ||
| VFD500-560G/630PT4 | 630 | 950.0 | 980.0 | / | 560 | SIZE O | |
| VFD500-630GT4 | 710 | 1080 | 1120. | / | 630 | SIZE O | |
| VFD500-710GT4 | 790 | 1200 | 1260 | / | 710 | SIZE O | |
| Single phase :220V ,50/60HZ | |||||||
| VFD500-R40GS2 | 1.3 | 6.0 | 3.2 | 5.6 | 0.4 | SIZE A | Inbuilt |
| VFD500-R75GS2 | 2.4 | 11.0 | 5.6 | 8.0 | 0.75 | SIZE A | |
| VFD500-1R5GS2 | 3.5 | 15.0 | 8.0 | 10.6 | 1.5 | SIZE A | |
| VFD500-2R2GS2 | 5.5 | 25.0 | 10.6 | 14.0 | 2.2 | SIZE A | |
| VFD500-4R0GS2 | 7.7 | 35.0 | 17.0 | 23.0 | 4.0 | SIZE B | |
| VFD500-5R5GS2 | 8.9 | 53.0 | 25.0 | 31.0 | 5.5 | SIZE C | |
| VFD500-7R5GS2 | 11 | 67.0 | 32.0 | 37.0 | 7.5 | SIZE C | |
