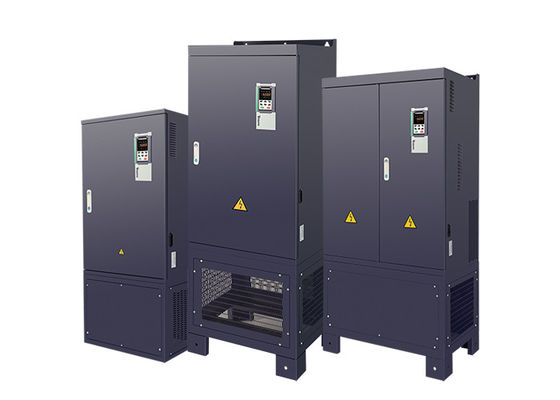

560KW 630KW 710KW VFD Variable Frequency Drive For AC Motor Crusher Machine
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VFD500
Minimum Order Quantity 1
Price Negotiable
Packaging Details Carton and Wooden Box
Delivery Time 3 days, depend on the order quantity
Payment Terms Western Union, T/T, L/C, D/A, D/P, PayPal
Supply Ability 15000pcs per Month
Product Details
Product Name 560KW 630KW 710KW Frequency Drive Voltage Range 380V-480Vac
Control Mode V/F, SVC, VC, Etc Model Range 0.75KW-710KW
Frequency Range 50HZ, 60HZ Keyboard LED/LCD
High Light

710KW VFD Variable Frequency Drive

,

Crusher Machine VFD Variable Frequency Drive

,

EMC Filter Variable Frequency Drive Inverter

Product Description

560KW 630KW 710KW Frequency Drive For AC Motor Crusher Machine







High performance



1. More Accurate Motor Autotuning


2. Advanced open and close loop vector control


3. Perfect voltage and current control, reducing the fault protection times


4. Multiple braking modes and instant stopping


5. 0.75kW~7100kW(Three Phase 400V)



Technical Specifications



Item Specification
Input Input Voltage

1phase/3phase 220V:200V~240V

3 phase 380V-480V:380V~480V

Allowed Voltage fluctuation range -15%~10%
Input frequency 50Hz / 60Hz,fluctuation less than 5%
Output Output Voltage 3phase:0~input voltage
Overload capacity

General purpose application:60S for 150% of the rated current

Light load application:60S for 120% of the rated current

Control Control mode

V/f control

Sensorless flux vector control without PG card(SVC)

Sensor speed flux vector control with PG card (VC)

Operating mode Speed control,Torque control(SVC and VC)
Speed range

1:100 (V/f)

1:200( SVC)

1:1000 (VC)

Speed control accuracy

±0.5% (V/f)

±0.2% (SVC)

±0.02% (VC)

Speed response

5Hz(V/f)

20Hz(SVC)

50Hz(VC)

Frequency range

0.00~600.00Hz(V/f)

0.00~200.00Hz(SVC)

0.00~400.00Hz(VC)

Input frequency resolution

Digital setting: 0.01 Hz

Analog setting: maximum frequency x 0.1%

Startup torque

150%/0.5Hz(V/f)

180%/0.25Hz(SVC)

200%/0Hz(VC)

Torque control accuracy

SVC:within 5Hz10%,above 5Hz5%

VC:3.0%

V/f curve

V / f curve type: straight line, multi point, power function, V / f separation;

Torque boost support: Automatic torque boost (factory setting), manual torque boost

Frequency giving ramp

Support linear and S curve acceleration and deceleration;

4 groups of acceleration and deceleration time, setting range 0.00s ~ 60000s

DC bus voltage control

Over-voltage stall control: limit the power generation of the motor by adjusting the output frequency to avoid skipping the voltage fault;



Under-voltage stall control: control the power consumption of the motor by adjusting the output frequency to avoid yaw failure



VdcMax Control: Limit the amount of power generated by the motor by adjusting the output frequency to avoid over-voltage trip;

Vdc Min control: Control the power consumption of the motor by adjusting the output frequency, to avoid jump under-voltage fault

Carrier frequency 1kHz~12kHz(Varies depending on the type)
Startup method Direct start (can be superimposed DC brake); speed tracking start
Stop method Deceleration stop (can be superimposed DC braking); free to stop
Main control function Jog control, droop control, up to 16-speed operation, dangerous speed avoidance, swing frequency operation, acceleration and deceleration time switching, VF separation, over excitation braking, process PID control, sleep and wake-up function, built-in simple PLC logic, virtual Input and output terminals, built-in delay unit, built-in comparison unit and logic unit, parameter backup and recovery, perfect fault record,fault reset, two groups of motor parametersfreeswitching, software swap output wiring, terminals UP / DOWN
Function Keypad LED Digital keyboard and LCD keypad(option)
Communication

Standard:

MODBUS communication

CAN OPEN AND PROFINET( IN DEVELOPMENT)

PG card Incremental Encoder Interface Card (Differential Output and Open Collector), Rotary transformer Card
Input terminal

Standard:

5 digital input terminals, one of which supports high-speed pulse input up to 50kHz;

2 analog input terminals, support 0 ~ 10V voltage input or 0 ~ 20mA current input;

Option card:

4 digital input terminals

2 analog input terminals.support-10V-+10V voltage input

Output terminal

standard:

1 digital output terminal;

1 high-speed pulse output terminal (open collector type), support 0 ~ 50kHz square wave signal output;

1 relay output terminal(second relay is an option )

2 analog output terminals, support 0 ~ 20mA current output or 0 ~ 10V voltage output;

Option card: 4 digital output terminals

Protection Refer to Chapter 6 "Troubleshooting and Countermeasures" for the protection function
Environment Installation location Indoor, no direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapor, drip or salt.
Altitude 0-3000m.inverter will be derated if altitude higher than1000m and rated output current will reduce by 1% if altitude increase by 100m
Ambient temperature -10°C~ +40°C,maximum 50°C (derated if the ambient temperature is between 40°C and 50°C)Rated output current decrease by 1.5% if temperature increase by 1°C
Humidity Less than 95%RH, without condensing
Vibration Less than 5.9 m/s2 (0.6 g)
Storage temperature -20°C ~ +60°C
Others Installation Wall-mounted, floor-controlled cabinet, transmural
Protection level IP20
cooling method Forced air cooling
EMC CE ROHS

Internal EMC filter

Complies with EN61800-3

Category C3

3rd Environment





Model Range



Model

Power capacity

(KVA)

Input current

(A)

Output current(A)

Adaptable Motor

(KW)

SIZE Brake Unit
Heavy load Light load
Three phase: 380-480V,50/60Hz
VFD500-R75GT4B 1.5 3.4 2.5 4.2 0.75 SIZE A Internal
VFD500-1R5GT4B 3 5 4.2 5.6 1.5
VFD500-2R2GT4B 4 5.8 5.6 9.4 2.2
VFD500-4R0G/5R5PT4B 5.9 10.5 9.4 13.0 3.7
VFD500-5R5G/7R5PT4B 8.9 14.6 13.0 17.0 5.5 SIZE B
VFD500-7R5G/011PT4B 11 20.5 17.0 23.0 7.5
VFD500-011G/015PT4B 17 26.0 25.0 31.0 11 SIZE C Internal
VFD500-015G/018PT4B 21 35.0 32.0 37.0 15
VFD500-018G/022PT4B 24 38.5 37.0 45.0 18.5 SIZE D
VFD500-022G/030PT4B 30 46.5 45.0 57.0 22
VFD500-030G/037PT4 40 62.0 60.0 75.0 30 SIZE E option
VFD500-037G/045PT4 50 76.0 75.0 87.0 37
VFD500-045G/055PT4 60 92.0 90.0 110.0 45 SIZE F
VFD500-055G/075PT4 75 113.0 110.0 135.0 55
VFD500-075G/090PT4 104 157.0 152.0 165.0 75 SIZE G
VFD500-090G/110PT4 112 170.0 176.0 210.0 90 External
VFD500-110G/132PT4 145 220.0 210.0 253.0 110 SIZE H
VFD500-132G/160PT4 170 258.0 253.0 304.0 132 SIZE I
VFD500-160G/185PT4 210 320.0 304.0 360.0 160
VFD500-185G/200PT4 245 372.0 360.0 380.0 185 SIZE J
VFD500-200G/220PT4 250 380.0 380.0 426.0 200
VFD500-220G/250PT4 280 425.0 426.0 465.0 220 SIZE K
VFD500-250G/280PT4 315 479.0 465.0 520.0 250
VFD500-280G/315PT4 350 532.0 520.0 585.0 280 SIZE L
VFD500-315G/355PT4 385 585.0 585.0 650.0 315
VFD500-355G/400PT4 420 638.0 650.0 725.0 355 SIZE M
VFD500-400G/450PT4 470 714.0 725.0 820.0 400
VFD500-450G/500PT4 530 800.0 820.0 / 450 SIZE N
VFD500-500G/560PT4 580 880.0 900.0 / 500
VFD500-560G/630PT4 630 950.0 980.0 / 560 SIZE O
VFD500-630GT4 710 1080 1120. / 630 SIZE O
VFD500-710GT4 790 1200 1260 / 710 SIZE O
Single phase :220V ,50/60HZ
VFD500-R40GS2 1.3 6.0 3.2 5.6 0.4 SIZE A Inbuilt
VFD500-R75GS2 2.4 11.0 5.6 8.0 0.75 SIZE A
VFD500-1R5GS2 3.5 15.0 8.0 10.6 1.5 SIZE A
VFD500-2R2GS2 5.5 25.0 10.6 14.0 2.2 SIZE A
VFD500-4R0GS2 7.7 35.0 17.0 23.0 4.0 SIZE B
VFD500-5R5GS2 8.9 53.0 25.0 31.0 5.5 SIZE C
VFD500-7R5GS2 11 67.0 32.0 37.0 7.5 SIZE C


Product Application

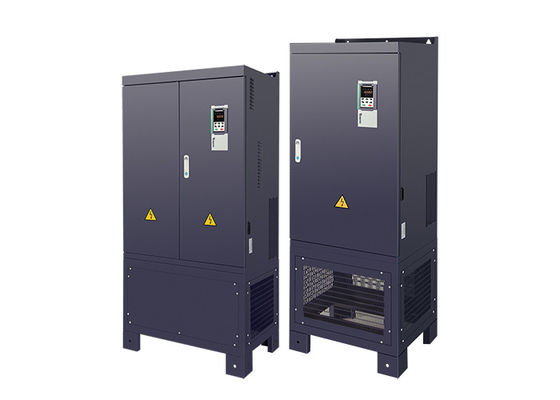

560KW 630KW 710KW VFD Variable Frequency Drive For AC Motor Crusher Machine
