VFD variable frequency inverter For Heavy Load 30kw 37kw 45kw 55kw
| Place of Origin | China |
|---|---|
| Brand Name | VEIKONG |
| Certification | CE |
| Model Number | VFD500-PV |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | the power less than 45kw use Carton, starting from 45kw use Wooden case |
| Delivery Time | 3 days, depend on the order quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 15000pcs per Month |
Product Details
| Product Name | AC DRIVE | Voltage | 220v/380v |
|---|---|---|---|
| Power | 30KW 37KW 45KW 55KW | Color | Bule And White |
| Frequency | 0-2000HZ | Control Mode | Vf And Vector Control |
| High Light | 55kw Variable Frequency Inverter,30kw VFD Inverter,37kw Variable Frequency Inverter |
||
Product Description

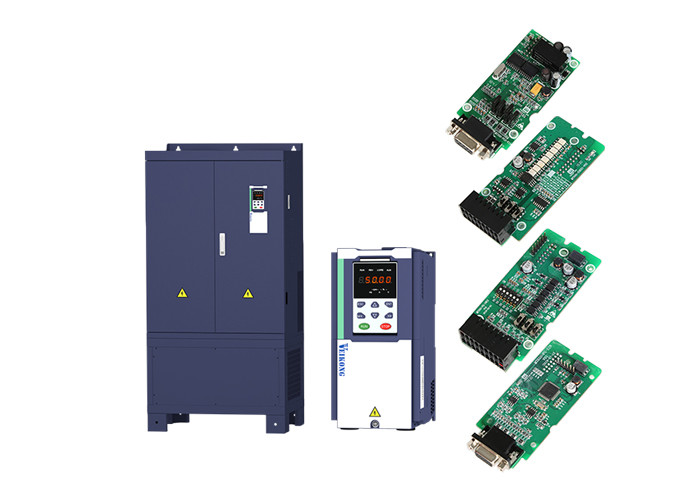

VFD Variable Frequency Inverter For Heavy Load 30kw 37kw 45kw 55kw
VFD ac drive frequency inverter for heavy load 30kw 37kw 45kw 55kw
Features
- High-performance vector universal platform, brand new motor control algorithm.
- Synchronous and asynchronous drives are integrated, open loop and closed loop are comprehensive.
- Software and hardware modular design requirements, strong expansion capabilities.
- Rich interface accessories, covering various applications.
- Book design, save installation space.
- Optimize the convenient keyboard design, support the new external keyboard.
- The upper and lower straight ventilation ducts are designed to dissipate heat by DC fans.
- PCB spraying three-proof paint to ensure product stability and reliability.
Techincal Parameters:
| Item | Specifiation | |
| Input | Inuput Voltage |
1phase/3phase 220V:200V～240V 3 phase 380V-480V:380V～480V |
| Allowed Voltage fluctuation range | -15%～10% | |
| Input frequency | 50Hz / 60Hz,fluctuation less than 5% | |
| Output | Output Voltage | 3phase:0～input voltage |
| Overload capacity |
General purpose application:60S for 150% of the rated current Light load application:60S for 120% of the rated current |
|
| Control | Control mode |
V/f control Sensorless flux vector control without PG card(SVC) Sensor speed flux vector control with PG card (VC) |
| Operating mode | Speed control,Torque control(SVC and VC) | |
| Speed range |
1:100 (V/f) 1:200( SVC) 1:1000 (VC) |
|
| Speed control accuracy |
±0.5% (V/f) ±0.2% (SVC) ±0.02% (VC) |
|
| Speed response |
5Hz(V/f) 20Hz(SVC) 50Hz(VC) |
|
| frequency range |
0.00～600.00Hz(V/f) 0.00～200.00Hz(SVC) 0.00～400.00Hz(VC) |
|
| Input frequency resolution |
Digital setting: 0.01 Hz Analog setting: maximum frequency x 0.1% |
|
| Startup torque |
150%/0.5Hz(V/f) 180%/0.25Hz(SVC) 200%/0Hz(VC) |
|
| Torque control accuracy |
SVC:within 5Hz10%,above 5Hz5% VC:3.0% |
|
| V/f curve |
V / f curve type: straight line, multipoint, power function, V / f separation; Torque boost support: Automatic torque boost (factory setting), manual torque boost |
|
| Frequency giving ramp |
Support linear and S curve acceleration and deceleration; 4 groups of acceleration and deceleration time, setting range 0.00s ~ 60000s |
|
| DC bus voltage control |
Overvoltage stall control: limit the power generation of the motor by adjusting the output frequency to avoid skipping the voltage fault;
Undervoltage stall control: control the power consumption of the motor by adjusting the output frequency to avoid yaw failure
VdcMax Control: Limit the amount of power generated by the motor by adjusting the output frequency to avoid over-voltage trip; VdcMin control: Control the power consumption of the motor by adjusting the output frequency, to avoid jump undervoltage fault |
|
| Carrier frequency | 1kHz～12kHz(Varies depending on the type) | |
| Startup method | Direct start (can be superimposed DC brake); speed tracking start | |
| Stop method | Deceleration stop (can be superimposed DC braking); free to stop | |
| Maincontrol function | Jog control, droop control, up to 16-speed operation, dangerous speed avoidance, swing frequency operation, acceleration and deceleration time switching, VF separation, over excitation braking, process PID control, sleep and wake-up function, built-in simple PLC logic, virtual Input and output terminals, built-in delay unit, built-in comparison unit and logic unit, parameter backup and recovery, perfect fault record,fault reset, two groups of motor parameters free switching, software swap output wiring, terminals UP / DOWN | |
High performance general purpose ac drive, VFD530
Effortless process automation for a broad range of applications
VEIKONG VFD530 general purpose AC drives simplify your processes and motor control with effortless process automation. The VFD530 is a good choice for a wide range of applications, making it easy to comprehensively manage your plant. The VFD530 is part of VEIKONG ’s all-compatible drives portfolio, sharing the same architecture and user interfaces for easy usability. The VFD530 is plug-in ready to control your compressors, conveyors, mixers, pumps, centrifuges, fans and many other variable and constant torque applications in different industries.
#Support IM and PMSM motor
##Support different kinds of encoders
#Easy to select, install and use
#All essential features built into the drive for minimized number of external components
#Many built-in control functions for simplified automation and process control
Straightforward settings menu and assistants for fast commissioning
#Energy efficiency features for optimal energy use
#Connect to any automation system or use stand-alone
#Wide availability and support
Designed for reliability and consistent high quality
