AC 380v 220v IP20 OVP VFD Variable Frequency Drive Manufacturers
| Place of Origin | China |
|---|---|
| Brand Name | VEIKONG |
| Certification | CE |
| Model Number | VFD500 |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | the power less than 45kw use Carton, starting from 45kw use Wooden case |
| Delivery Time | 3 days, depend on the order quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 15000pcs per Month |
Product Details
| Product Name | Ac Inverter | Power | 0.75kw-710kw |
|---|---|---|---|
| Output Frequency | 0-3000hz | Protection | Overload,Overvoltage,IP20,Short Circuit,over Heat |
| Color | Bule And White | Voltage | 220v/380v |
| High Light | IP20 VFD Variable Frequency Drive Manufacturers,IP20 China Variable Frequency Drive,OVP VFD China |
||
Product Description
AC 380v 220v IP20 OVP VFD Variable Frequency Drive Manufacturers
30kw 40hp variable frequency drive ac drive with LCD keypad VFD
High speed accuracy and wide speed range
Steady speed accuracy: ±0.5% (SVC), ±0.02% (VC)
Speed range: 1:200 (SVC), 1:1000 (VC)
Heavy load overload capability:
110% rated current for long-term stable operation
150% rated current for 1 minute
180% rated current 10s
High torque in low speed, fast response
Load capacity in low speed
VF: 180%@0.50Hz
SVC: 180%@0.25Hz
VC: 200%@0.00Hz
Independent air duct design, effectively
preventing dust entering inverter, causing
short-circuit and other faults and
improving reliability

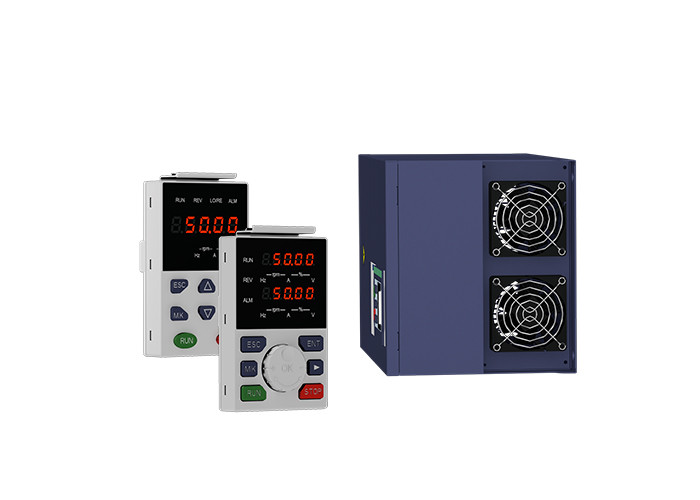

Use bigger air volume and long life cooling
fan effectively reduces the internal
temperature rise of the inverter and
ensures reliable and stable operation of
inverter.
Deceleration over excitation function
Accurate thermal simulation platform software
ensures the reliability of thermal simulation.
Each VFD500 inverter has undergone thermal
simulation testing, and only the physical prototype
is developed within the scope of the thermal
simulation safety design requirements. After the
actual test, the thermal simulation results are very
close to the physical test results. In the limit test
state, the thermal simulation can replace the
actual load simulation and an additional layer of
scientific thermal test.
VFD500 parameter distribution list
Techincal Parameters:
| Item | Specifiation | |
| Input | Inuput Voltage |
1phase/3phase 220V:200V～240V 3 phase 380V-480V:380V～480V |
| Allowed Voltage fluctuation range | -15%～10% | |
| Input frequency | 50Hz / 60Hz,fluctuation less than 5% | |
| Output | Output Voltage | 3phase:0～input voltage |
| Overload capacity |
General purpose application:60S for 150% of the rated current Light load application:60S for 120% of the rated current |
|
| Control | Control mode |
V/f control Sensorless flux vector control without PG card(SVC) Sensor speed flux vector control with PG card (VC) |
| Operating mode | Speed control,Torque control(SVC and VC) | |
| Speed range |
1:100 (V/f) 1:200( SVC) 1:1000 (VC) |
|
| Speed control accuracy |
±0.5% (V/f) ±0.2% (SVC) ±0.02% (VC) |
|
| Speed response |
5Hz(V/f) 20Hz(SVC) 50Hz(VC) |
|
| frequency range |
0.00～600.00Hz(V/f) 0.00～200.00Hz(SVC) 0.00～400.00Hz(VC) |
|

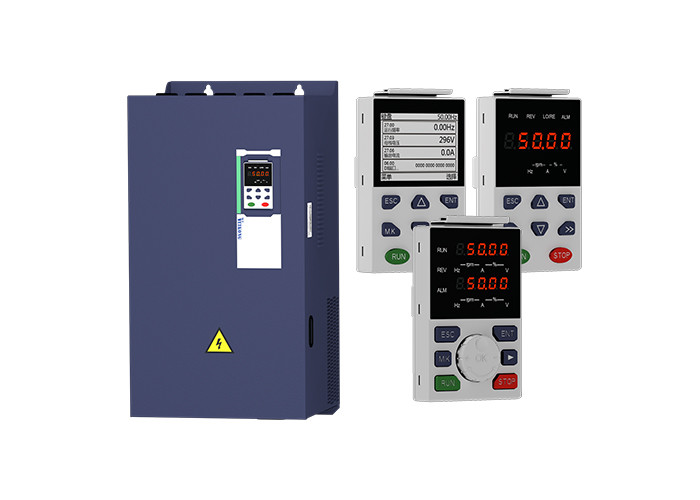

| Function | Keypad | LED Digital keyboard and LCD keypad(option) |
| Communication |
Standard: MODBUS communication CAN OPEN AND PROFINET( IN DEVELOPMENT) |
|
| PG card | Incremental Encoder Interface Card (Differential Output and Open Collector), Rotary transformer Card | |
| Input terminal |
Standard: 5 digital input terminals, one of which supports high-speed pulse input up to 50kHz; 2 analog input terminals, support 0 ~ 10V voltage input or 0 ~ 20mA current input; Option card: 4 digital input terminals 2 analog input terminals.support-10V-+10V voltage input |
|
| Output terminal |
standard: 1 digital output terminal; 1 high-speed pulse output terminal (open collector type), support 0 ~ 50kHz square wave signal output; 1 relay output terminal(second relay is an option ) 2 analog output terminals, support 0 ~ 20mA current output or 0 ~ 10V voltage output; Option card: 4 digital output terminals |
|
| Protection | Refer to Chapter 6 "Troubleshooting and Countermeasures" for the protection function | |
| Environment | Installation location | Indoor, no direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapor, drip or salt. |
| Altitude | 0-3000m.inverter will be derated if altitude higher than1000m and rated output current will reduce by 1% if altitude increase by 100m | |
| Ambient temperature | -10°C~ +40°C,maximum 50°C (derated if the ambient temperature is between 40°C and 50°C)Rated output current decrease by 1.5% if temperature increase by 1°C | |
| Humidity | Less than 95%RH, without condensing | |
| Vibration | Less than 5.9 m/s2 (0.6 g) | |
| Storage temperature | -20°C ~ +60°C | |
| Others | Installation | Wall-mounted, floor-controlled cabinet, transmural |
| Protection level | IP20 | |
| cooling method | Forced air cooling | |
| EMC | CE ROHS |
Internal EMC filter Complies with EN61800-3 Category C3 3rd Environment |
VEIKONG VFD APPLICATION:
Mode Range
| Model |
Power capacity (KVA) |
Input current (A) |
Output current(A) |
Adaptable Motor (KW) |
SIZE | Brake Unit | |
| Heavy load | Light load | ||||||
| Three phase: 380-480V,50/60Hz | |||||||
| VFD500-R75GT4B | 1.5 | 3.4 | 2.5 | 4.2 | 0.75 | SIZE A | Internal |
| VFD500-1R5GT4B | 3 | 5 | 4.2 | 5.6 | 1.5 | ||
| VFD500-2R2GT4B | 4 | 5.8 | 5.6 | 9.4 | 2.2 | ||
| VFD500-4R0G/5R5PT4B | 5.9 | 10.5 | 9.4 | 13.0 | 3.7 | ||
| VFD500-5R5G/7R5PT4B | 8.9 | 14.6 | 13.0 | 17.0 | 5.5 | SIZE B | |
| VFD500-7R5G/011PT4B | 11 | 20.5 | 17.0 | 23.0 | 7.5 | ||
| VFD500-011G/015PT4B | 17 | 26.0 | 25.0 | 31.0 | 11 | SIZE C | Internal |
| VFD500-015G/018PT4B | 21 | 35.0 | 32.0 | 37.0 | 15 | ||
| VFD500-018G/022PT4B | 24 | 38.5 | 37.0 | 45.0 | 18.5 | SIZE D | |
| VFD500-022G/030PT4B | 30 | 46.5 | 45.0 | 57.0 | 22 | ||
| VFD500-030G/037PT4 | 40 | 62.0 | 60.0 | 75.0 | 30 | SIZE E | option |
| VFD500-037G/045PT4 | 50 | 76.0 | 75.0 | 87.0 | 37 | ||
| VFD500-045G/055PT4 | 60 | 92.0 | 90.0 | 110.0 | 45 | SIZE F | |
| VFD500-055G/075PT4 | 75 | 113.0 | 110.0 | 135.0 | 55 | ||
| VFD500-075G/090PT4 | 104 | 157.0 | 152.0 | 165.0 | 75 | SIZE G | |
| VFD500-090G/110PT4 | 112 | 170.0 | 176.0 | 210.0 | 90 | External | |
| VFD500-110G/132PT4 | 145 | 220.0 | 210.0 | 253.0 | 110 | SIZE H | |
| VFD500-132G/160PT4 | 170 | 258.0 | 253.0 | 304.0 | 132 | SIZE I | |
| VFD500-160G/185PT4 | 210 | 320.0 | 304.0 | 360.0 | 160 | ||
| VFD500-185G/200PT4 | 245 | 372.0 | 360.0 | 380.0 | 185 | SIZE J | |
| VFD500-200G/220PT4 | 250 | 380.0 | 380.0 | 426.0 | 200 | ||
| VFD500-220G/250PT4 | 280 | 425.0 | 426.0 | 465.0 | 220 | SIZE K | |
| VFD500-250G/280PT4 | 315 | 479.0 | 465.0 | 520.0 | 250 | ||
| VFD500-280G/315PT4 | 350 | 532.0 | 520.0 | 585.0 | 280 | SIZE L | |
| VFD500-315G/355PT4 | 385 | 585.0 | 585.0 | 650.0 | 315 | ||
| VFD500-355G/400PT4 | 420 | 638.0 | 650.0 | 725.0 | 355 | SIZE M | |
| VFD500-400G/450PT4 | 470 | 714.0 | 725.0 | 820.0 | 400 | ||
| VFD500-450G/500PT4 | 530 | 800.0 | 820.0 | / | 450 | SIZE N | |
| VFD500-500G/560PT4 | 580 | 880.0 | 900.0 | / | 500 | ||
| VFD500-560G/630PT4 | 630 | 950.0 | 980.0 | / | 560 | SIZE O | |
| VFD500-630GT4 | 710 | 1080 | 1120. | / | 630 | SIZE O | |
| VFD500-710GT4 | 790 | 1200 | 1260 | / | 710 | SIZE O | |
| Single phase :220V ,50/60HZ | |||||||
| VFD500-R40GS2 | 1.3 | 6.0 | 3.2 | 5.6 | 0.4 | SIZE A | Inbuilt |
| VFD500-R75GS2 | 2.4 | 11.0 | 5.6 | 8.0 | 0.75 | SIZE A | |
| VFD500-1R5GS2 | 3.5 | 15.0 | 8.0 | 10.6 | 1.5 | SIZE A | |
| VFD500-2R2GS2 | 5.5 | 25.0 | 10.6 | 14.0 | 2.2 | SIZE A | |
| VFD500-4R0GS2 | 7.7 | 35.0 | 17.0 | 23.0 | 4.0 | SIZE B | |
| VFD500-5R5GS2 | 8.9 | 53.0 | 25.0 | 31.0 | 5.5 | SIZE C | |
| VFD500-7R5GS2 | 11 | 67.0 | 32.0 | 37.0 | 7.5 | SIZE C | |
To Enhance the productivity of your processes, improve energy efficiency and cut maintenance costs, you can rely on our broad portfolio of low voltage AC drives to deliver just that.
The portfolio covers the complete spectrum of drives. From micro and machinery drives for machine building to industrial drives for controlling processing lines, all the way up to industry specific drives with purpose-designed features and functionality.
VEIKONG drives are available directly from stock or can be built to order to meet more complex requirements. Our life cycle services ensure your processes run exactly as you expect, year after year.
WHAT WE COME TO BE ROBUST AND STRONG IS DUE TO AUTO TESTING PLATFORM AND HIGH TEMPERATURE AGING TEST.
#Veikong solar pump inverter with colorful LCD keyboard
#No need use manual and no need setting parameters more user friendly
#5 group parameters dynamic monitoring!
#LCD keyboard is wonderful option for important solar pump project
