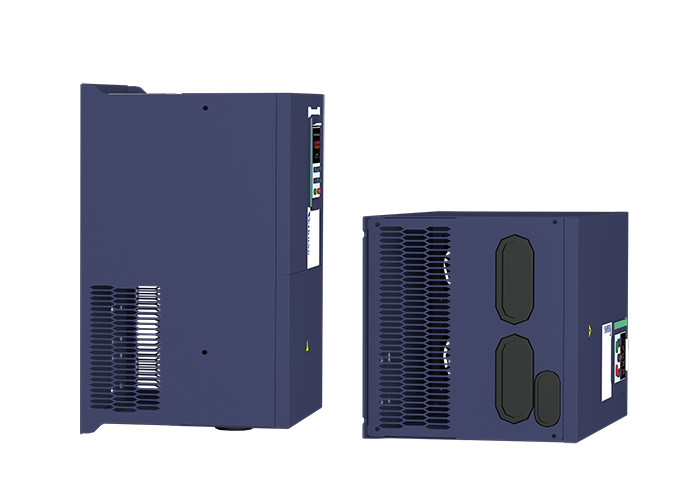

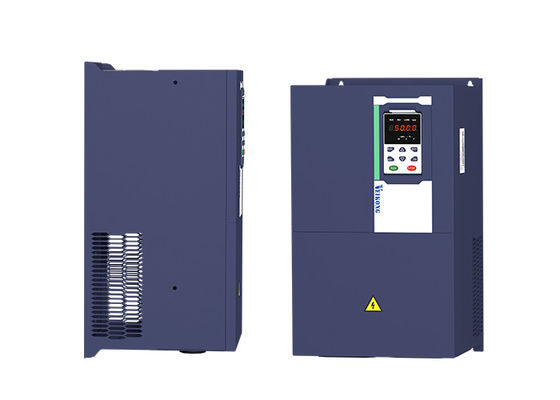

High Performance 30KW 40hp AC Drive Inverter Compressor VFD Machine
| Place of Origin | China |
|---|---|
| Brand Name | VEIKONG |
| Certification | CE |
| Model Number | VFD500 |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | Carton and Wooden Box |
| Delivery Time | 3 days, depend on the order quantity |
| Payment Terms | Western Union, T/T, L/C, D/A, D/P, PayPal |
| Supply Ability | 15000pcs per Month |
Product Details
| Product Name | 30KW 40hp VFD Variable Frequency Drive | Current | 60A |
|---|---|---|---|
| IGBT | FUJI, Infineon | Output Type | Triple |
| Weight | 17kg | Size | 453*260*230mm |
| High Light | 40hp AC Drive Inverter,30KW 40hp AC Drive Inverter,40hp Compressor VFD |
||
Product Description
30KW 40hp AC Drive frequency inverter for compressor and automation machine
Performance Advantage
Advanced motor control algorithm
High performance open loop vector control
Optimal V/F mode
Excellent ramp slope control
Fast auto-tune (less than 1 minute)
Overload: 150% rated output current, 1 minute
Low frequency torque: 0.5Hz: 100% rated torque 1Hz: 150% rated torque
Model Range
|
Model |
Power capacity (KVA) |
Input current (A) |
Output current(A) |
Adaptable Motor (KW) |
SIZE |
Brake Unit |
|
|
Heavy load |
Light load |
||||||
|
Three phase: 380-480V,50/60Hz |
|||||||
|
VFD500-R75GT4B |
1.5 |
3.4 |
2.5 |
4.2 |
0.75 |
SIZE A |
Internal |
|
VFD500-1R5GT4B |
3 |
5 |
4.2 |
5.6 |
1.5 |
||
|
VFD500-2R2GT4B |
4 |
5.8 |
5.6 |
9.4 |
2.2 |
||
|
VFD500-4R0G/5R5PT4B |
5.9 |
10.5 |
9.4 |
13.0 |
3.7 |
||
|
VFD500-5R5G/7R5PT4B |
8.9 |
14.6 |
13.0 |
17.0 |
5.5 |
SIZE B |
|
|
VFD500-7R5G/011PT4B |
11 |
20.5 |
17.0 |
23.0 |
7.5 |
||
|
VFD500-011G/015PT4B |
17 |
26.0 |
25.0 |
31.0 |
11 |
SIZE C |
Internal |
|
VFD500-015G/018PT4B |
21 |
35.0 |
32.0 |
37.0 |
15 |
||
|
VFD500-018G/022PT4B |
24 |
38.5 |
37.0 |
45.0 |
18.5 |
SIZE D |
|
|
VFD500-022G/030PT4B |
30 |
46.5 |
45.0 |
57.0 |
22 |
||
|
VFD500-030G/037PT4 |
40 |
62.0 |
60.0 |
75.0 |
30 |
SIZE E |
option |
|
VFD500-037G/045PT4 |
50 |
76.0 |
75.0 |
87.0 |
37 |
||
|
VFD500-045G/055PT4 |
60 |
92.0 |
90.0 |
110.0 |
45 |
SIZE F |
|
|
VFD500-055G/075PT4 |
75 |
113.0 |
110.0 |
135.0 |
55 |
||
|
VFD500-075G/090PT4 |
104 |
157.0 |
152.0 |
165.0 |
75 |
SIZE G |
|
|
VFD500-090G/110PT4 |
112 |
170.0 |
176.0 |
210.0 |
90 |
External |
|
|
VFD500-110G/132PT4 |
145 |
220.0 |
210.0 |
253.0 |
110 |
SIZE H |
|
|
VFD500-132G/160PT4 |
170 |
258.0 |
253.0 |
304.0 |
132 |
SIZE I |
|
|
VFD500-160G/185PT4 |
210 |
320.0 |
304.0 |
360.0 |
160 |
||
|
VFD500-185G/200PT4 |
245 |
372.0 |
360.0 |
380.0 |
185 |
SIZE J |
|
|
VFD500-200G/220PT4 |
250 |
380.0 |
380.0 |
426.0 |
200 |
||
|
VFD500-220G/250PT4 |
280 |
425.0 |
426.0 |
465.0 |
220 |
SIZE K |
|
|
VFD500-250G/280PT4 |
315 |
479.0 |
465.0 |
520.0 |
250 |
||
|
VFD500-280G/315PT4 |
350 |
532.0 |
520.0 |
585.0 |
280 |
SIZE L |
|
|
VFD500-315G/355PT4 |
385 |
585.0 |
585.0 |
650.0 |
315 |
||
|
VFD500-355G/400PT4 |
420 |
638.0 |
650.0 |
725.0 |
355 |
SIZE M |
|
|
VFD500-400G/450PT4 |
470 |
714.0 |
725.0 |
820.0 |
400 |
||
|
VFD500-450G/500PT4 |
530 |
800.0 |
820.0 |
/ |
450 |
SIZE N |
|
|
VFD500-500G/560PT4 |
580 |
880.0 |
900.0 |
/ |
500 |
||
|
VFD500-560G/630PT4 |
630 |
950.0 |
980.0 |
/ |
560 |
SIZE O |
|
|
VFD500-630GT4 |
710 |
1080 |
1120. |
/ |
630 |
SIZE O |
|
|
VFD500-710GT4 |
790 |
1200 |
1260 |
/ |
710 |
SIZE O |
|
|
Single phase: 220V, 50/60HZ |
|||||||
|
VFD500-R40GS2 |
1.3 |
6.0 |
3.2 |
5.6 |
0.4 |
SIZE A |
Inbuilt |
|
VFD500-R75GS2 |
2.4 |
11.0 |
5.6 |
8.0 |
0.75 |
SIZE A |
|
|
VFD500-1R5GS2 |
3.5 |
15.0 |
8.0 |
10.6 |
1.5 |
SIZE A |
|
|
VFD500-2R2GS2 |
5.5 |
25.0 |
10.6 |
14.0 |
2.2 |
SIZE A |
|
|
VFD500-4R0GS2 |
7.7 |
35.0 |
17.0 |
23.0 |
4.0 |
SIZE B |
|
|
VFD500-5R5GS2 |
8.9 |
53.0 |
25.0 |
31.0 |
5.5 |
SIZE C |
|
|
VFD500-7R5GS2 |
11 |
67.0 |
32.0 |
37.0 |
7.5 |
SIZE C |
|
Product Application
FAQ:
1. What voltage range can you support?
Single-phase 220v input, single-phase 220v output;
Single-phase 220v input, three-phase 220v output;
Three-phase 220v input, three-phase 220v output;
Single-phase 220v input, three-phase 380v output;
2. What is the standard of package?
Below 37kw, it's carton package; 45kw and above, it's wooden package.
3. Do you accept OEM business?
We accept OEM and ODM with your autherization.
