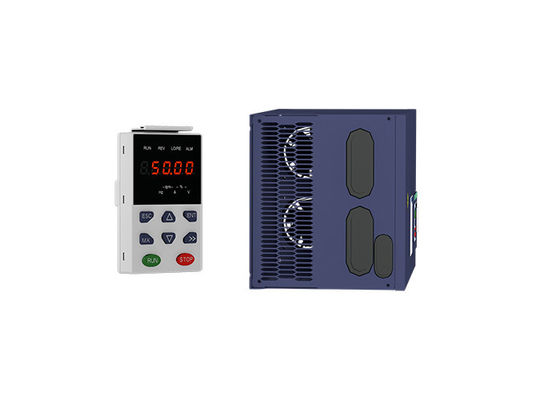

Triple Output 45A 22KW 30hp VFD Variable Frequency Drive For Single Phase Motor
| Place of Origin | China |
|---|---|
| Brand Name | VEIKONG |
| Certification | CE |
| Model Number | VFD500 |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | Carton and Wooden Box |
| Delivery Time | 3 days, depend on the order quantity |
| Payment Terms | Western Union, T/T, L/C, D/A, D/P, PayPal |
| Supply Ability | 15000pcs per Month |
Product Details
| Product Name | 22KW 30hp VFD Variable Frequency Drive | Current | 45A |
|---|---|---|---|
| IGBT | FUJI, Infineon | Weight | 10kg |
| Application | Pump,Motor And Pump,Compressor Etc,Chemical,motor | Output Type | Triple |
| High Light | 45A VFD Variable Frequency Drive,Single Phase Motor 30hp vfd,Triple Output 30hp VFD |
||
Product Description
22KW 30hp Frequency VFD Variable Frequency Drive For AC Motor Equipment
Product Advantage
Compact and powerful
High starting torque, adapt to various loads
Supports programmable operation control, making complex applications easier
Stronger overload capacity, shorter acceleration time
Built-in PID function for full-closed-loop control
Comprehensive protection function, more reliable operation
Technical Specifications
Control mode: V/F, SVC, VC
Operating mode: Speed control, Torque contro (SVC and VC)
Speed range: 1:100 (V/F), 1:200 (SVC), 1:1000 (VC)
Frequency range: 0-600Hz (V/F), 0-200Hz (SVC), 0-400 (VC)
Startup torque: 150%/0.5Hz (V/F), 180%/0.25Hz (SVC), 200%/0Hz (VC)
Input terminal:
Standard:
5 digital input terminals, one of which supports high-speed pulse input up to 50kHz;
2 analog input terminals, support 0 ~ 10V voltage input or 0 ~ 20mA current input;
Option card:
4 digital input terminals
2 analog input terminals.support-10V-+10V voltage input
Output terminal:
Standard:
1 digital output terminal;
1 high-speed pulse output terminal (open collector type), support 0 ~ 50kHz square wave signal output;
1 relay output terminal(second relay is an option )
2 analog output terminals, support 0 ~ 20mA current output or 0 ~ 10V voltage output;
Option card: 4 digital output terminals
Model Range
|
Model |
Power capacity (KVA) |
Input current (A) |
Output current(A) |
Adaptable Motor (KW) |
SIZE |
Brake Unit |
|
|
Heavy load |
Light load |
||||||
|
Three phase: 380-480V,50/60Hz |
|||||||
|
VFD500-R75GT4B |
1.5 |
3.4 |
2.5 |
4.2 |
0.75 |
SIZE A |
Internal |
|
VFD500-1R5GT4B |
3 |
5 |
4.2 |
5.6 |
1.5 |
||
|
VFD500-2R2GT4B |
4 |
5.8 |
5.6 |
9.4 |
2.2 |
||
|
VFD500-4R0G/5R5PT4B |
5.9 |
10.5 |
9.4 |
13.0 |
3.7 |
||
|
VFD500-5R5G/7R5PT4B |
8.9 |
14.6 |
13.0 |
17.0 |
5.5 |
SIZE B |
|
|
VFD500-7R5G/011PT4B |
11 |
20.5 |
17.0 |
23.0 |
7.5 |
||
|
VFD500-011G/015PT4B |
17 |
26.0 |
25.0 |
31.0 |
11 |
SIZE C |
Internal |
|
VFD500-015G/018PT4B |
21 |
35.0 |
32.0 |
37.0 |
15 |
||
|
VFD500-018G/022PT4B |
24 |
38.5 |
37.0 |
45.0 |
18.5 |
SIZE D |
|
|
VFD500-022G/030PT4B |
30 |
46.5 |
45.0 |
57.0 |
22 |
||
|
VFD500-030G/037PT4 |
40 |
62.0 |
60.0 |
75.0 |
30 |
SIZE E |
option |
|
VFD500-037G/045PT4 |
50 |
76.0 |
75.0 |
87.0 |
37 |
||
|
VFD500-045G/055PT4 |
60 |
92.0 |
90.0 |
110.0 |
45 |
SIZE F |
|
|
VFD500-055G/075PT4 |
75 |
113.0 |
110.0 |
135.0 |
55 |
||
|
VFD500-075G/090PT4 |
104 |
157.0 |
152.0 |
165.0 |
75 |
SIZE G |
|
|
VFD500-090G/110PT4 |
112 |
170.0 |
176.0 |
210.0 |
90 |
External |
|
|
VFD500-110G/132PT4 |
145 |
220.0 |
210.0 |
253.0 |
110 |
SIZE H |
|
|
VFD500-132G/160PT4 |
170 |
258.0 |
253.0 |
304.0 |
132 |
SIZE I |
|
|
VFD500-160G/185PT4 |
210 |
320.0 |
304.0 |
360.0 |
160 |
||
|
VFD500-185G/200PT4 |
245 |
372.0 |
360.0 |
380.0 |
185 |
SIZE J |
|
|
VFD500-200G/220PT4 |
250 |
380.0 |
380.0 |
426.0 |
200 |
||
|
VFD500-220G/250PT4 |
280 |
425.0 |
426.0 |
465.0 |
220 |
SIZE K |
|
|
VFD500-250G/280PT4 |
315 |
479.0 |
465.0 |
520.0 |
250 |
||
|
VFD500-280G/315PT4 |
350 |
532.0 |
520.0 |
585.0 |
280 |
SIZE L |
|
|
VFD500-315G/355PT4 |
385 |
585.0 |
585.0 |
650.0 |
315 |
||
|
VFD500-355G/400PT4 |
420 |
638.0 |
650.0 |
725.0 |
355 |
SIZE M |
|
|
VFD500-400G/450PT4 |
470 |
714.0 |
725.0 |
820.0 |
400 |
||
|
VFD500-450G/500PT4 |
530 |
800.0 |
820.0 |
/ |
450 |
SIZE N |
|
|
VFD500-500G/560PT4 |
580 |
880.0 |
900.0 |
/ |
500 |
||
|
VFD500-560G/630PT4 |
630 |
950.0 |
980.0 |
/ |
560 |
SIZE O |
|
|
VFD500-630GT4 |
710 |
1080 |
1120. |
/ |
630 |
SIZE O |
|
|
VFD500-710GT4 |
790 |
1200 |
1260 |
/ |
710 |
SIZE O |
|
|
Single phase: 220V, 50/60HZ |
|||||||
|
VFD500-R40GS2 |
1.3 |
6.0 |
3.2 |
5.6 |
0.4 |
SIZE A |
Inbuilt |
|
VFD500-R75GS2 |
2.4 |
11.0 |
5.6 |
8.0 |
0.75 |
SIZE A |
|
|
VFD500-1R5GS2 |
3.5 |
15.0 |
8.0 |
10.6 |
1.5 |
SIZE A |
|
|
VFD500-2R2GS2 |
5.5 |
25.0 |
10.6 |
14.0 |
2.2 |
SIZE A |
|
|
VFD500-4R0GS2 |
7.7 |
35.0 |
17.0 |
23.0 |
4.0 |
SIZE B |
|
|
VFD500-5R5GS2 |
8.9 |
53.0 |
25.0 |
31.0 |
5.5 |
SIZE C |
|
|
VFD500-7R5GS2 |
11 |
67.0 |
32.0 |
37.0 |
7.5 |
SIZE C |
|
Product Application
FAQ:
1. What voltage range can you support?
Single-phase 220v input, single-phase 220v output;
Single-phase 220v input, three-phase 220v output;
Three-phase 220v input, three-phase 220v output;
Single-phase 220v input, three-phase 380v output;
2. What is the standard of package?
Below 37kw, it's carton package; 45kw and above, it's wooden package.
3. Do you accept OEM business?
We accept OEM and ODM with your autherization.
