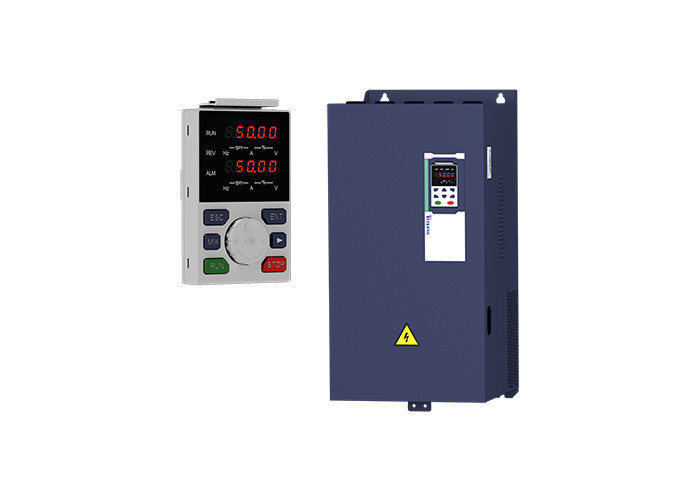

18.5kw 25hp AC drive vfd variable speed drive single phase three phase

Place of Origin	China
Brand Name	VEIKONG
Certification	CE
Model Number	VFD500
Minimum Order Quantity	1
Price	Negotiable
Packaging Details	the power less than 45kw use Carton, starting from 45kw use Wooden case
Delivery Time	3 days, depend on the order quantity
Payment Terms	L/C, T/T, Western Union
Supply Ability	15000pcs per Month

Product Details

Product Description

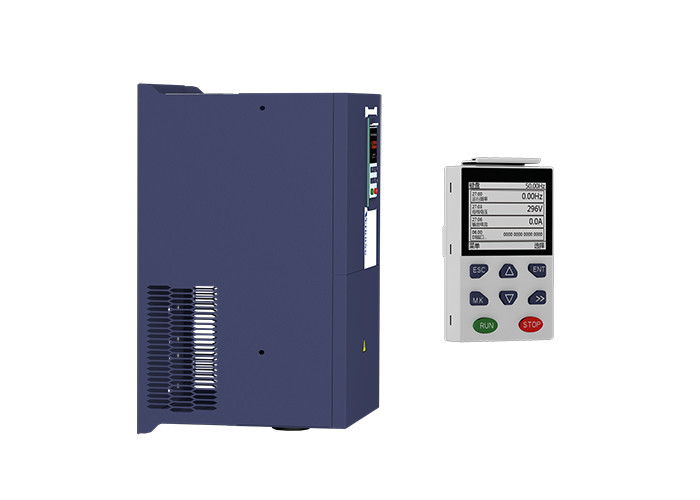

18.5kw 25hp AC drive vfd variable speed drive single phase three phase

Features

It adopts DSP as the core control unit to realize high - speed high - performance control.

◆ Speed control: no PG vector control, PG vector control, V/F control.

◆ The low frequency 0.25Hz and 180% torque output are realized under the non - inductive vector.

◆ The simple PLC function can achieve up to 16 speed control.

◆ The multi-lingual humanized display menu, highlight OLED and display 3 sets of state parameters.

◆ The "one key flying shuttle" keyboard can fly freely.

◆ Optimized air duct design and advanced thermal management technology.

◆ The design of reliable insulation structure ensures the safety of the inverter.

◆ The fully isolated RS485 communication module can be selected to communicate with the upper computer.

◆ We will strengthen the coating and adapt to all kinds of harsh environment.

◆ Relying on EMC design standard and unique software algorithm, the inverter can minimize the pollution of power supply.

VFD500 parameter distribution list

Classification	Parameter group	Page
Common parameters	00:Basic function	Page 30
	01:Frequency source selection	Page 32
	02:Start and stop	Page 37
	03:Ramp and S curve	Page 39
	04: Analog and pulse input	Page 41
	05:Analog and pulse output	Page 45
	06: Multi-function Digital input (DI)	Page 46
	07: Multi-function Digital output(DO)	Page 49
	08:Digital Output setting	Page 51
Motor control	10:Encoder type	Page 53
	11:Motor1 parmeter	Page 54
	12:Motor1 VFcontrol parameter	Page 56
	13:Motor1 Vector controlparameter	Page 58
	14:Torque control	Page 59
	16:Energy saving control	Page 61
Display and protection	20:User-defined parameters	Page 62
	21:Keypad and display	Page 63
	22:AC Drive configuration	Page 65
	23:Drive protection function setting	Page 67
	24:Motor protection parameter	Page 70
	25:Fault tracking parameter	Page 72
	26:Fault recording parameter	Page 72
	27:Monitoring parameter	Page 74
Communication	30:Modbus communication	Page 75
Application	40:Process PID Function	Page 77
	41:Sleep function	Page 81
	42:Simple PLC	Page 82
	43:Programmable delay unit	Page 84
	44:Comparator and logic unit/controller	Page 86
	45:Multifunction counter	Page 90
Motor 2	60:Motor2 basic parameter	Page 91
	61:Motor2 parameter	Page 91
	62:Motor2 VF control parameter	Page 92
	63:Motor2 vector control parameter	Page 92

Techincal Parameters:

Item		Specifiation
Input	Inuput Voltage	1phase/3phase 220V:200V～240V 3 phase 380V-480V:380V～480V
	Allowed Voltage fluctuation range	-15%～10%
	Input frequency	50Hz / 60Hz,fluctuation less than 5%
Output	Output Voltage	3phase:0～input voltage
	Overload capacity	General purpose application:60S for 150% of the rated current Light load application:60S for 120% of the rated current
Control	Control mode	V/f control Sensorless flux vector control without PG card(SVC) Sensor speed flux vector control with PG card (VC)
	Operating mode	Speed control,Torque control(SVC and VC)
	Speed range	1:100 (V/f) 1:200( SVC) 1:1000 (VC)
	Speed control accuracy	±0.5% (V/f) ±0.2% (SVC) ±0.02% (VC)
	Speed response	5Hz(V/f) 20Hz(SVC) 50Hz(VC)
	frequency range	0.00～600.00Hz(V/f) 0.00～200.00Hz(SVC) 0.00～400.00Hz(VC)

18.5kw 25hp AC drive vfd variable speed drive single phase three phase

VEIKONG VFD APPLICATION:
