11KW VFD AC inverter frequency drive vector control big output torque
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VFD500
Minimum Order Quantity 1
Price Negotiable
Packaging Details the power less than 45kw use Carton, starting from 45kw use Wooden case
Delivery Time 3 days, depend on the order quantity
Payment Terms L/C, T/T, Western Union
Supply Ability 15000pcs per Month
Product Details
Product Name 11kw Inverter Power 11kw/15hp
Output Voltage 220V/240V/380v/480v Type AC Inverters
Protection Overload,Overvoltage,IP20,Short Circuit,over Heat Application Motor
Product Description

11KW VFD AC inverter frequency drive vector control big output torque



VEIKONG VFD500 series inverter is the product developed on the platform of VEIKONG latest high-performance vector technology.

It not only adopts the internationally leading filed-orientation vector control technology, but also makes the most reasonable layout of components under the premise of high-performance and high-reliability.

Besides, to strengthen the usability and industrial specialization, it is equipped with rich extension interfaces and new extension accessories, realizing the features of high performance, high reliability, high power density and high usability.





Features

  1. High-performance vector universal platform, brand new motor control algorithm.
  2. Synchronous and asynchronous drives are integrated, open loop and closed loop are comprehensive.
  3. Software and hardware modular design requirements, strong expansion capabilities.
  4. Rich interface accessories, covering various applications.
  5. Book design, save installation space.
  6. Optimize the convenient keyboard design, support the new external keyboard.
  7. The upper and lower straight ventilation ducts are designed to dissipate heat by DC fans.
  8. PCB spraying three-proof paint to ensure product stability and reliability.





VFD500 parameter distribution list



Classification Parameter group Page
Common parameters 00:Basic function Page 30
01:Frequency source selection Page 32
02:Start and stop Page 37
03:Ramp and S curve Page 39
04: Analog and pulse input Page 41
05:Analog and pulse output Page 45
06: Multi-function Digital input (DI) Page 46
07: Multi-function Digital output(DO) Page 49
08:Digital Output setting Page 51
Motor control 10:Encoder type Page 53
11:Motor1 parmeter Page 54
12:Motor1 VFcontrol parameter Page 56
13:Motor1 Vector controlparameter Page 58
14:Torque control Page 59
16:Energy saving control Page 61
Display and protection 20:User-defined parameters Page 62
21:Keypad and display Page 63
22:AC Drive configuration Page 65
23:Drive protection function setting Page 67
24:Motor protection parameter Page 70
25:Fault tracking parameter Page 72
26:Fault recording parameter Page 72
27:Monitoring parameter Page 74
Communication 30:Modbus communication Page 75
Application 40:Process PID Function Page 77
41:Sleep function Page 81
42:Simple PLC Page 82
43:Programmable delay unit Page 84
44:Comparator and logic unit/controller Page 86
45:Multifunction counter Page 90
Motor 2 60:Motor2 basic parameter Page 91
61:Motor2 parameter Page 91
62:Motor2 VF control parameter Page 92
63:Motor2 vector control parameter Page 92





Techincal Parameters:



Item Specifiation
Input Inuput Voltage

1phase/3phase 220V:200V~240V

3 phase 380V-480V:380V~480V

  Allowed Voltage fluctuation range -15%~10%
  Input frequency 50Hz / 60Hz,fluctuation less than 5%
Output Output Voltage 3phase:0~input voltage
  Overload capacity

General purpose application:60S for 150% of the rated current

Light load application:60S for 120% of the rated current

Control Control mode

V/f control

Sensorless flux vector control without PG card(SVC)

Sensor speed flux vector control with PG card (VC)

  Operating mode Speed control,Torque control(SVC and VC)
  Speed range

1:100 (V/f)

1:200( SVC)

1:1000 (VC)

  Speed control accuracy

±0.5% (V/f)

±0.2% (SVC)

±0.02% (VC)

  Speed response

5Hz(V/f)

20Hz(SVC)

50Hz(VC)

  frequency range

0.00~600.00Hz(V/f)

0.00~200.00Hz(SVC)

0.00~400.00Hz(VC)

Maincontrol function Jog control, droop control, up to 16-speed operation, dangerous speed avoidance, swing frequency operation, acceleration and deceleration time switching, VF separation, over excitation braking, process PID control, sleep and wake-up function, built-in simple PLC logic, virtual Input and output terminals, built-in delay unit, built-in comparison unit and logic unit, parameter backup and recovery, perfect fault record,fault reset, two groups of motor parameters free switching, software swap output wiring, terminals UP / DOWN

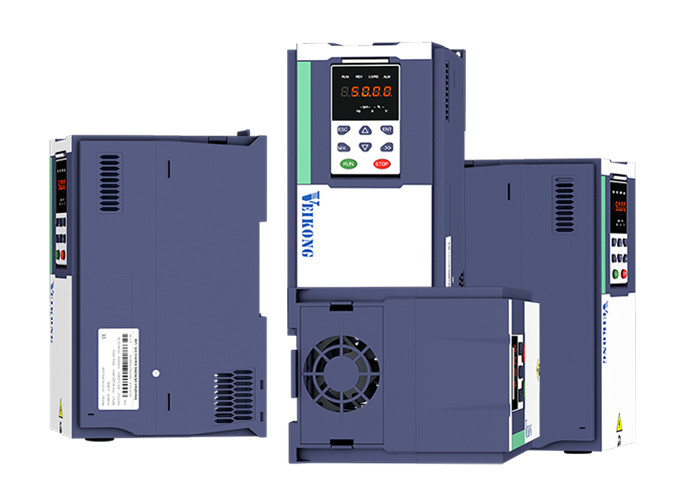

11KW VFD AC inverter frequency drive vector control big output torque

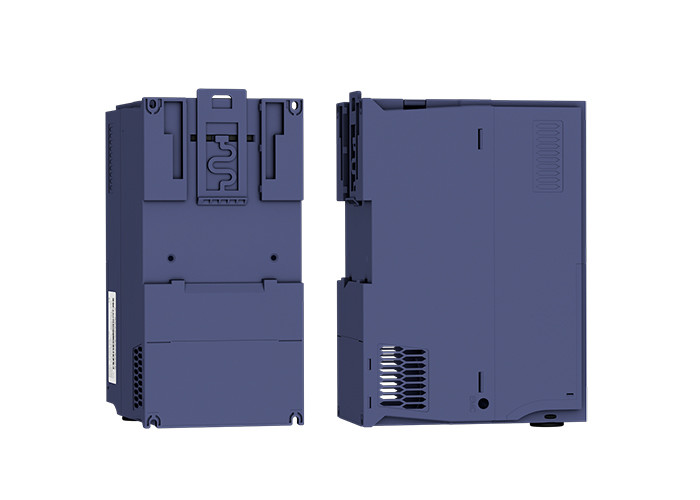

11KW VFD AC inverter frequency drive vector control big output torque
