Place of Origin | China |
---|---|
Brand Name | VEIKONG |
Certification | CE |
Model Number | VFD500-PV |
Minimum Order Quantity | 1 |
Price | Negotiable |
Packaging Details | the power less than 45kw use Carton, starting from 45kw use Wooden case |
Delivery Time | 3 days, depend on the order quantity |
Payment Terms | L/C, T/T, Western Union |
Supply Ability | 15000pcs per Month |
Product Name | 0.75kw 1hp Vfd | Voltage | 220v/380v |
---|---|---|---|
Power | 0.75kw/1hp | Frequency | 0-2000hz |
Display | LED,LCD | Control Mode | V/F Control Vsd,vector Control |

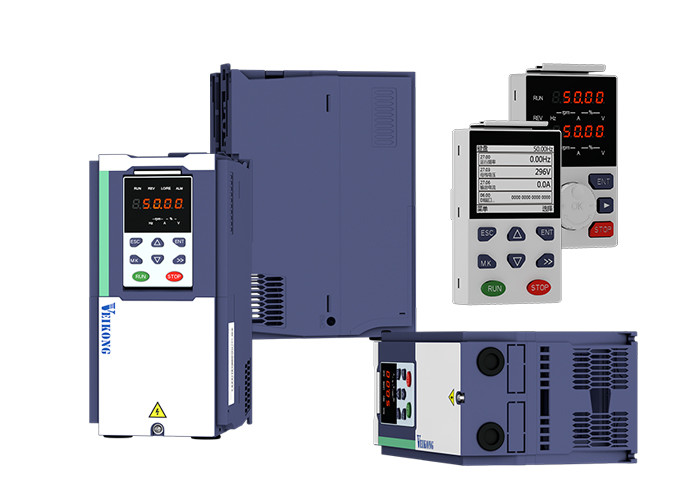

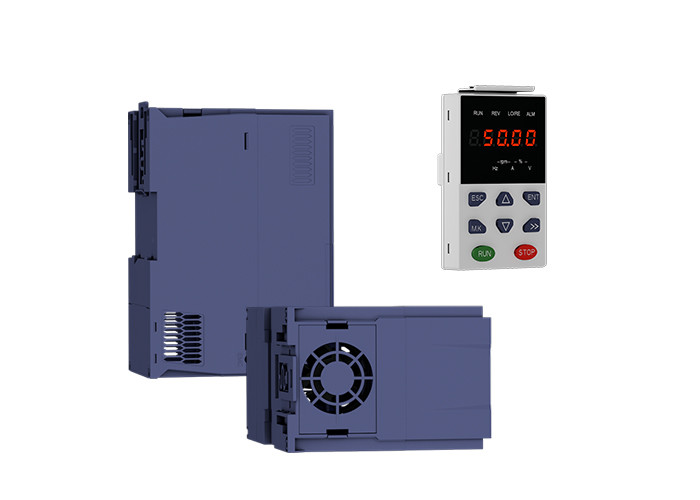

220v single phase vfd 0.75kw 1hp variable frequency drive inverters
Features
1. VF and Sensorless Vector Control
2. Up to 0Hz/200% starting torque
3. Built-in braking unit (≤30kW), Optional external braking unit (≥37kW)
4. External LCD keypad to copy parameters(≥18.5kW), Standard membrane keypad design(≤15kW), Optional LCD keypad provided
5. Standard C3 filters; Optional C2 filters
6. Accurate parameters auto tuning and better motor drive
7. Simple water supply function
8. Support G/P dual rating
9. Customization services provided (like PTC )
10. CE requirements certified
Applications
Air Compressor, Oil, Warming and Water Supply, Plastics Machine, Mine, Fans and Water Pumps.
Techincal Parameters:
Item | Specifiation | |
Input | Inuput Voltage |
1phase/3phase 220V:200V~240V 3 phase 380V-480V:380V~480V |
Allowed Voltage fluctuation range | -15%~10% | |
Input frequency | 50Hz / 60Hz,fluctuation less than 5% | |
Output | Output Voltage | 3phase:0~input voltage |
Overload capacity |
General purpose application:60S for 150% of the rated current Light load application:60S for 120% of the rated current |
|
Control | Control mode |
V/f control Sensorless flux vector control without PG card(SVC) Sensor speed flux vector control with PG card (VC) |
VFD500 series instruction
Model |
Power capacity (KVA) |
Input current (A) |
Output current(A) |
Adaptable Motor (KW) |
SIZE | Brake Unit | |
Heavy load | Light load | ||||||
Three phase: 380-480V,50/60Hz | |||||||
VFD500-R75GT4B | 1.5 | 3.4 | 2.5 | 4.2 | 0.75 | SIZE A | Internal |
VFD500-1R5GT4B | 3 | 5 | 4.2 | 5.6 | 1.5 | ||
VFD500-2R2GT4B | 4 | 5.8 | 5.6 | 9.4 | 2.2 | ||
VFD500-4R0G/5R5PT4B | 5.9 | 10.5 | 9.4 | 13.0 | 3.7 | ||
VFD500-5R5G/7R5PT4B | 8.9 | 14.6 | 13.0 | 17.0 | 5.5 | SIZE B | |
VFD500-7R5G/011PT4B | 11 | 20.5 | 17.0 | 23.0 | 7.5 | ||
VFD500-011G/015PT4B | 17 | 26.0 | 25.0 | 31.0 | 11 | SIZE C | Internal |
VFD500-015G/018PT4B | 21 | 35.0 | 32.0 | 37.0 | 15 | ||
VFD500-018G/022PT4B | 24 | 38.5 | 37.0 | 45.0 | 18.5 | SIZE D | |
VFD500-022G/030PT4B | 30 | 46.5 | 45.0 | 57.0 | 22 | ||
VFD500-030G/037PT4 | 40 | 62.0 | 60.0 | 75.0 | 30 | SIZE E | option |
VFD500-037G/045PT4 | 50 | 76.0 | 75.0 | 87.0 | 37 | ||
VFD500-045G/055PT4 | 60 | 92.0 | 90.0 | 110.0 | 45 | SIZE F | |
VFD500-055G/075PT4 | 85 | 113.0 | 112.0 | 135.0 | 55 | ||
VFD500-075G/090PT4 | 104 | 157.0 | 152.0 | 165.0 | 75 | SIZE G | |
VFD500-090G/110PT4 | 112 | 170.0 | 176.0 | 210.0 | 90 | ||
VFD500-110G/132PT4 | 145 | 220.0 | 210.0 | 253.0 | 110 | SIZE H | External |
VFD500-132G/160PT4 | 170 | 258.0 | 253.0 | 304.0 | 132 | SIZE I | |
VFD500-160G/185PT4 | 210 | 320.0 | 304.0 | 360.0 | 160 | ||
VFD500-185G/200PT4 | 245 | 372.0 | 360.0 | 380.0 | 185 | SIZE J | |
VFD500-200G/220PT4 | 250 | 380.0 | 380.0 | 426.0 | 200 | ||
VFD500-220G/250PT4 | 280 | 425.0 | 426.0 | 465.0 | 220 | SIZE K | |
VFD500-250G/280PT4 | 315 | 479.0 | 465.0 | 520.0 | 250 | ||
VFD500-280G/315PT4 | 350 | 532.0 | 520.0 | 585.0 | 280 | SIZE L | |
VFD500-315G/355PT4 | 385 | 585.0 | 585.0 | 650.0 | 315 | ||
VFD500-355G/400PT4 | 420 | 638.0 | 650.0 | 725.0 | 355 | SIZE M | |
VFD500-400G/450PT4 | 470 | 714.0 | 725.0 | 820.0 | 400 | ||
VFD500-450G/500PT4 | 630 | 790.0 | 820.0 | 860.0 | 450 | ||
VFD500-500G/560PT4 | 700 | 835.0 | 860.0 | 950.0 | 500 | ||
VFD500-560G/630PT4 | 784 | 920.0 | 950.0 | 1100.0 | 560 | SIZE N |
VEIKONG VFD replace famous brand VFD
