Place of Origin | CHINA |
---|---|
Brand Name | VEIKONG |
Certification | CE, ROHS |
Model Number | VFD500 |
Minimum Order Quantity | 1 |
Price | negotiable |
Packaging Details | <45kw inverter be used carton package, ≥45kw be used wood case package |
Delivery Time | depends on quantities |
Payment Terms | T/T, Western Union, L/C |
Supply Ability | 1000 units per week |
Product Name | Variable Frequency Drive | Power | 0.75kw-710kw |
---|---|---|---|
Current | 2.5A-950A | Frequency | 0-2000HZ |
Control Mode | V/f Control, Vector Control | Communciaton | Modbus485 Canopen Profinet |
High Light | 710kw Variable Frequency Drive,710kw automation direct vfd,0.75kw Automation Direct VFD |

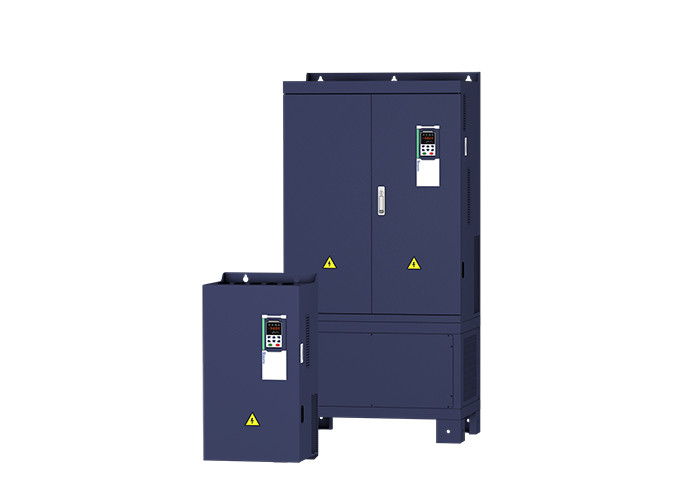

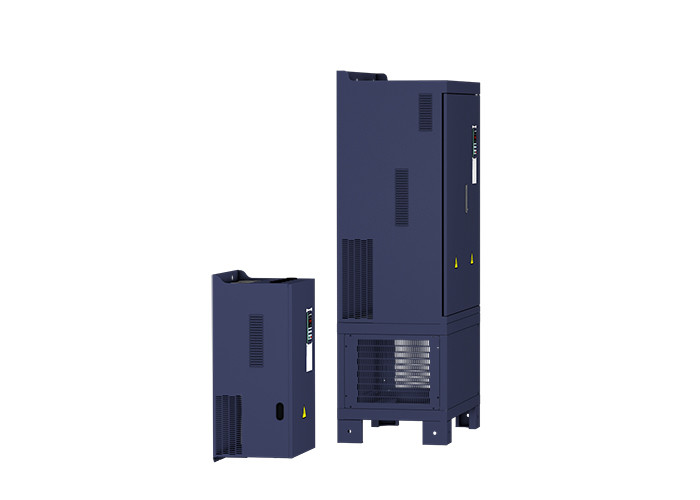

220v/ 380v 0.75kw-710kw vfd ac drive Inverter with LCD keypad
Strong R&D Power
Board design: ECAD design platform-Mentor, Network design constraint Netclass(set network width and distance)
Shematic diagram interdesign with PCB to a perfect extent with complete serious checking function
Power module design platform-heat model design
Power Electronics design-IGBT Pulse Test
Software design: powerful function:Simulink-MotorConrol simulation platform
Item |
Specifiation |
|
Input |
Inuput Voltage |
1phase/3phase 220V:200V~240V 3 phase 380V-480V:380V~480V |
|
Allowed Voltage fluctuation range |
-15%~10% |
|
Input frequency |
50Hz / 60Hz,fluctuation less than 5% |
Output |
Output Voltage |
3phase:0~input voltage |
|
Overload capacity |
General purpose application:60S for 150% of the rated current Light load application:60S for 120% of the rated current |
Control |
Control mode |
V/f control Sensorless flux vector control without PG card(SVC) Sensor speed flux vector control with PG card (VC) |
|
Operating mode |
Speed control,Torque control(SVC and VC) |
|
Speed range |
1:100 (V/f) 1:200( SVC) 1:1000 (VC) |
|
Speed control accuracy |
±0.5% (V/f) ±0.2% (SVC) ±0.02% (VC) |
|
Speed response |
5Hz(V/f) 20Hz(SVC) 50Hz(VC) |
|
frequency range |
0.00~600.00Hz(V/f) 0.00~200.00Hz(SVC) 0.00~400.00Hz(VC) |
|
Input frequency resolution |
Digital setting: 0.01 Hz Analog setting: maximum frequency x 0.1% |
|
Startup torque |
150%/0.5Hz(V/f) 180%/0.25Hz(SVC) 200%/0Hz(VC) |
|
Torque control accuracy |
SVC:within 5Hz10%,above 5Hz5% VC:3.0% |
|
V/f curve |
V / f curve type: straight line, multipoint, power function, V / f separation; Torque boost support: Automatic torque boost (factory setting), manual torque boost |
|
Frequency giving ramp |
Support linear and S curve acceleration and deceleration; 4 groups of acceleration and deceleration time, setting range 0.00s ~ 60000s |
|
DC bus voltage control |
Overvoltage stall control: limit the power generation of the motor by adjusting the output frequency to avoid skipping the voltage fault;
Undervoltage stall control: control the power consumption of the motor by adjusting the output frequency to avoid yaw failure
VdcMax Control: Limit the amount of power generated by the motor by adjusting the output frequency to avoid over-voltage trip; VdcMin control: Control the power consumption of the motor by adjusting the output frequency, to avoid jump undervoltage fault |
|
Carrier frequency |
1kHz~12kHz(Varies depending on the type) |
|
Startup method |
Direct start (can be superimposed DC brake); speed tracking start |
Replace famous brands vfd in general application.
