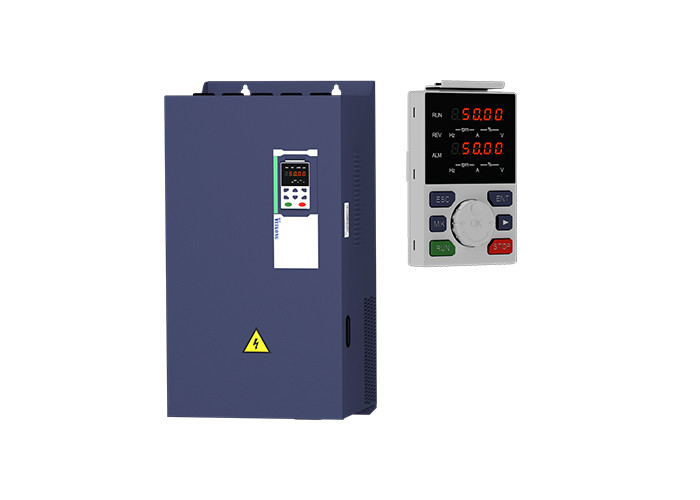

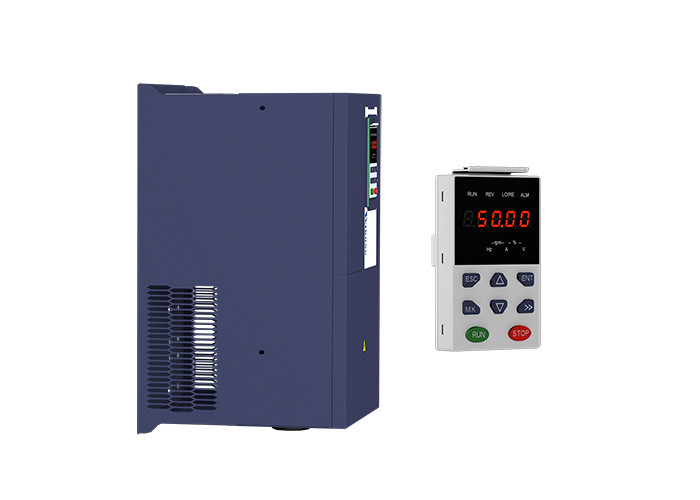

Big Power 132kw 180hp VFD Variable Frequency Drive For Crusher

Place of Origin	CHINA
Brand Name	VEIKONG
Certification	CE, ROHS
Model Number	VFD500-132G/160GT4
Minimum Order Quantity	1
Price	negotiable
Packaging Details	＜45kw inverter be used carton package, ≥45kw be used wood case package
Delivery Time	depends on quantities
Payment Terms	T/T, Western Union, L/C
Supply Ability	1000 units per week

Product Details

Voltage	380v/480v	Power	132Kw
Application	Crusher	Warranty	18 Months
Display	LED,LCD	Igbt	Infineon
High Light	180hp VFD Variable Frequency Drive , 132kw VFD Variable Frequency Drive , Crusher Variable Frequency Drive

Product Description

VFD132kw 180hp Variable Frequency Drive Inverters for crusher

Advantages of VFD Variable Frequency Drive

1. Compact Structure Feature Concise

2. Excellent Performance Stable Quality

3. Output Voltage Stabilization AVR Funtion

4. Wide Voltage Input

5. Support Keyboard Exportation

6. Double Analog Input

7. Built-in Filter

8. Built-in PID Controller

	Stop method	Deceleration stop (can be superimposed DC braking); free to stop
	Maincontrol function	Jog control, droop control, up to 16-speed operation, dangerous speed avoidance, swing frequency operation, acceleration and deceleration time switching, VF separation, over excitation braking, process PID control, sleep and wake-up function, built-in simple PLC logic, virtual Input and output terminals, built-in delay unit, built-in comparison unit and logic unit, parameter backup and recovery, perfect fault record,fault reset, two groups of motor parametersfreeswitching, software swap output wiring, terminals UP / DOWN
Function	Keypad	LED Digital keyboard and LCD keypad(option)
	Communication	Standard: MODBUS communication CAN OPEN AND PROFINET( IN DEVELOPMENT)
	PG card	Incremental Encoder Interface Card (Differential Output and Open Collector), Rotary transformer Card
	Input terminal	Standard: 5 digital input terminals, one of which supports high-speed pulse input up to 50kHz; 2 analog input terminals, support 0 ~ 10V voltage input or 0 ~ 20mA current input; Option card: 4 digital input terminals 2 analog input terminals.support-10V-+10V voltage input
	Output terminal	standard: 1 digital output terminal; 1 high-speed pulse output terminal (open collector type), support 0 ~ 50kHz square wave signal output; 1 relay output terminal(second relay is an option ) 2 analog output terminals, support 0 ~ 20mA current output or 0 ~ 10V voltage output; Option card: 4 digital output terminals
Protection	Refer to Chapter 6 "Troubleshooting and Countermeasures" for the protection function
Environment	Installation location	Indoor, no direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapor, drip or salt.
	Altitude	0-3000m.inverter will be derated if altitude higher than1000m and rated output current will reduce by 1% if altitude increase by 100m
	Ambient temperature	-10°C~ +40°C,maximum 50°C (derated if the ambient temperature is between 40°C and 50°C)Rated output current decrease by 1.5% if temperature increase by 1°C
	Humidity	Less than 95%RH, without condensing
	Vibration	Less than 5.9 m/s²(0.6 g)
	Storage temperature	-20°C ~ +60°C
Others	Installation	Wall-mounted, floor-controlled cabinet, transmural
	Protection level	IP20
	cooling method	Forced air cooling
EMC	CE ROHS	Internal EMC filter Complies with EN61800-3 Category C3 3^rd Environment
