Place of Origin  CHINA

Brand Name  VEIKONG
Certification  CE, ROHS
Model Number  VFD500011G/015GT4B
Minimum Order Quantity  1
Price  Please contact quotation
Packaging Details  ＜45kw inverter be used carton package, ≥45kw be used wood case package
Delivery Time  depends on quantities
Payment Terms  T/T, Western Union, L/C
Supply Ability  1000 units per week
Name  10hp Vfd  Power  7.5kw/10hp

Control Mode  V/f Control, Vector Control  Output Frequency  50Hz/60Hz
Protection  Overload,Overvoltage,IP20,Short Circuit,over Heat  Application  Pump,Motor And Pump,Compressor Etc
High Light  Vector control 10 Hp Vfd,220v 10 Hp Vfd,10Hp vector control vfd

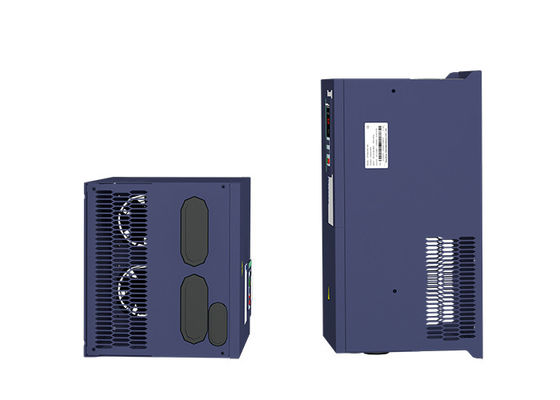

10HP vfd ac 220v single phase input 3 phase output frequency inverter
VEIKONG VFD500 features and technicail data
Item  Specifiation
Input  Inuput Voltage
1phase/3phase 220V:200V～240V 3 phase 380V480V:380V～480V
Allowed Voltage fluctuation range  15%～10%
Input frequency  50Hz / 60Hz,fluctuation less than 5%
Output  Output Voltage  3phase:0～input voltage
Overload capacity
General purpose application:60S for 150% of the rated current Light load application:60S for 120% of the rated current

Control  Control mode
V/f control Sensorless flux vector control without PG card(SVC) Sensor speed flux vector control with PG card (VC)
Operating mode  Speed control,Torque control(SVC and VC)
Speed range
1:100 (V/f) 1:200( SVC) 1:1000 (VC)

Speed control accuracy
±0.5% (V/f) ±0.2% (SVC) ±0.02% (VC)

Speed response
5Hz(V/f) 20Hz(SVC) 50Hz(VC)

frequency range
0.00～600.00Hz(V/f) 0.00～200.00Hz(SVC) 0.00～400.00Hz(VC)

Input frequency resolution
Digital setting: 0.01 Hz Analog setting: maximum frequency x 0.1%

Startup torque
150%/0.5Hz(V/f) 180%/0.25Hz(SVC) 200%/0Hz(VC)

Torque control accuracy
SVC:within 5Hz10%,above 5Hz5% VC:3.0%

V/f curve
V / f curve type: straight line, multipoint, power function, V / f separation; Torque boost support: Automatic torque boost (factory setting), manual torque boost

Frequency giving ramp
Support linear and S curve acceleration and deceleration; 4 groups of acceleration and deceleration time, setting range 0.00s ~ 60000s

DC bus voltage control
Overvoltage stall control: limit the power generation of the motor by adjusting the output frequency to avoid skipping the voltage fault;
Undervoltage stall control: control the power consumption of the motor by adjusting the output frequency to avoid yaw failure
VdcMax Control: Limit the amount of power generated by the motor by adjusting the output frequency to avoid overvoltage trip; VdcMin control: Control the power consumption of the motor by adjusting the output frequency, to avoid jump undervoltage fault

Carrier frequency  1kHz～12kHz(Varies depending on the type)
Startup method
Direct start (can be superimposed DC brake); speed tracking start
Stop method  Deceleration stop (can be superimposed DC braking); free to stop
Maincontrol function  Jog control, droop control, up to 16speed operation, dangerous speed avoidance, swing frequency operation, acceleration and deceleration time switching, VF separation, over excitation braking, process PID control, sleep and wakeup function, builtin simple PLC logic, virtual Input and output terminals, builtin delay unit, builtin comparison unit and logic unit, parameter backup and recovery, perfect fault record,fault reset, two groups of motor parametersfreeswitching, software swap output wiring, terminals UP / DOWN
Function  Keypad  LED Digital keyboard and LCD keypad(option)
Communication
Standard: MODBUS communication CAN OPEN AND PROFINET( IN DEVELOPMENT)

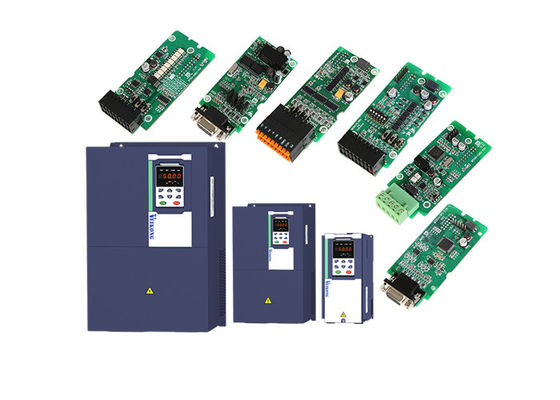

PG card  Incremental Encoder Interface Card (Differential Output and Open Collector), Rotary transformer Card
Input terminal
Standard: 5 digital input terminals, one of which supports highspeed pulse input up to 50kHz; 2 analog input terminals, support 0 ~ 10V voltage input or 0 ~ 20mA current input; Option card: 4 digital input terminals 2 analog input terminals.support10V+10V voltage input

Output terminal
standard: 1 digital output terminal; 1 highspeed pulse output terminal (open collector type), support 0 ~ 50kHz square wave signal output; 1 relay output terminal(second relay is an option ) 2 analog output terminals, support 0 ~ 20mA current output or 0 ~ 10V voltage output; Option card: 4 digital output terminals

Protection  Refer to Chapter 6 "Troubleshooting and Countermeasures" for the protection function
Environment  Installation location  Indoor, no direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapor, drip or salt.
Altitude  03000m.inverter will be derated if altitude higher than1000m and rated output current will reduce by 1% if altitude increase by 100m
Ambient temperature  10°C~ +40°C,maximum 50°C (derated if the ambient temperature is between 40°C and 50°C)Rated output current decrease by 1.5% if temperature increase by 1°C
Humidity  Less than 95%RH, without condensing
Vibration  Less than 5.9 m/s^{2 }(0.6 g)
Storage temperature  20°C ~ +60°C
Others  Installation  Wallmounted, floorcontrolled cabinet, transmural
Protection level  IP20
cooling method  Forced air cooling
EMC  CE ROHS
Internal EMC filter Complies with EN618003 Category C3 3^{rd} Environment
VEIKONG big power VFD250KW VFD355KW project
PID function
40 Group PID function
r40.00  PID final output value  Read only unit:0.1%    ●
r40.01  PID final set value  Read only unit:0.1%    ●
r40.02  PID final feedback value  Read only unit:0.1%    ●
r40.03  PID deviation value  Read only unit:0.1%    ●
P40.04  PID reference source
Unit’s digit:PID main reference source(ref1) 0:Digtital setting 1:AI1 2:AI2 3:AI3(IO expansion board) 4:AI4(IO expansion board) 5:HDI high frequency pulse 6:Communication Ten’s digit:PID Auxilary reference source(ref2)Same as Unit’s digit
00  ☆
P40.05  PID given feedback range  0.01～655.35  100.00  ☆
P40.06  PID digital setting 0  0.0～P40.05  0.0%  ☆
P40.07  PID digital setting 1  0.0～P40.05  0.0%  ☆
P40.08  PID digital setting 2  0.0～P40.05  0.0%  ☆
P40.09  PID digital setting 3  0.0～P40.05  0.0%  ☆
When PID reference source is digital setting, PID digital setting 0~3 depends on DI terminal function 43 (preset PID terminal I ) and 44 ( preset PID terminal 2):
For example: When AI1 is used as PID feedback, if the full range corresponds to 16.0kg pressure and require PID control to be 8.0kg; then set P40.05 PID feedback range to 16.00, PID digital reference terminal select to P40.06, Set P40.06 (PID preset setting 0) to be 8.00

When PID reference source is digital setting, PID digital setting 0~3 depends on DI terminal function 43 (preset PID terminal I ) and 44 ( preset PID terminal 2):
For example: When AI1 is used as PID feedback, if the full range corresponds to 16.0kg pressure and require PID control to be 8.0kg; then set P40.05 PID feedback range to 16.00, PID digital reference terminal select to P40.06, Set P40.06 (PID preset setting 0) to be 8.00


P40.10  PID reference source selection  0:ref1 1:ref1+ref2 2:ref1ref2 3:ref1*ref2 4:ref1/ref2 5:Min(ref1,ref2) 6:Max(ref1,ref2) 7(ref1+ref2)/2 8: fdb1and fdb2 switchover
0  ☆
P40.11  PID feedback source1
Unit’s digit 0:PID feedback source1(fdb1) 0:AI1 1:AI2 2:AI3(option card) 3:AI4(option card) 4: PLUSE(HDI) 5: Communication 6: Motor rated output current 7: Motor rated output frequency 8: Motor rated output torque 9: Motor rated output frequency Ten’s digit : PID feedback source2 (fdb2) Same as Unit’s digit
00  ☆
P40.13  PID feedback function selection  0:fdb1 1:fdb1+fdb2 2:fdb1fdb2 3:fdb1*fdb2 4:fdb1/fdb2 5:Min(fdb1,fdb2)Take fdb1.fdb2 smaller value 6:Max(fdb1,fdb2) Take fdb1.fdb2 bigger value 7: (ref1+ref2)/2 8: fdb1and fdb2 switchover
0  ☆
P40.14  PID output feature
0: PID output is positive: when the feedback signal exceeds the PID reference value, the output frequency of the inverter will decrease to balance the PID. For example, the strain PID control during wrapup 1: PID output is negative: When the feedback signal is stronger than the PID reference value, the output frequency of the inverter will increase to balance the PID. For example, the strain PID control during wrapdown
0  ☆
The PID output characteristic is determined by P40.14 and Di terminal 42 function PID positive/negative switching: P40.14 = 0 and "42: PID positive/negative switching" terminal is invalid: : PID output characteristic is positive P40.14 = 0 and "42: PID positive/negative switching" terminal is valid: : PID output characteristic is negative P40.14 = 1 and "42: PID positive/negative switching" terminal is invalid: : PID output characteristic is negative P40.14 = 1 and "42: PID positive/negative switching" terminal is valid: : PID output characteristic is positive

P40.15  Upper limit of PID output  100.0%～100.0%  100.0%  ☆
P40.16  lower limit of PID output  100.0%～100.0%  0.0%  ☆
P40.17  Proportaional gain KP1
0.00～10.00 The function is applied to the proportional gain P of PID input. P determines the strength of the whole PID adjuster. The parameter of 100 means that when the offset of PID feedback and given value is 100%, the adjusting range of PID adjust is the Max. frequency (ignoring integral function and differential function).

5.0%  ☆
P40.18  Integral time TI1
0.01s～10.00s This parameter determines the speed of PID adjustor to carry out integral adjustment on the deviation of PID feedback and reference. When the deviation of PID feedback and reference is 100%, the integral adjustor works continuously after the time (ignoring the proportional effect and differential effect) to achieve the Max. Frequency (P01.06) or the Max. Voltage (P12.21). Shorter the integral time, stronger is the adjustment

1.00s  ☆
P40.19  Differential time TD1
0.000s～10.000s This parameter determines the strength of the change ratio when PID adjustor carries out integral adjustment on the deviation of PID feedback and reference. If the PID feedback changes 100% during the time, the adjustment of integral adjustor (ignoring the proportional effect and differential effect) is the Max. Frequency (P01.06) or the Max. Voltage (P12.21). Longer the integral time, stronger is the adjusting.

0.000s  ☆
P40.20  Proportaional gain KP2  0.00～200.0%.  5.0%  ☆
P40.21  Integral time TI2
0.00s (no any integral effect )～20.00s

1.00s  ☆
P40.22  Differential time TD2  0.000s～0.100s  0.000s  ☆
P40.23  PID parameter switchover condition
0:no switchover Do not switch, use KP1, TI1, TD1 Switch by DI terminal KP1, TI1, TD1 are used when DI terminal No. 41 function is invalid; KP2, TI2, TD2 are used when valid The absolute value of PID command and feedback deviation is less than P40.24, using KP1, TI1, TD1; the absolute value of deviation is greater than P40.25, using KP2, TI2, TD2 parameters; the absolute value of deviation is between P40.24~P40.25, The two sets of parameters are linearly transitioned.
0  ☆
P40.24  PID parameter switchover devation 1  0.0%～P4025  20.0%  ☆
P40.25  PID parameter switchover devation 2  P4024～100.0%  80.0%  ☆
In some applications, one group PID parameter is not enough, different PID parameters would be adopted according to the situation. The function codes are used to switch two groups PID parameter. The setting mode of the regulator parameters P40.20~P40.22 is similar as P40.17~P40.19’s. Two groups PID parameter can be switched via DI terminal, or switched according to PID deviation automatically. When selection is automatic switching: when the deviation absolute value between given and feedback is smaller than P40.24 (PID parameter switching deviation 1), PID parameter selection is group 1. When the deviation absolute value between given and feedback is bigger than P40.25 (PID parameter switching deviation 2), PID parameter selection is group 2. When the deviation absolute value between given and feedback is between P40.24 and P40.25, PID parameter is the linear interpolation of two groups PID parameter, showed as below parameter switching diagram
