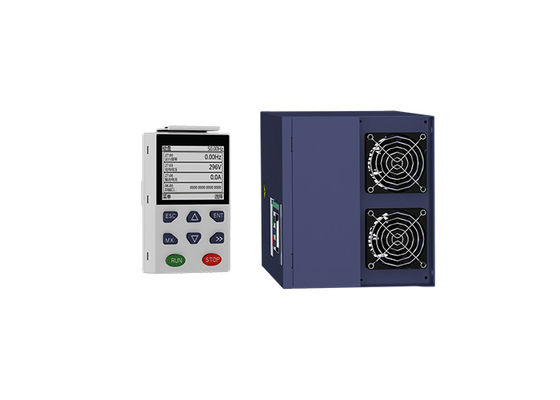

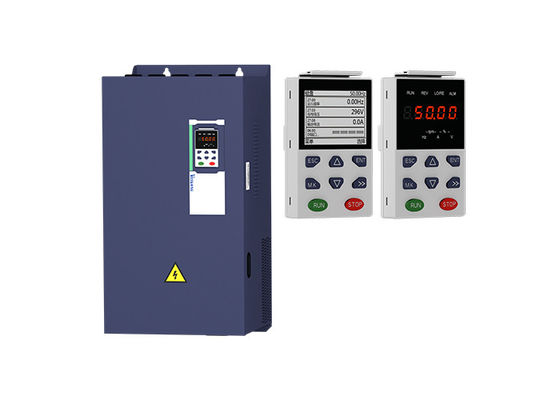

3Phase 7.5kw 10 Hp Variable Frequency Drive VFD VSD Motor Drive 50hz 60hz
| Place of Origin | CHINA |
|---|---|
| Brand Name | VEIKONG |
| Certification | CE, ROHS |
| Model Number | VFD500-7R5GT4B |
| Minimum Order Quantity | 1 |
| Price | Please contact quotation |
| Packaging Details | ＜45kw inverter be used carton package, ≥45kw be used wood case package |
| Delivery Time | depends on quantities |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 1000 units per week |
Product Details
| Voltage | 380v/220v | Power | 7.5kw/10hp |
|---|---|---|---|
| Current | 17A | Frequency | 0-2000HZ |
| Type | AC-DC-AC | Warranty | 18 Months |
| High Light | 3Phase 10 Hp Variable Frequency Drive,7.5kw VSD Motor Drive,3Phase 10hp vfd drive |
||
Product Description
380v 7.5kw 10hp VFD VSD frequency drive ac dirve 50hz 60hz three phase
VEIKONG VFD500 Series 3 Phase Vector Control Inverter(0.75KW-710KW)
-
Excellent control performance
-
Mini design, smaller installation space
-
Rich product configuration and interface
-
Easy to use and easy to repair
-
Integrate multiple product features to meet diverse application needs
Features
1, With inside EMC C3 filter and building-block design for IO extension card and different kinds of PG card
2, Top performance in our industry which represent in torque in less than 1hz 0.5hz 0.25hz 0.1hz and 0hz
it can compare with any domestic chinese brand for output torque.
3, Smooth running and stability, support optional LCD keypad and dual display keypad. support PC tools. support modbus485, canopen, profinet communciation.
4, Low noise on motor and fast response for 0.1S acceleration and deceleration without dead zone
5, Reverse and forward free switching
6, Sleeping function and energy saving function as well as in built PLC programming
7, Tension control and torque mode control
8, Support two group motor parameters which can realize two motor switching control
3, Smooth running and stability, support optional LCD keypad and dual display keypad. support PC tools. support modbus485, canopen, profinet communciation.
4, Low noise on motor and fast response for 0.1S acceleration and deceleration without dead zone
5, Reverse and forward free switching
6, Sleeping function and energy saving function as well as in built PLC programming
7, Tension control and torque mode control
8, Support two group motor parameters which can realize two motor switching control
| Item | Specifiation | |
| Input | Inuput Voltage |
1phase/3phase 220V:200V～240V 3 phase 380V-480V:380V～480V |
| Allowed Voltage fluctuation range | -15%～10% | |
| Input frequency | 50Hz / 60Hz,fluctuation less than 5% | |
| Output | Output Voltage | 3phase:0～input voltage |
| Overload capacity |
General purpose application:60S for 150% of the rated current Light load application:60S for 120% of the rated current |
|
| Control | Control mode |
V/f control Sensorless flux vector control without PG card(SVC) Sensor speed flux vector control with PG card (VC) |
| Operating mode | Speed control,Torque control(SVC and VC) | |
| Speed range |
1:100 (V/f) 1:200( SVC) 1:1000 (VC) |
|
| Speed control accuracy |
±0.5% (V/f) ±0.2% (SVC) ±0.02% (VC) |
|
| Speed response |
5Hz(V/f) 20Hz(SVC) 50Hz(VC) |
|
| frequency range |
0.00～600.00Hz(V/f) 0.00～200.00Hz(SVC) 0.00～400.00Hz(VC) |
|
| Input frequency resolution |
Digital setting: 0.01 Hz Analog setting: maximum frequency x 0.1% |
|
| Startup torque |
150%/0.5Hz(V/f) 180%/0.25Hz(SVC) 200%/0Hz(VC) |
|
| Torque control accuracy |
SVC:within 5Hz10%,above 5Hz5% VC:3.0% |
|
| V/f curve |
V / f curve type: straight line, multipoint, power function, V / f separation; Torque boost support: Automatic torque boost (factory setting), manual torque boost |
|
| Frequency giving ramp |
Support linear and S curve acceleration and deceleration; 4 groups of acceleration and deceleration time, setting range 0.00s ~ 60000s |
|
| DC bus voltage control |
Overvoltage stall control: limit the power generation of the motor by adjusting the output frequency to avoid skipping the voltage fault;
Undervoltage stall control: control the power consumption of the motor by adjusting the output frequency to avoid yaw failure
VdcMax Control: Limit the amount of power generated by the motor by adjusting the output frequency to avoid over-voltage trip; VdcMin control: Control the power consumption of the motor by adjusting the output frequency, to avoid jump undervoltage fault |
|
| Carrier frequency | 1kHz～12kHz(Varies depending on the type) | |
| Startup method |
Direct start (can be superimposed DC brake); speed tracking start |
|
VFD500 parameter distribution list
| Classification | Parameter group | Page |
| Common parameters | 00:Basic function | Page 30 |
| 01:Frequency source selection | Page 32 | |
| 02:Start and stop | Page 37 | |
| 03:Ramp and S curve | Page 39 | |
| 04: Analog and pulse input | Page 41 | |
| 05:Analog and pulse output | Page 45 | |
| 06: Multi-function Digital input (DI) | Page 46 | |
| 07: Multi-function Digital output(DO) | Page 49 | |
| 08:Digital Output setting | Page 51 | |
| Motor control | 10:Encoder type | Page 53 |
| 11:Motor1 parmeter | Page 54 | |
| 12:Motor1 VFcontrol parameter | Page 56 | |
| 13:Motor1 Vector controlparameter | Page 58 | |
| 14:Torque control | Page 59 | |
| 16:Energy saving control | Page 61 | |
| Display and protection | 20:User-defined parameters | Page 62 |
| 21:Keypad and display | Page 63 | |
| 22:AC Drive configuration | Page 65 | |
| 23:Drive protection function setting | Page 67 | |
| 24:Motor protection parameter | Page 70 | |
| 25:Fault tracking parameter | Page 72 | |
| 26:Fault recording parameter | Page 72 | |
| 27:Monitoring parameter | Page 74 | |
| Communication | 30:Modbus communication | Page 75 |
| Application | 40:Process PID Function | Page 77 |
| 41:Sleep function | Page 81 | |
| 42:Simple PLC | Page 82 | |
| 43:Programmable delay unit | Page 84 | |
| 44:Comparator and logic unit/controller | Page 86 | |
| 45:Multifunction counter | Page 90 | |
| Motor 2 | 60:Motor2 basic parameter | Page 91 |
| 61:Motor2 parameter | Page 91 | |
| 62:Motor2 VF control parameter | Page 92 | |
| 63:Motor2 vector control parameter | Page 92 |
VEIKONG VFD500 APPLICATION:
Model Range
| Model |
Power capacity (KVA) |
Input current (A) |
Output current(A) |
Adaptable Motor (KW) |
SIZE | Brake Unit | |
| Heavy load | Light load | ||||||
| Three phase: 380-480V,50/60Hz | |||||||
| VFD500-R75GT4B | 1.5 | 3.4 | 2.5 | 4.2 | 0.75 | SIZE A | Internal |
| VFD500-1R5GT4B | 3 | 5 | 4.2 | 5.6 | 1.5 | ||
| VFD500-2R2GT4B | 4 | 5.8 | 5.6 | 9.4 | 2.2 | ||
| VFD500-4R0G/5R5PT4B | 5.9 | 10.5 | 9.4 | 13.0 | 3.7 | ||
| VFD500-5R5G/7R5PT4B | 8.9 | 14.6 | 13.0 | 17.0 | 5.5 | SIZE B | |
| VFD500-7R5G/011PT4B | 11 | 20.5 | 17.0 | 23.0 | 7.5 | ||
| VFD500-011G/015PT4B | 17 | 26.0 | 25.0 | 31.0 | 11 | SIZE C | Internal |
| VFD500-015G/018PT4B | 21 | 35.0 | 32.0 | 37.0 | 15 | ||
| VFD500-018G/022PT4B | 24 | 38.5 | 37.0 | 45.0 | 18.5 | SIZE D | |
| VFD500-022G/030PT4B | 30 | 46.5 | 45.0 | 57.0 | 22 | ||
| VFD500-030G/037PT4 | 40 | 62.0 | 60.0 | 75.0 | 30 | SIZE E | option |
| VFD500-037G/045PT4 | 50 | 76.0 | 75.0 | 87.0 | 37 | ||
| VFD500-045G/055PT4 | 60 | 92.0 | 90.0 | 110.0 | 45 | SIZE F | |
| VFD500-055G/075PT4 | 75 | 113.0 | 110.0 | 135.0 | 55 | ||
| VFD500-075G/090PT4 | 104 | 157.0 | 152.0 | 165.0 | 75 | SIZE G | |
| VFD500-090G/110PT4 | 112 | 170.0 | 176.0 | 210.0 | 90 | External | |
| VFD500-110G/132PT4 | 145 | 220.0 | 210.0 | 253.0 | 110 | SIZE H | |
| VFD500-132G/160PT4 | 170 | 258.0 | 253.0 | 304.0 | 132 | SIZE I | |
| VFD500-160G/185PT4 | 210 | 320.0 | 304.0 | 360.0 | 160 | ||
| VFD500-185G/200PT4 | 245 | 372.0 | 360.0 | 380.0 | 185 | SIZE J | |
| VFD500-200G/220PT4 | 250 | 380.0 | 380.0 | 426.0 | 200 | ||
| VFD500-220G/250PT4 | 280 | 425.0 | 426.0 | 465.0 | 220 | SIZE K | |
| VFD500-250G/280PT4 | 315 | 479.0 | 465.0 | 520.0 | 250 | ||
| VFD500-280G/315PT4 | 350 | 532.0 | 520.0 | 585.0 | 280 | SIZE L | |
| VFD500-315G/355PT4 | 385 | 585.0 | 585.0 | 650.0 | 315 | ||
| VFD500-355G/400PT4 | 420 | 638.0 | 650.0 | 725.0 | 355 | SIZE M | |
| VFD500-400G/450PT4 | 470 | 714.0 | 725.0 | 820.0 | 400 | ||
| VFD500-450G/500PT4 | 530 | 800.0 | 820.0 | / | 450 | SIZE N | |
| VFD500-500G/560PT4 | 580 | 880.0 | 900.0 | / | 500 | ||
| VFD500-560G/630PT4 | 630 | 950.0 | 980.0 | / | 560 | SIZE O | |
| VFD500-630GT4 | 710 | 1080 | 1120. | / | 630 | SIZE O | |
| VFD500-710GT4 | 790 | 1200 | 1260 | / | 710 | SIZE O | |
| Single phase: 220V, 50/60HZ | |||||||
| VFD500-R40GS2 | 1.3 | 6.0 | 3.2 | 5.6 | 0.4 | SIZE A | Inbuilt |
| VFD500-R75GS2 | 2.4 | 11.0 | 5.6 | 8.0 | 0.75 | SIZE A | |
| VFD500-1R5GS2 | 3.5 | 15.0 | 8.0 | 10.6 | 1.5 | SIZE A | |
| VFD500-2R2GS2 | 5.5 | 25.0 | 10.6 | 14.0 | 2.2 | SIZE A | |
| VFD500-4R0GS2 | 7.7 | 35.0 | 17.0 | 23.0 | 4.0 | SIZE B | |
| VFD500-5R5GS2 | 8.9 | 53.0 | 25.0 | 31.0 | 5.5 | SIZE C | |
| VFD500-7R5GS2 | 11 | 67.0 | 32.0 | 37.0 | 7.5 | SIZE C |
|
