Metal 120A Three Phase Motor Drive VFD Filter Common Mode Interference
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VKS
Minimum Order Quantity 1
Price Negotiable
Packaging Details Carton
Delivery Time 3 days, depend on the order quantity
Payment Terms Western Union, T/T, L/C, D/A, D/P, PayPal
Supply Ability 15000pcs per Month
Product Details
Product Name Three Phase Filter Transfer Function Low Pass
Rated Current 5a - 200a Material Metal
Rated Voltage 250 / 440VAC Frequency 50/60hz
High Light

120A VFD Filter

,

Three Phase VFD Filter

,

120A vfd line filter

Product Description

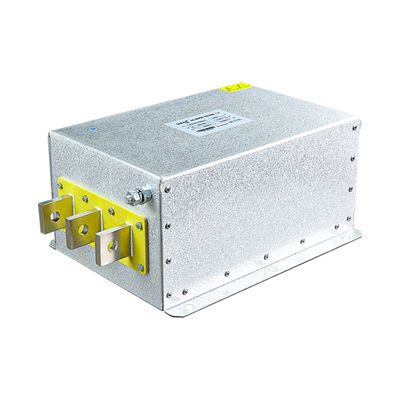

120A three phase motor drive EMI FILTER SCREW emc Filter for converter


Conducted EMI Types

Common-mode interference:the interference between phase lines of power lines and ground wires, and between the
midline and ground. Common-mode line and the midline of the phase-existence of the same size, the same phase.

Differential-mode interference:the interference between phase lines of power lines and the midline.Differential-mode
interference current in the phase line and the midline of the size, phase contrast.

EMI power supply filter should also have the right common mode interference and differential mode interference
In vivo.



Description of EMC Filters for Photovoltaic:

Specially designed for PV Generator Inverter system , to help system comply with EMC & safety regulations .
Superior commmon mode and differential mode noise suppression performance .
Rated current from 100A~1500A for KW--MW class Inverter system .
Rated voltage as high as 1000VDC to meet power and raiway system demand .
Main application : Windpower , PV Power , railway Inverter systems .



Application of EMC Filters for Photovoltaic:

1.Inverter systems, PV (photovoltaic power system ), Wind power,
2.Industrial frequency converters and motor drives, machine tools,
3.UPS, SMPS


Metal 120A Three Phase Motor Drive VFD Filter Common Mode Interference 0

Metal 120A Three Phase Motor Drive VFD Filter Common Mode Interference 1



Metal 120A Three Phase Motor Drive VFD Filter Common Mode Interference 2Metal 120A Three Phase Motor Drive VFD Filter Common Mode Interference 3



Our Advantages



1. After years of efforts of the company's personnel, products successively obtained the cUL,
TUV,CQC, CE, ROSH certifications.

2. We have a professional R&D team; our aims is we won't let customers spend any extra money!

3. National high-tech enterprises, brand assurance, reliable quality, and we have the relevant

product certifications.

4. We cooperate with top scientific research laboratories to provide free EMC rectification technical

support, samples; and free conduction test.

5. Automation technology, scale production, great price,excellent, service, fast delivery! Free replacement

within three months, free maintenance within six years, life-long maintenance!



Low leakage current to meet with medical machine special requirements.
Applicable to suppressing noise and high frequency harmonic in power.
Low leakage current with high insert lose of noise.
Control EMI interference between line and line,line and ground.
Available for electronic equipments and measuring instruments.



Metal 120A Three Phase Motor Drive VFD Filter Common Mode Interference 4Metal 120A Three Phase Motor Drive VFD Filter Common Mode Interference 5



Filter instructions

Consider the selection of the main filter insertion loss,the manufacturer of the given curve (parameters) in general in the
standard 50-system test results are only for reference, but the actual applications are generally not 50 systems, insertion loss will
be some offset.
Filter selected second point to note are: operating voltage, operating current, voltage value, leakage current, dimensions,
installation methods; special requirements and special applications must be described when ordering.
DIN-type security choice of terminals: DIN security terminal has the following features: touch security; internal solid, has great
access to cross-sectional area;in line with European industry standards,than conventional terminals safer and more convenient;
use of DIN terminal of the filter is more in line with European market requirements. Most of the products of SIKES to support the
kinds of terminal mode.







Characteristics

(1) Voltage Rating............................................................................................115/250VAC

(2) Current Rating:

A.@115VAC............................................................................................... 60A RMS Max.

B.@250VAC............................................................................................... 60A RMS Max.

(3) Oprating Frequency:50/60Hz

(4) Leakage Current: each line to ground

A. 115VAC/60Hz........................................................................................... 5mA Max.

B. 250VAC/50Hz...........................................................................................10mA Max.

(5) Hipot Rating(for one minute)

A. Line to ground............................................................................................ 2250VDC

B. Line to line.................................................................................................. 1450VDC

(6) IR: 50M ohm A7 500VDC any input or output to ground

(7) Temperature Range: -25℃~+85℃
