0.75KW-710KW VFD Variable Frequency Drive
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VFD500-PV
Minimum Order Quantity 1
Price Negotiable
Packaging Details the power less than 45kw use Carton, starting from 45kw use Wooden case
Delivery Time 3 days, depend on the order quantity
Payment Terms L/C, T/T, Western Union
Supply Ability 15000pcs per Month
Product Details
Product Name 0.75kw Variable Frequency Drive Voltage 220v/380v
Oem Available Type AC Inverters
Power 0.75kw-710kw Protection Under Voltage Protection,Input Polarity/UVP/OVP/OSP/OLP/OTP,overload Protection,short Circuit
High Light

710KW VFD Variable Frequency Drive

,

0.75KW VFD Variable Frequency Drive

Product Description

0.75KW-710KW VFD variable frequency drive ac inverters ac drive

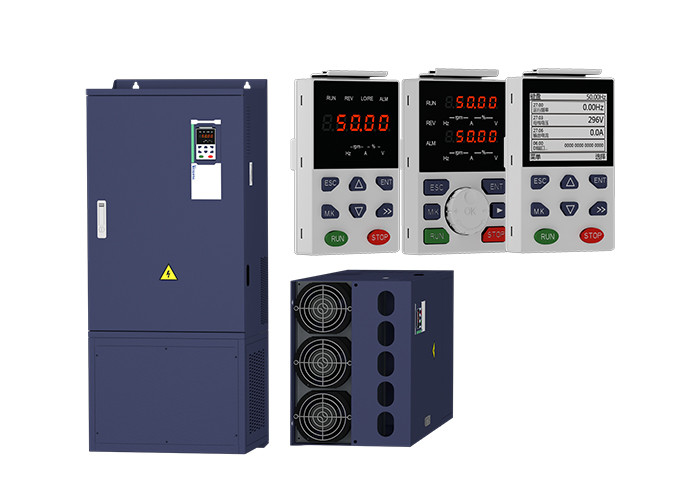

0.75KW-710KW VFD Variable Frequency Drive





High performance


1. More Accurate Motor Autotuning
2. Advanced open and close loop vector control
3. Perfect voltage and current control, reducing the fault protection times
4  Multiple braking modes and instant stopping
5. 0.75kW~7100kW(Three Phase 400V)



Features


1. VF and Sensorless Vector Control
2. Up to 0Hz/200% starting torque
3. Built-in braking unit (≤22kW), Optional external braking unit (≥30kW)
4. External LED keypad to copy parameters(≥18.5kW), Standard membrane keypad design(≤15kW), Optional LCD keypad provided
5. Standard C3 filters; Optional C2 filters
6. Accurate parameters auto tuning and better motor drive
7. Simple water supply function
8. Support G/P dual rating
9. Customization services provided (like PTC )
10. CE requirements certified



Applications


Air Compressor, Oil, Warming and Water Supply, Plastics Machine, Mine, Fans and Water Pumps.







Techincal Parameters:

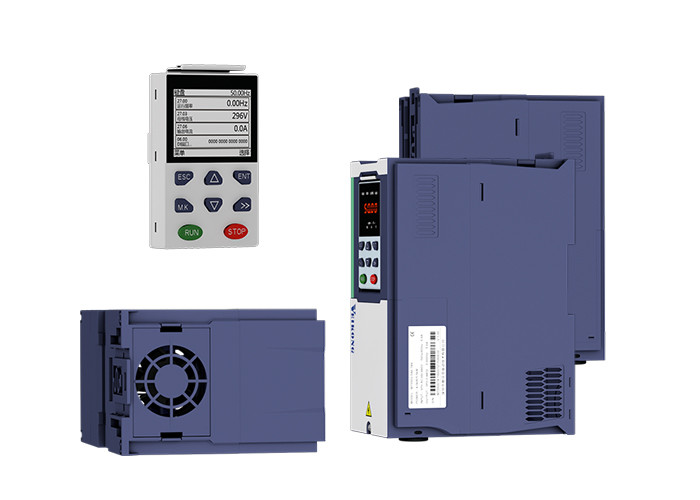

0.75KW-710KW VFD Variable Frequency Drive

0.75KW-710KW VFD Variable Frequency Drive



Item Specifiation
Input Inuput Voltage

1phase/3phase 220V:200V~240V

3 phase 380V-480V:380V~480V

  Allowed Voltage fluctuation range -15%~10%
  Input frequency 50Hz / 60Hz,fluctuation less than 5%
Output Output Voltage 3phase:0~input voltage
  Overload capacity

General purpose application:60S for 150% of the rated current

Light load application:60S for 120% of the rated current

Control Control mode

V/f control

Sensorless flux vector control without PG card(SVC)

Sensor speed flux vector control with PG card (VC)

  Operating mode Speed control,Torque control(SVC and VC)
  Speed range

1:100 (V/f)

1:200( SVC)

1:1000 (VC)

  Speed control accuracy

±0.5% (V/f)

±0.2% (SVC)

±0.02% (VC)

  Speed response

5Hz(V/f)

20Hz(SVC)

50Hz(VC)

  frequency range

0.00~600.00Hz(V/f)

0.00~200.00Hz(SVC)

0.00~400.00Hz(VC)

  Input frequency resolution

Digital setting: 0.01 Hz

Analog setting: maximum frequency x 0.1%

  Startup torque

150%/0.5Hz(V/f)

180%/0.25Hz(SVC)

200%/0Hz(VC)

  Torque control accuracy

SVC:within 5Hz10%,above 5Hz5%

VC:3.0%

  V/f curve

V / f curve type: straight line, multipoint, power function, V / f separation;

Torque boost support: Automatic torque boost (factory setting), manual torque boost

  Frequency giving ramp

Support linear and S curve acceleration and deceleration;

4 groups of acceleration and deceleration time, setting range 0.00s ~ 60000s

  DC bus voltage control

Overvoltage stall control: limit the power generation of the motor by adjusting the output frequency to avoid skipping the voltage fault;



Undervoltage stall control: control the power consumption of the motor by adjusting the output frequency to avoid yaw failure



VdcMax Control: Limit the amount of power generated by the motor by adjusting the output frequency to avoid over-voltage trip;

VdcMin control: Control the power consumption of the motor by adjusting the output frequency, to avoid jump undervoltage fault

  Carrier frequency 1kHz~12kHz(Varies depending on the type)
  Startup method Direct start (can be superimposed DC brake); speed tracking start
  Stop method Deceleration stop (can be superimposed DC braking); free to stop
  Maincontrol function Jog control, droop control, up to 16-speed operation, dangerous speed avoidance, swing frequency operation, acceleration and deceleration time switching, VF separation, over excitation braking, process PID control, sleep and wake-up function, built-in simple PLC logic, virtual Input and output terminals, built-in delay unit, built-in comparison unit and logic unit, parameter backup and recovery, perfect fault record,fault reset, two groups of motor parameters free switching, software swap output wiring, terminals UP / DOWN









VEIKONG VFD replace famous brand VFD

0.75KW-710KW VFD Variable Frequency Drive



Big power VFD pictures:



200kw vfd500:

0.75KW-710KW VFD Variable Frequency Drive



355kw vfd500:

0.75KW-710KW VFD Variable Frequency Drive





0.75KW-710KW VFD Variable Frequency Drive







Why chose VEIKONG?



1. Infineon brand IGBT/Fuji IGBT, enduree temperature 175°C
2. Two-lines LED keypad/LCD kaypad
3. Fan: 70 000 hours using life
4. Capacitor: 50 000 hours using life
5. Input phase lacking protection
6. Output short circuit protection
7. Overvoltage protection
9. 10 000-15 000pcs per month production ability
10. 500pcs stock below 90KW
11. CE ISO certification, TUV SGS authority
12. Strong RD department, can update software
