IP65 22kw 30hp VFD Variable Frequency Drive Vector Control
Place of Origin CHINA
Brand Name VEIKONG
Certification CE, ROHS
Model Number VFD500-022G/030GT4B
Minimum Order Quantity 1
Price Please contact quotation
Packaging Details <45kw inverter be used carton package, ≥45kw be used wood case package
Delivery Time depends on quantities
Payment Terms T/T, Western Union, L/C
Supply Ability 1000 units per week
Product Details
Voltage 380v/220v Power 22Kw
Current 45A Protection Level IP20/ IP65
Type AC Frequency Inverter Output Type Triple
High Light

30hp VFD Variable Frequency Drive


IP65 VFD Variable Frequency Drive


IP65 30hp vfd

Product Description

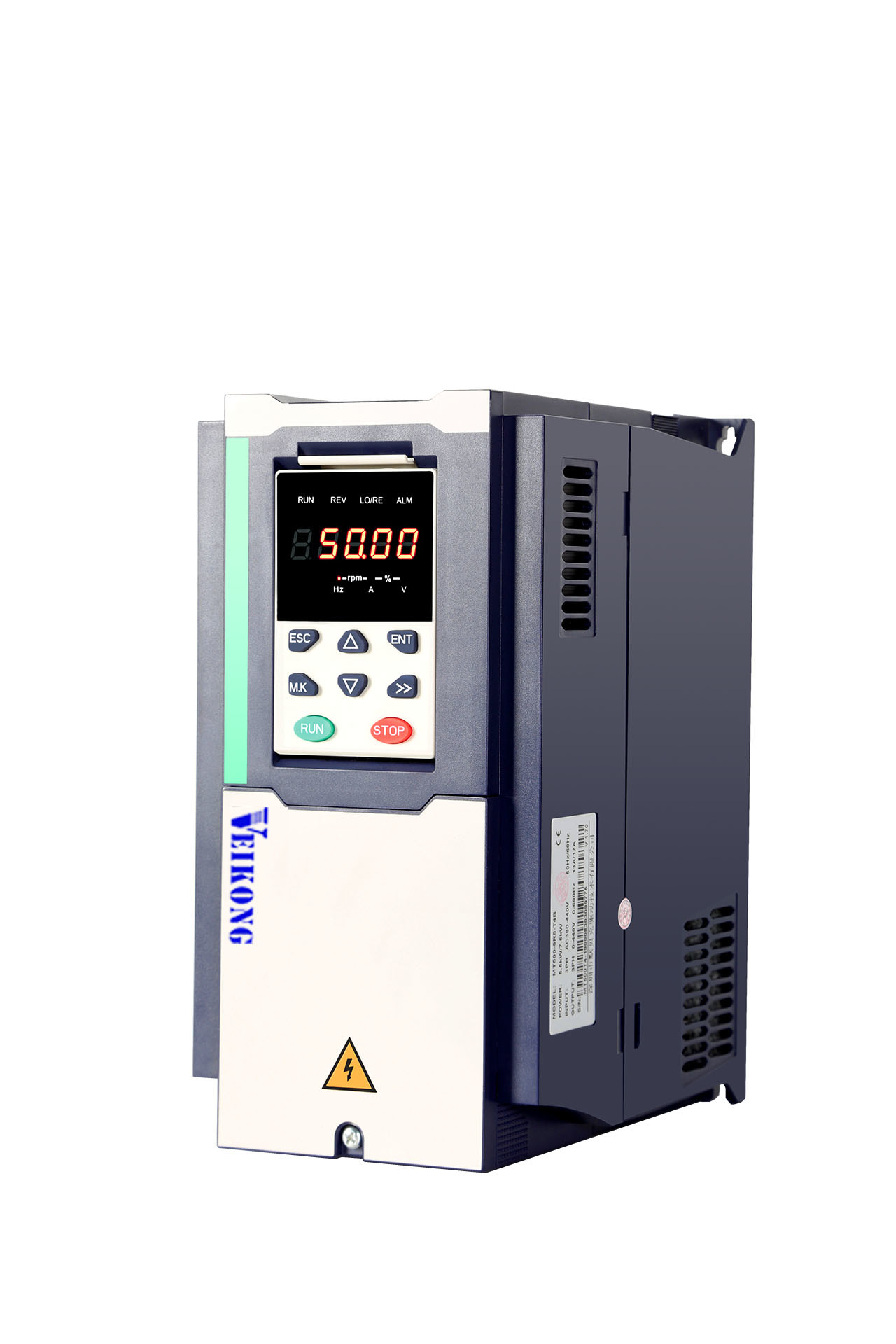

22kw 30hp variable frequency drive VFD AC DRIVE INVERTERS vector control


Product Advantage


1. Optimized external installation and internal structure and independent air flue design, fully enclosed electrical space design.

2. Output automatic voltage regulation function (AVR), automatically adjust the output pulse width to eliminate the influence of the grid change on load.

3. Built-in PID regulation function to facilitate the realization of closed loop control of the temperature, pressure and flow, and reduce the cost of the control system.

4. Standard MODBUS communication protocol. Easy to achieve the communication between PLC, IPC and other industrial equipments.


Item Specifiation
Input Inuput Voltage

1phase/3phase 220V:200V~240V

3 phase 380V-480V:380V~480V

  Allowed Voltage fluctuation range -15%~10%
  Input frequency 50Hz / 60Hz,fluctuation less than 5%
Output Output Voltage 3phase:0~input voltage
  Overload capacity

General purpose application:60S for 150% of the rated current

Light load application:60S for 120% of the rated current

Control Control mode

V/f control

Sensorless flux vector control without PG card(SVC)

Sensor speed flux vector control with PG card (VC)

  Operating mode Speed control,Torque control(SVC and VC)
  Speed range

1:100 (V/f)

1:200( SVC)

1:1000 (VC)

  Speed control accuracy

±0.5% (V/f)

±0.2% (SVC)

±0.02% (VC)

  Speed response




  frequency range




  Input frequency resolution

Digital setting: 0.01 Hz

Analog setting: maximum frequency x 0.1%

  Startup torque




  Torque control accuracy

SVC:within 5Hz10%,above 5Hz5%


  V/f curve

V / f curve type: straight line, multipoint, power function, V / f separation;

Torque boost support: Automatic torque boost (factory setting), manual torque boost

  Frequency giving ramp

Support linear and S curve acceleration and deceleration;

4 groups of acceleration and deceleration time, setting range 0.00s ~ 60000s

  DC bus voltage control

Overvoltage stall control: limit the power generation of the motor by adjusting the output frequency to avoid skipping the voltage fault;


Undervoltage stall control: control the power consumption of the motor by adjusting the output frequency to avoid yaw failure


VdcMax Control: Limit the amount of power generated by the motor by adjusting the output frequency to avoid over-voltage trip;

VdcMin control: Control the power consumption of the motor by adjusting the output frequency, to avoid jump undervoltage fault

  Carrier frequency 1kHz~12kHz(Varies depending on the type)
  Startup method

Direct start (can be superimposed DC brake); speed tracking start

  Stop method Deceleration stop (can be superimposed DC braking); free to stop
Maincontrol function Jog control, droop control, up to 16-speed operation, dangerous speed avoidance, swing frequency operation, acceleration and deceleration time switching, VF separation, over excitation braking, process PID control, sleep and wake-up function, built-in simple PLC logic, virtual Input and output terminals, built-in delay unit, built-in comparison unit and logic unit, parameter backup and recovery, perfect fault record,fault reset, two groups of motor parametersfreeswitching, software swap output wiring, terminals UP / DOWN

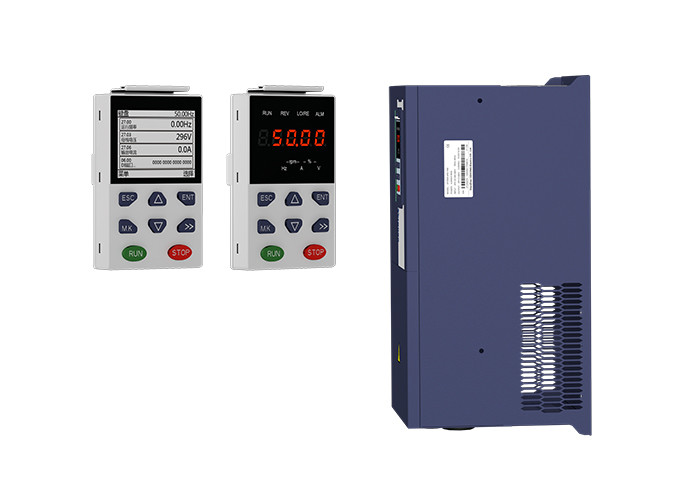

Function Keypad LED Digital keyboard and LCD keypad(option)


MODBUS communication


PG card Incremental Encoder Interface Card (Differential Output and Open Collector), Rotary transformer Card
Input terminal


5 digital input terminals, one of which supports high-speed pulse input up to 50kHz;

2 analog input terminals, support 0 ~ 10V voltage input or 0 ~ 20mA current input;

Option card:

4 digital input terminals

2 analog input terminals.support-10V-+10V voltage input

Output terminal


1 digital output terminal;

1 high-speed pulse output terminal (open collector type), support 0 ~ 50kHz square wave signal output;

1 relay output terminal(second relay is an option )

2 analog output terminals, support 0 ~ 20mA current output or 0 ~ 10V voltage output;

Option card: 4 digital output terminals

Protection Refer to Chapter 6 "Troubleshooting and Countermeasures" for the protection function
Environment Installation location Indoor, no direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapor, drip or salt.
Altitude 0-3000m.inverter will be derated if altitude higher than1000m and rated output current will reduce by 1% if altitude increase by 100m
Ambient temperature -10°C~ +40°C,maximum 50°C (derated if the ambient temperature is between 40°C and 50°C)Rated output current decrease by 1.5% if temperature increase by 1°C
Humidity Less than 95%RH, without condensing
Vibration Less than 5.9 m/s2 (0.6 g)
Storage temperature -20°C ~ +60°C
Others Installation Wall-mounted, floor-controlled cabinet, transmural
Protection level IP20
cooling method Forced air cooling

Internal EMC filter

Complies with EN61800-3

Category C3

3rd Environment


Replace famous brands vfd in general application.


IP65 22kw 30hp VFD Variable Frequency Drive Vector Control

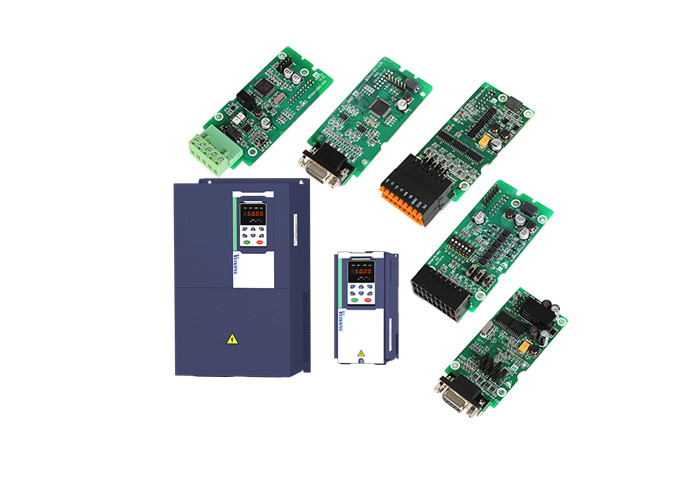

VEIKONG VD500 application picture:

IP65 22kw 30hp VFD Variable Frequency Drive Vector Control

IP65 22kw 30hp VFD Variable Frequency Drive Vector Control
23 Group Drive protection function setting
P23.00 DC Bus voltage control option

Ø Unit’digit :Overvoltage stall control
0:overvoltage stall disabled
1:overvoltage stall enabled
2:overvoltage stall enabled self-adjustable

Ø The over-voltage stall function limits the amount of power generated by the motor by extending the deceleration time or even increasing the speed, avoiding over-voltage on the DC side and reporting over-voltage faults
Ten’unit:Undervoltage stall control
0:undervoltage stall disabled
1:Undervoltage stall(decelerate to zero speed and be in standby mode,after power restoring ,it will run again automatically)
2: Undervoltage stall deceleration(decelerate to zero and stop)

Ø The undervoltage stall function reduces the motor power consumption or reduces the power consumption of the motor or turns it into a power generation operation to avoid the undervoltage fault on the DC side.

Ø The undervoltage stall function is used when the input power supply quality is poor (the power supply voltage fluctuates downward or the sporadic short power is suspended), and it is necessary to keep the inverter running as much as possible.

P23.01 Overvoltage stall threshold 220V Level: 320V~400V
380V Level: 540V~800V
480V Level:650V~950V
P23.02 Undervoltage threshold 220V level: 160V~300V
380V level: 350V~520V
480V level: 400V~650V
P23.03 Overvoltage stall ratio 0~10.0 1.0
P23.04 Undervoltage stall ratio 0~20.0 4.0
P23.05 Undervoltage trip threshold 220V Level:160V~300V
380V Level:350V~520V
480V Level:400V~650V
P23.06 Undervoltage fault detecting time 0.0s~30.0s 1.0s
P23.07 Rapid current limit 0:Disabled
P23.10 Over-speed detection value 0.0%~120.0% maximum frequency 120.0%
P23.11 Over-speed detection time 0.0s~30.0s0.:shielding 1.0s
P23.12 Detection value of too large speed deviation 0.0%~100.0%(motor rated frequency) 20.0%
P23.13 Detection value of too large speed deviation



P23.14 Input phase loss detection time



P23.15 Output phase loss inbalance detecting 0%~100% 30%
P23.18 Fault protection action selection 1 Unit’s digit : input phase loss
0: coast to stop
1: Emergent stop
2: Stop as per stop mode
3: Continue to Run
Ten’unit: user self-defined fault 1
same as Unit’s digit
Hundred’unit: user self-defined fault 2
same as Unit’digit
Thousand’s unit: communication fault
same as unit’s digit
P23.19 Fault protection action selection 2 Unit’s digit: motor overload
0: Coast to stop
1: Emergent stop
2: Stop as per stop mode
3: Continue to run
Ten’unit: motor overheat
same as unit’digit
Hundred’unit: too large speed deviation
same as unit’digit
Thousand’s unit: motor over speed
same as Unit’digit
P23.20 Fault protection action selection 3 Unit’s digit: PID feedback lost during running
0: Coast to stop
1: Fast stop
2: Stop as per stop mode
3: Continue to run
Ten’unit: Reserved
same as unit’digit
Hundred’unit: reserved
same as unit’digit
thousand’unit: reserved
same as unit’digit
P23.21 Fault protection action selection 4 Unit’s digit: output phase loss
0: Coast to stop
1: Fast stop
2: Stop as per stop mode
Ten’unit: EEPROM fault
0: Coast to stop
1: Fast stop
2: Stop as per stop mode
3: Continue to run
Hundred’s unit: PG card fault(reserved)
0: Coast to stop
1: Fast stop
2: Stop as per stop mode
3: Continue to run
Thousand’s unit: off load fault
0: Coast to stop
1: Fast stop
2: Stop as per stop mode
3: Continue to run
P23.24 Fault reset Define as per bit:
bit0-undervoltage;bit1- inverter overload
bit2-inverter overheat ;bit3-motor overload
bit4-motor overheat;bit5-user’fault 1
bit6- user’fault 2; bit7~15 reserved
P23.25 Fault source for auto reset Define as per bit:
bit0-overcurrent during acceleration;bit1-overcurrent during deceleration
bit2-overcurrent during constant speed;bit3-over voltage during acceleration
bit4-overvoltage during deceleratoin;bit5-overvoltage during
bit6-inverter undervoltage;bit7-input phase loss
bit8-inverter overload;bit9-inverter overheat
bit10-motor overload;bit11-motor overheat
bit12-user’fault 1;bit13-user’fault 2
P23.26 Fault auto Reset times 0~99 0
P23.27 Numberic output Action at fault reset 0:Disabled
P23.28 Interval time of fault auto reset 0.1s~300.0s 0.5s
P23.29 Fault auto reset times clearing time 0.1s~3600.0s 10.0s
P23.30 Continuing Running frequency selection when trip 0:Run at current frequency
1:Run at setted frequency
2:Run at upper limite frequency
3:Run at lower limit frequency
4:Run at abnormal back-up frequency
P23.31 Abnormal back-up frequency

0.0%~100.0%(maximum frequency )
