LCD MPPT VFD Solar Pump Inverter 3hp 2.2kw 220V GPRS LED Display
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VFD500-PV
Minimum Order Quantity 1
Price Negotiable
Packaging Details the power less than 45kw use Carton, starting from 45kw use Wooden case
Delivery Time depend on the order quantity
Payment Terms L/C, T/T, Western Union
Supply Ability 15000pcs per Month
Product Details
Product Name 2.2kw 220v Solar Pump Inverter Voltage 220v/380v
Frequency 50hz/60hz Display LED+LCD
Efficiency 99% Warranty 18 Monthes
High Light

LCD MPPT VFD Solar Pump Inverter


2.2kw MPPT VFD Solar Pump Inverter


220V GPRS Solar Ac Pump Controller

Product Description

MPPT solar vfd 3hp 2.2kw 220V Solar Ac Pump Controller chinese manufacturer



Performance features:(220v 0.75kw-75kw, 380v 0.75kw-160kw)


Full automatic operation, no need programming, user-friendly
Modular design, easy install , operate & maintain
GPRS Moudle Support remote monitoring & control (2G/4G/WIFI for option)
Support LogEfficie
o/Lable/Color/Function OEM Serive


1:1 match to AC pumps with strong overload capacity
30% more water output with advanced inverter control algorithm
Maximum power point tracking (MPPT) efficiency reach 99% with advanced MPPT algorithm
Built-in booster with lower solar operating voltage to reduce solar panels costs
Good ROI (Return on Investment) against diesel powered pumping


Hybrid function –Solar power priority, grid power/generator dual input as compensation
Key parts use famous brand components, longer service life
Wide range of input voltage
IP65 design, continuous full-load operation between -10℃ to +60℃
Compatible with all AC pumps (0.37kw-150kw)
Certification qualified from authoritative third party, inverters can be exported to all countries
Professional & Independent R&D team, good service for pre-sales and after-sales
Fast delivery and quick response


Product Details and Features:


1. Support single phase/three phase 220V, and three phase 380V solar water pump inverter, power from 0.75KW to 160KW.


2. Simply connect the photovoltaic panel to the solar water pump inverter, and the PV pump c be automatically started after power-on.


3. It has protection functions such as PV over-voltage protection, over-temperature automatic protect, etc., which can effectively extend the life of the product.


4. Ensure solar power tracking efficiency can reach 99%.


5. All series of products can realize automatic switching of PV DC input and grid AC input, which can meet 24 hours of no care work.


6. Supports IP20 and IP65 grade cabinet solutions.


7. LCD display, GPRS module, Output reactor Accessories.



Electrical Specifications


PV input
Maxiumum input DC voltage 400V DC
Recommended MPPT voltage range 250~350V DC
Recommended input Operation Voltage 310V DC
Grid or backup generator input
Input voltage Single phase 220V(-15%~30%)
Output Specification
Rated output voltage 3PH 220V
Output frequency 0~500.00Hz (default: 0~50.00Hz)
380V Solar Pumping Inverter
Input Specification
PV input
Maxiumum input DC voltage 800V DC
Recommended MPPT voltage range 450~650V DC
Recommended input Operation voltage 540V DC
Grid or backup generator input
Input voltage Three phase 380V(-15%~30%)
Output specification
Rated ouput voltage 3PH 380V
Output frequency 0~500.00Hz (default: 0~50.00Hz)
Built-in Protection Lighting Protection ,over-current, overvoltage, ouput phase lose, under-load, under-voltage, short circuit , overheating, water pump run dry etc.


General Parameters
Application site No direct sunshine, no dust,corrosive gas,combustible gas, oil mist, steam,dripping or salinity etc.
Altitude 0~2000m
Derated use above 1000m, per 100m, the rated output current decrease 1%
Environment Temperature -10°C~40°C (Environment Temperature be 40°C~50°C, please keep derated use)
Humidity 5~95%, non-condensation
Vibration less than 5.9 m/s²(0.6G)
Storage Temperature -20°C~+70°C
Efficiency Rated Power Run≥93%
Installation Wall or rail mounting
Protectiion Grade IP20
Cooling Forced Air Cooling






1. GPRS (support 2g/3g/4g internet)


2. Output reactor


3. LCD keypad

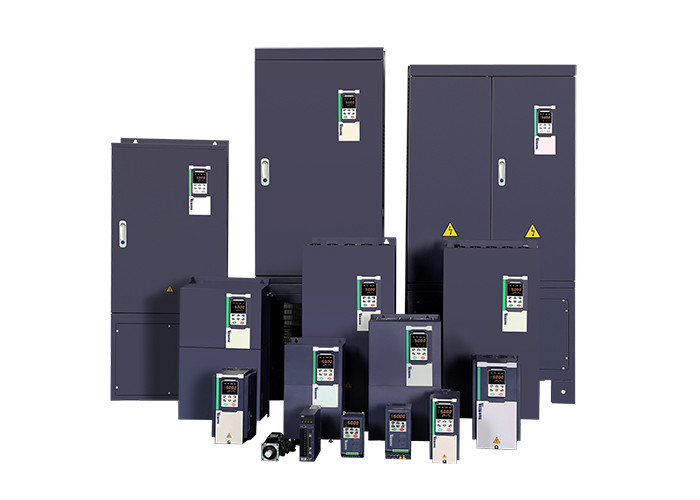

LCD MPPT VFD Solar Pump Inverter 3hp 2.2kw 220V GPRS LED Display 0




LCD MPPT VFD Solar Pump Inverter 3hp 2.2kw 220V GPRS LED Display 1



Model Range

Drive Model Related Voltage Max DC input voltage (V) Rated output current (A) Applicable water pump (KW) SIZE
VFD500M-20T00150-PV 220V 800 7 1.5 SIZE A
VFD500M-20T00220-PV 220V 800 10.6 2.2 SIZE A
VFD500M-40T00150-PV 380V 800 4.2 1.5 SIZE A
VFD500M-40T00220-PV 380V 800 6 2.2 SIZE A
VFD500-20T00150-PV 220V 800 7 1.5 SIZE A
VFD500-20T00220-PV 220V 800 10.6 2.2 SIZE A
VFD500-20T00400-PV 220V 800 17 4 SIZE A
VFD500-40T00150-PV 380V 800 4.2 1.5 SIZE A
VFD500-40T00220-PV 380V 800 6 2.2 SIZE A
VFD500-40T00400-PV 380V 800 9.4 4 SIZE A
VFD500-40T00550-PV 380V 800 13 5.5 SIZE B
VFD500-40T00750-PV 380V 800 17 7.5 SIZE B
VFD500-40T01100-PV 380V 800 25 11 SIZE C
VFD500-40T01500-PV 380V 800 32 15 SIZE C
VFD500-40T01850-PV 380V 800 38 18.5 SIZE D
VFD500-40T02200-PV 380V 800 46 22 SIZE D
VFD500-40T03000-PV 380V 800 60 30 SIZE E
VFD500-40T03700-PV 380V 800 75 37 SIZE E
VFD500-40T04500-PV 380V 800 96 45 SIZE F
VFD500-40T05500-PV 380V 800 112 55 SIZE F
VFD500-40T07500-PV 380V 800 150 75 SIZE G
VFD500-40T09000-PV 380V 800 176 90 SIZE G
VFD500-40T11000-PV 380V 800 210 110 SIZE H
VFD500-40T13200-PV 380V 800 253 132 SIZE I
VFD500-40T16000-PV 380V 800 304 160 SIZE I
VFD500-40T18500-PV 380V 800 340 185 SIZE J
VFD500-40T20000-PV 380V 800 377 200 SIZE J




1. Can you send me a sample?

It's my honor to send a sample to you,but you need to pay the sample fee and shipping cost

2. What's about your delivery time?

Some vfd we have stock, after we receive payment,we will send you within two days.

3. How to pay it?

You can pay it to Alibaba,Paypal, western union, bank to bank.

4. How about your warrantly time?

Our warrantly time is 18months, if the goods or accessories can't work,we send free spare parts to you.

5. Payment Terms?

100% T/T before shipment for stock supply products; 30% as advance and balance before shipment for production and special design order.

6. Is our company accept customized and OEM order ?

Yes. Our factory can accept OEM, it can be discussed
