0.75kw - 710kw MPPT VFD Solar Pump Inverter Hybrid Inverter For Irrigation System
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VFD500-PV
Minimum Order Quantity 1
Price Negotiable
Packaging Details the power less than 45kw use Carton, starting from 45kw use Wooden case
Delivery Time depend on the order quantity
Payment Terms L/C, T/T, Western Union
Supply Ability 15000pcs per Month
Product Details
Product Name Hybrid Inverter Irrigation System Voltage 220v/380v
Type DC/AC Inverters Output Frequency 50Hz/60Hz
OEM YES Power 0.75kw To 710kw
High Light

Irrigation MPPT VFD Solar Pump Inverter


710kw MPPT VFD Solar Pump Inverter


irrigation VEIKONG solar pump inverter

Product Description

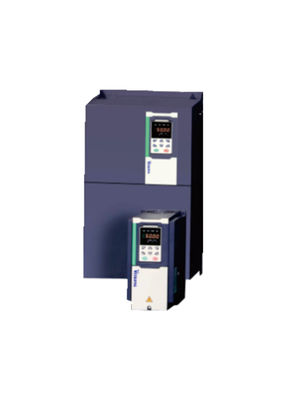

MPPT VFD Solar Pump Inverter 0.75kw to 710kw Hybrid inverter irrigation system



1, Support 220V and 380V, single phase and three phase solar water pump inverter, power from 0.75kW to 160KW

2, No need to set any parameters, and the inverter can be automatically started after power-on

3, It has protection functions such as PV over-voltage protection, PV polarity reverse connection alarm, over-temperature automatic derating, etc., which can effectively extend the life of the product

4, Supports optional GPRS module, which can realize remote monitoring function of computer webpage and mobile APP

5, It can realize automatic switching of PV DC input and grid AC input, which can meet 24 hours of no care work


Full automatic operation, no need programming, user-friendly
Modular design, easy install , operate & maintain
GPRS Moudle Support remote monitoring & control (2G/4G/WIFI for option)
Support LogEfficieo/Lable/Color/Function OEM Serive


1:1 match to AC pumps with strong overload capacity
30% more water output with advanced inverter control algorithm
Maximum power point tracking (MPPT) efficiency reach 99% with advanced MPPT algorithm
Built-in booster with lower solar operating voltage to reduce solar panels costs
Good ROI (Return on Investment) against diesel powered pumping

Hybrid function –Solar power priority, grid power/generator dual input as compensation
Key parts use famous brand components, longer service life
Wide range of input voltage
IP65 design, continuous full-load operation between -10℃ to +60℃
Compatible with all AC pumps (0.37kw-150kw)
Certification qualified from authoritative third party, inverters can be exported to all countries
Professional & Independent R&D team, good service for pre-sales and after-sales
Fast delivery and quick response


Electrical Specifications





Max input DC voltage



DC voltage range



Normal working DC voltage



Recommended input mppt voltage



MPPT efficiency


Rated output voltage

1/3-phase 220VAC

3-phase 380-480VAC

Output frequency range


Max efficiency of the machine


Ambient temperature range

-10 °C~50 °C, derating if the temperature is above 40 °C

Cooling method

Air cooling

Protection degree



Below 1000m; above 1% for every additional 100m.








1. GPRS (support 2g/3g/4g internet)


2. Output reactor


3. LCD keypad


0.75kw - 710kw MPPT VFD Solar Pump Inverter Hybrid Inverter For Irrigation System 0


VEIKONG study famous brands inverter advantages

0.75kw - 710kw MPPT VFD Solar Pump Inverter Hybrid Inverter For Irrigation System 1


0.75kw - 710kw MPPT VFD Solar Pump Inverter Hybrid Inverter For Irrigation System 2



For 220V single phase motor connection

1: Single phase asynchronous motor wiring method (without starting capacitor):

Notice: U is connected to the common end of the starting winding and the working winding, V is connected to the starting winding, and W is connected to the working winding;


Single-phase asynchronous motor if the rotary steering is not correct, you can change the V and W wiring or set P22.13=1.


First solution: Set parameter P11.01=1 (Single phase motor type without capacitor) or second solution: set P00.11=31 if your motor frequency is 50 hz or set P00.11=32 if your motor frequency is 60HZ




For 220V single phase motor connection

2: Single-phase asynchronous motor wiring method (with capacitor)


Notice1: First solution: Connect motor cable to power terminal U and V and enter BSC mode to Set parameter P23.15=0(output phase loss shielding protection) or second solution: set macro P00.11=21 if your motor frequency is 50HZ or set P00.11=22 if your motor frequency is 60HZ
