Place of Origin | China |
---|---|
Brand Name | VEIKONG |
Certification | CE |
Model Number | VFD500-PV |
Minimum Order Quantity | 1 |
Price | Negotiable |
Packaging Details | the power less than 45kw use Carton, starting from 45kw use Wooden case |
Delivery Time | depend on the order quantity |
Payment Terms | L/C, T/T, Western Union |
Supply Ability | 15000pcs per Month |
Product Name | 30kw Mppt Inverter | Voltage | 220v/380v |
---|---|---|---|
Power | 1hp-200hp | Output Frequency | 50Hz Or 60Hz |
Warranty | 18 Monthes | Display | LED+LCD |
High Light | IP20 30kw 3 Phase Inverter,30kw Solar Vfd Pump Drive,Vfd 30kw 3 Phase Inverter |
30KW three phase solar water pump inverter with MPPT and solar vfd
Features of Solar pump Inverter
2. Soft start controlling in rush current, to avoid motor burning.
3. IP20 or ip65 design for outdoor application. Against raining, dust.
4. Support LCD and GPRS better monitor
sunshine, over-current, over-load, shortage-phase output Protection. Password can be set before going into parameters setting interface, in case non-professional wrong operation; Any 3phase 380V AC pump with good quality can be replaced in future maintenance.
Electrical Specifications
220V | 380V | |
Max input DC voltage | 450V | 810V |
DC voltage range | 150~450VDC | 300~810VDC |
Normal working DC voltage | 260V-400V | 400V-650V |
Recommended input mppt voltage | 330V | 550V |
MPPT efficiency | >99% | |
Rated output voltage | 1/3-phase 220VAC | 3-phase 380-480VAC |
Output frequency range | 50/60Hz | |
Max efficiency of the machine | 99% | |
Ambient temperature range | -10 °C~50 °C, derating if the temperature is above 40 °C | |
Cooling method | Air cooling | |
Protection degree | IP20/IP21 | |
Altitude | Below 1000m; above 1% for every additional 100m. | |
Standard | CE/ROHS |
Noted: We suggest solar panel power should be 1.3-1.4 times higher than solar pump power ,
And solar pump inverter power should be higher level than solar pump.
When solar pump distance to inverter higher than 100m,it should be equipped with Output reactor or higher level power inverter .
For Solar panel,l total VOC less than Maximum DC voltage of inverter and Solar panel vmp is recommend 530V for 380V pump and 305V for 220V pump
1. GPRS (support 2g/3g/4g internet)
It supplies water volume monitoring and operation of inverter from anywhere at anytim
It’s convenient to visit real time and historical data via web or Android APP anytime and anywhere.
This easy-to-use platform makes monitoring of solar pump systems simple and convenient,
far reducing operate time and monitoring costs as well.
2. LCD keypad
Standard inverter are with LED keypad,LCD keypad is optional.
LCD keypad can monitor 4 parameters at the same time. LED keypad show one parameter only.
LCD keypad with detailed parameter explain,no need use user manual ,more user friendly.
LCD keypad with copy and update and download function.widely used for government projects and big farms.

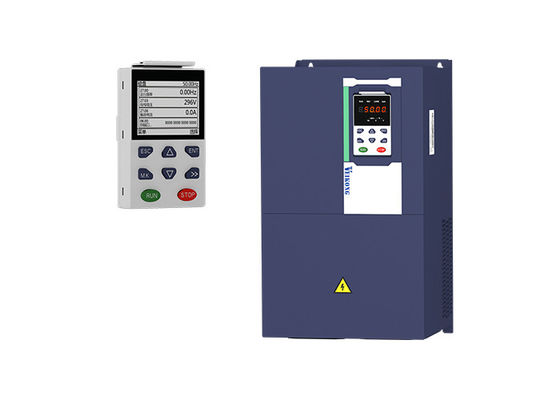

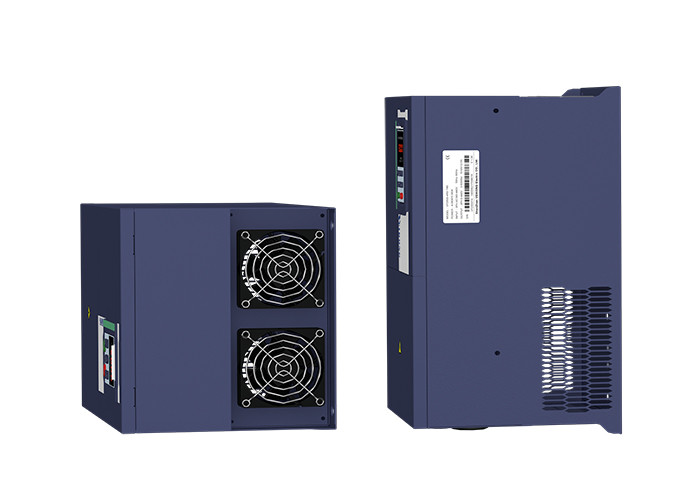

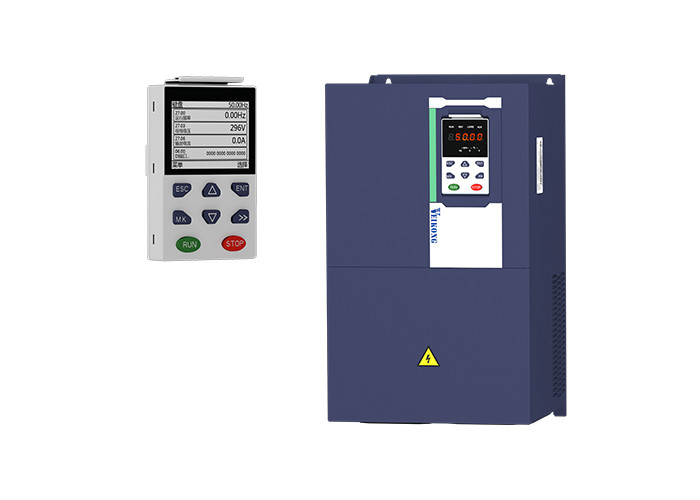

VEIKONG SOLAR PUMP INVERTER PICTURE:
Mode Range
Drive model | Max DC input current (A) | Rated output current (A) | Applicable water pump (kW) |
VFD500M-40T00150-PV | 6.1 | 3.7 | 1.5 |
VFD500M-40T00220-PV | 7.1 | 5 | 2.2 |
VFD500M-40T00400-PV | 16.5 | 9.4 | 4 |
VFD500M-40T00550-PV | 23.9 | 13 | 5.5 |
VFD500M-40T00750-PV | 30.6 | 17 | 7.5 |
VFD500-40T00150-PV | 6.1 | 3.7 | 1.5 |
VFD500-40T00220-PV | 7.1 | 5 | 2.2 |
VFD500-40T00400-PV | 16.5 | 9.4 | 4 |
VFD500-40T00550-PV | 23.9 | 13 | 5.5 |
VFD500-40T00750-PV | 30.6 | 17 | 7.5 |
VFD50040T01100-PV | 39.2 | 25 | 11 |
VFD500-40T01500-PV | 49.0 | 32 | 15 |
VFD500-40T01850-PV | 57 | 37 | 18.5 |
VFD500-40T02200-PV | 69 | 45 | 22 |
VFD500-40T03000-PV | 91 | 60 | 30 |
VFD500-40T03700-PV | 114 | 75 | 37 |
VFD500-40T04500-PV | 146 | 90 | 45 |
VFD500-40T05500-PV | 190 | 112 | 55 |
VFD500-40T07500-PV | 237 | 152 | 75 |
VFD500-40T09000-PV | 273 | 176 | 90 |
VFD500-40T11000-PV | 319 | 210 | 110 |
VFD500-40T13200-PV | 389 | 253 | 132 |
220V single phase or three phase level | |||
VFD500-20T00075-PV | 6.7 | 4.5 | 0.75 |
VFD500-20T00150-PV | 9.9 | 7 | 1.5 |
VFD500-20T00220-PV | 14.1 | 10.6 | 2.2 |
VFD500-20T00400-PV | 22.6 | 17 | 4 |
VFD500M-20T00150-PV | 9.9 | 7 | 1.5 |
VFD500M-20T00220-PV | 14.1 | 10.6 | 2.2 |
