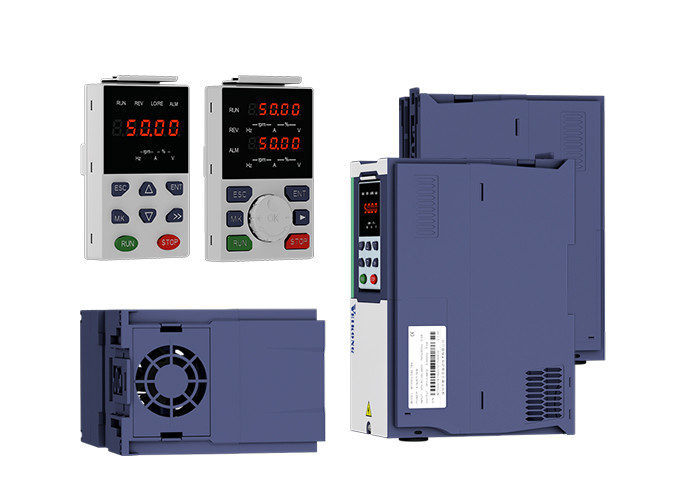

11kw 15kw MPPT VFD Solar Pump Inverter Support both DC/AC input
Product Details
| Product Name | 11kw 15kw Solar Pumping Inverter | Keyboard | LED/LCD |
|---|---|---|---|
| Recommend Input Voltage | 330VDC/530VDC | Output Frequency Inverter | 0-60hz |
| Current | Depend On Model | Power Range | 0.75-250KW |
| High Light | 15kw MPPT VFD Solar Pump Inverter,11kw MPPT VFD Solar Pump Inverter,15kw solar vfd pump drive |
||
Product Description
11kw 15kw Solar Pumping Inverter For Solar Agriculture Irrigation System
Key Features:
1. Support both DC/AC input and 220V level
2. Can switch between solar panels and on-grid power automatically
3. Support both single phase output and three phase output
4. Can be used with solar panels in day time, at night with on-grid power or generator
5. Widely working voltage can work as low as 350V-800VDC for 380V level and 200-410VDC for 220V level
6. Support input power from solar panels, on-grid power, generator..
7. Built-in C3 EMC filter for better harmonic and VDR grounding conforming
Electrical Specifications
|
|
220V |
380V |
|
Max input DC voltage |
450V |
810V |
|
DC voltage range |
150~450VDC |
300~810VDC |
|
Normal working DC voltage |
260V-400V |
400V-650V |
|
Recommended input mppt voltage |
330V |
550V |
|
MPPT efficiency |
>99% |
|
|
Rated output voltage |
1/3-phase 220VAC |
3-phase 380-480VAC |
|
Output frequency range |
50/60Hz |
|
|
Max efficiency of the machine |
99% |
|
|
Ambient temperature range |
-10 °C~50 °C, derating if the temperature is above 40 °C |
|
|
Cooling method |
Air cooling |
|
|
Protection degree |
IP20/IP21 |
|
|
Altitude |
Below 1000m; above 1% for every additional 100m. |
|
|
Standard |
CE/ROHS |
|
Solar Pump Inverter Model
|
Drive model |
Max DC input current (A) |
Rated output current (A) |
Applicable water pump (kW) |
|
VFD500M-40T00150-PV |
6.1 |
3.7 |
1.5 |
|
VFD500M-40T00220-PV |
7.1 |
5 |
2.2 |
|
VFD500M-40T00400-PV |
16.5 |
9.4 |
4 |
|
VFD500M-40T00550-PV |
23.9 |
13 |
5.5 |
|
VFD500M-40T00750-PV |
30.6 |
17 |
7.5 |
|
VFD500-40T00150-PV |
6.1 |
3.7 |
1.5 |
|
VFD500-40T00220-PV |
7.1 |
5 |
2.2 |
|
VFD500-40T00400-PV |
16.5 |
9.4 |
4 |
|
VFD500-40T00550-PV |
23.9 |
13 |
5.5 |
|
VFD500-40T00750-PV |
30.6 |
17 |
7.5 |
|
VFD50040T01100-PV |
39.2 |
25 |
11 |
|
VFD500-40T01500-PV |
49.0 |
32 |
15 |
|
VFD500-40T01850-PV |
57 |
37 |
18.5 |
|
VFD500-40T02200-PV |
69 |
45 |
22 |
|
VFD500-40T03000-PV |
91 |
60 |
30 |
|
VFD500-40T03700-PV |
114 |
75 |
37 |
|
VFD500-40T04500-PV |
146 |
90 |
45 |
|
VFD500-40T05500-PV |
190 |
112 |
55 |
|
VFD500-40T07500-PV |
237 |
152 |
75 |
|
VFD500-40T09000-PV |
273 |
176 |
90 |
|
VFD500-40T11000-PV |
319 |
210 |
110 |
|
VFD500-40T13200-PV |
389 |
253 |
132 |
|
220V single phase or three phase level |
|||
|
VFD500-20T00075-PV |
6.7 |
4.5 |
0.75 |
|
VFD500-20T00150-PV |
9.9 |
7 |
1.5 |
|
VFD500-20T00220-PV |
14.1 |
10.6 |
2.2 |
|
VFD500-20T00400-PV |
22.6 |
17 |
4 |
|
VFD500M-20T00150-PV |
9.9 |
7 |
1.5 |
|
VFD500M-20T00220-PV |
14.1 |
10.6 |
2.2 |
Support GPRS
Product Application
FAQ:
1. What's the different between frequency inverter and solar pump inverter?
Frequency inverter is only accept AC input, it’s widely used in automated machines. But solar pump inverter not only accept AC input but also can connect with solar panel to accept DC input, it more save power, mainly used in solar pumping system.
2. What should be noticed when installing inverter?
Put the product in a place where is well ventilate, cool, dry and water-proof. Do not stress or put foreign objects into the inverter. Remember to turn on the inverter before turn on the appliance.
3. Do we need to set the parameter before using?
No need, our preset parameters can already meet your normal use.
And our inverter is AI intelligent working.
If you need to adjust the parameters yourself, you can do it in a few simple steps.
