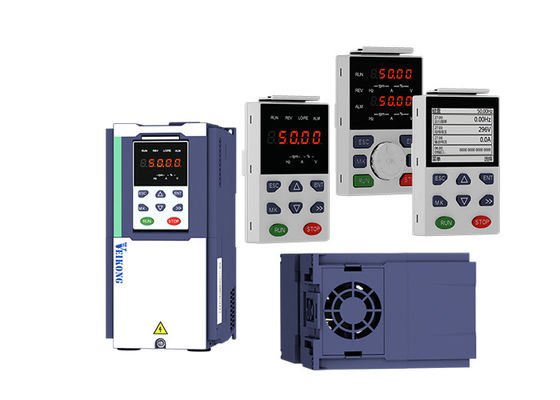

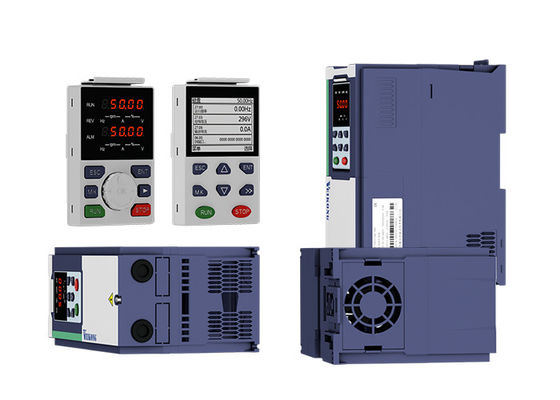

380V 1.5KW 2.2KW 4KW MPPT Solar Pump Inverter For Solar Pumping System
Product Details
| Product Name | 380V 1.5KW 2.2KW 4KW MPPT Solar Pump Inverter | Weight | 4kg |
|---|---|---|---|
| Output Type | Triple | Display | LED/LCD |
| MPPT | 99.6% | Output Frequency | 50Hz/60Hz |
| Type | For AC Pump |
Product Description
380V 1.5KW 2.2KW 4KW MPPT Solar Pump Inverter For Solar Pumping System
Product Features:
Built-in MPPT
Maximum power point tracking functionality ensures that you get the most power output possible from your solar panel and maximizes the performance of your pump throughout the day
Remote monitoring
VEIKONG solar pump inverter support RS485 and GPRS, you can monitor and configure drive and application parameters from any where via them.
Best off-grid solution
Where electricity is very erratic and unpredictable, farmers need not to depend on grid electricity for their agricultural requirements
Advanced control panel
The multilingual assistant control panel ensures easy drive programming. Real-time clock enables accurate fault logging and automatic start and stop of the drive when there is enough power available.
Electrical Specifications
|
|
220V |
380V |
|
Max input DC voltage |
450V |
810V |
|
DC voltage range |
150~450VDC |
300~810VDC |
|
Normal working DC voltage |
260V-400V |
400V-650V |
|
Recommended input mppt voltage |
330V |
550V |
|
MPPT efficiency |
>99% |
|
|
Rated output voltage |
1/3-phase 220VAC |
3-phase 380-480VAC |
|
Output frequency range |
50/60Hz |
|
|
Max efficiency of the machine |
99% |
|
|
Ambient temperature range |
-10 °C~50 °C, derating if the temperature is above 40 °C |
|
|
Cooling method |
Air cooling |
|
|
Protection degree |
IP20/IP21 |
|
|
Altitude |
Below 1000m; above 1% for every additional 100m. |
|
|
Standard |
CE/ROHS |
|
Noted:
We suggest solar panel power should be 1.3-1.4 times higher than solar pump power ,and solar pump inverter power should be higher level than solar pump. When solar pump distance to inverter higher than 100m,it should be equipped with Output reactor or higher level power inverter .for Solar panel,l total VOC less than Maximum DC voltage of inverter and Solar panel vmp is recommend 530V for 380V pump and 305V for 220V pump
Product Application
FAQ:
1. What's the different between frequency inverter and solar pump inverter?
Frequency inverter is only accept AC input, it’s widely used in automated machines. But solar pump inverter not only accept AC input but also can connect with solar panel to accept DC input, it more save power, mainly used in solar pumping system.
2. What should be noticed when installing inverter?
Put the product in a place where is well ventilate, cool, dry and water-proof. Do not stress or put foreign objects into the inverter. Remember to turn on the inverter before turn on the appliance.
3. Do we need to set the parameter before using?
No need, our preset parameters can already meet your normal use.
And our inverter is AI intelligent working.
If you need to adjust the parameters yourself, you can do it in a few simple steps.
