Auto track 110kw 150HP Solar Pump System Controller With MPPT Function
| Place of Origin | China |
|---|---|
| Brand Name | VEIKONG |
| Certification | CE |
| Model Number | VFD500-PV |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | the power less than 45kw use Carton, starting from 45kw use Wooden case |
| Delivery Time | depend on the order quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 15000pcs per Month |
Product Details
| Product Name | 110kw Solar Pump Controller | Power | 110Kw/150hp |
|---|---|---|---|
| OEM | Accept | Voltage | 380v |
| Application | Submersible Pump | Motor | Ac Motor And Permanent Magnet |
| High Light | 150HP Solar Pump System Controller,110kw Solar Pump System Controller,150HP mppt solar pump controller |
||
Product Description
110kw 150HP Pump Controller Solar Pumping Inverter with MPPT function
VEIKONG VFD500-PV series Solar Pumping Inverters
Power range: 0.75kw-75kw 220VAC
0.75kw-630kw 380VAC
1. Advanced MPPT Technology: Maximum MPPT Efficiency: 99%;
2. Auto-track All Daytime;
3. Auto dormancy/wake-up, Under-voltage restart;
4. Support both AC and DC power input (optional);
5. Water Level Monitoring: dry run protection, overflow protection Record: generated power, pumped water, running time;
6. The whole water pumping systems running not rely on grid power or battery;
7. Protection Functions: support low frequency, dormancy, dry-run, over-current, minimum power and other protection functions;
8. Default Auto-running: auto-running by keypad, auto-running by IoT, auto-running by Terminals;
9. Excellent Control Performance: make sure the system auto-running with unattended, maximum output frequency is 600hz under VF control;
10. Intelligent IoT: support GPRS module, for remote control.
Electrical Specifications and Power degree
| 220V | 380V | |
| Max input DC voltage | 450V | 810V |
| DC voltage range | 150~450VDC | 300~810VDC |
| Normal working DC voltage | 260V-400V | 400V-650V |
| Recommended input mppt voltage | 330V | 550V |
| MPPT efficiency | >99% | |
| Rated output voltage | 1/3-phase 220VAC | 3-phase 380-480VAC |
Accessories:
1. GPRS (support 2g/3g/4g internet)
2. LCD keypad
3. Output Reactor

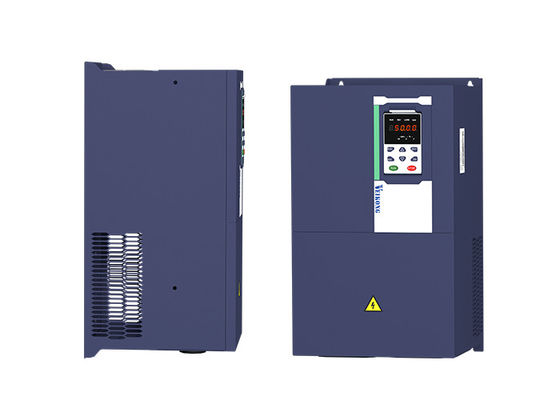

VFD500-PV solar pump inverter picture:
Mode Range
|
Drive model |
Max DC input current (A) |
Rated output current (A) |
Applicable water pump (kW) |
|
VFD500M-40T00150-PV |
6.1 |
3.7 |
1.5 |
|
VFD500M-40T00220-PV |
7.1 |
5 |
2.2 |
|
VFD500M-40T00400-PV |
16.5 |
9.4 |
4 |
|
VFD500M-40T00550-PV |
23.9 |
13 |
5.5 |
|
VFD500M-40T00750-PV |
30.6 |
17 |
7.5 |
|
VFD500-40T00150-PV |
6.1 |
3.7 |
1.5 |
|
VFD500-40T00220-PV |
7.1 |
5 |
2.2 |
|
VFD500-40T00400-PV |
16.5 |
9.4 |
4 |
|
VFD500-40T00550-PV |
23.9 |
13 |
5.5 |
|
VFD500-40T00750-PV |
30.6 |
17 |
7.5 |
|
VFD50040T01100-PV |
39.2 |
25 |
11 |
|
VFD500-40T01500-PV |
49.0 |
32 |
15 |
|
VFD500-40T01850-PV |
57 |
37 |
18.5 |
|
VFD500-40T02200-PV |
69 |
45 |
22 |
|
VFD500-40T03000-PV |
91 |
60 |
30 |
|
VFD500-40T03700-PV |
114 |
75 |
37 |
|
VFD500-40T04500-PV |
146 |
90 |
45 |
|
VFD500-40T05500-PV |
190 |
112 |
55 |
|
VFD500-40T07500-PV |
237 |
152 |
75 |
|
VFD500-40T09000-PV |
273 |
176 |
90 |
|
VFD500-40T11000-PV |
319 |
210 |
110 |
|
VFD500-40T13200-PV |
389 |
253 |
132 |
|
220V single phase or three phase level |
|||
|
VFD500-20T00075-PV |
6.7 |
4.5 |
0.75 |
|
VFD500-20T00150-PV |
9.9 |
7 |
1.5 |
|
VFD500-20T00220-PV |
14.1 |
10.6 |
2.2 |
|
VFD500-20T00400-PV |
22.6 |
17 |
4 |
|
VFD500M-20T00150-PV |
9.9 |
7 |
1.5 |
|
VFD500M-20T00220-PV |
14.1 |
10.6 |
2.2 |
Connect wire diagram
For 220V single phase motor connection
1: Single phase asynchronous motor wiring method (without starting capacitor):
Notice: U is connected to the common end of the starting winding and the working winding, V is connected to the starting winding, and W is connected to the working winding;
Single-phase asynchronous motor if the rotary steering is not correct, you can change the V and W wiring or set P22.13=1.
First solution: Set parameter P11.01=1 (Single phase motor type without capacitor) or second solution: set P00.11=31 if your motor frequency is 50 hz or set P00.11=32 if your motor frequency is 60HZ
For 220V single phase motor connection
2: Single-phase asynchronous motor wiring method (with capacitor)
Notice1: First solution: Connect motor cable to power terminal U and V and enter BSC mode to Set parameter P23.15=0(output phase loss shielding protection) or second solution: set macro P00.11=21 if your motor frequency is 50HZ or set P00.11=22 if your motor frequency is 60HZ
