Place of Origin | China |
---|---|
Brand Name | VEIKONG |
Certification | CE |
Model Number | VFD500-PV |
Minimum Order Quantity | 1 |
Price | Negotiable |
Packaging Details | Carton and Wooden Box |
Delivery Time | 3 days, depend on the order quantity |
Payment Terms | Western Union, T/T, L/C, D/A, D/P, PayPal |
Supply Ability | 15000pcs per Month |
Product Name | 380V 22kw 30hp MPPT Solar Water Pump Controller | Power | 22kw/30hp |
---|---|---|---|
GPRS | Support | Warranty | 18 Months |
MPPT | 99.6% | Application | Solar Pumping System |
High Light | 30hp Solar Well Pump Controller,22kw Solar Well Pump Controller,30hp solar borehole pump controller |

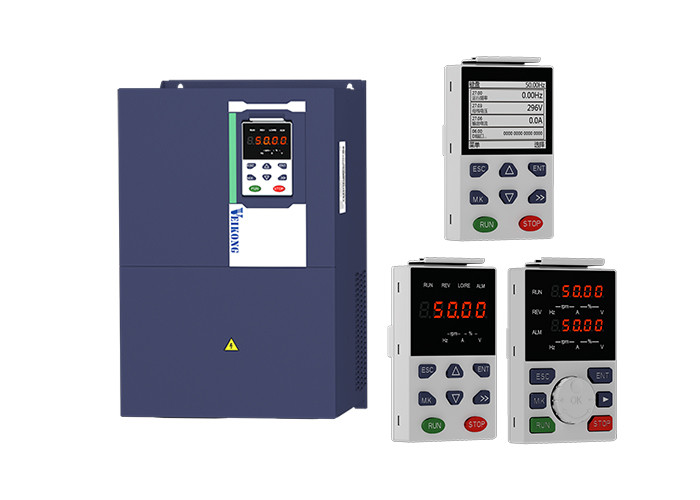

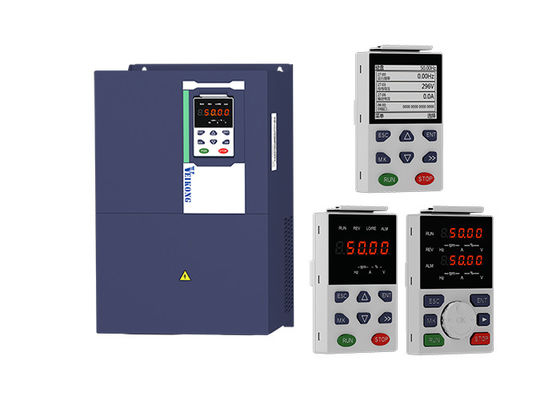

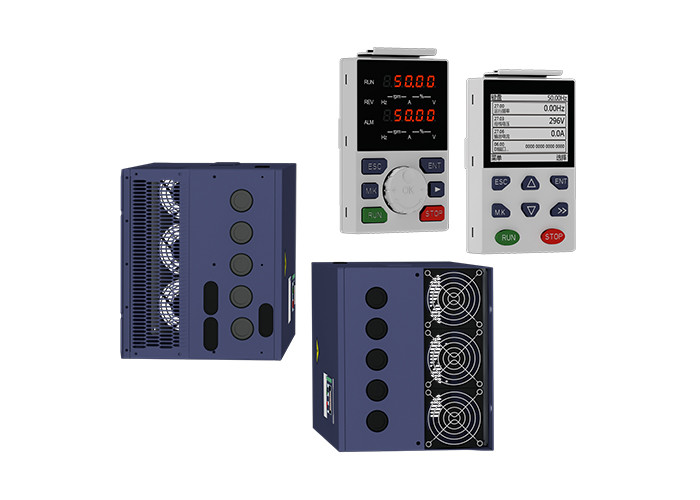

380V 22kw 30hp MPPT Solar Water Pump Controller Solar Pumping Inverter
The VFD500-PV is a solar pump inverter converting the DC power output from the solar panel to AC power supply for pump operation.
The VFD500-PV is designed for continuous as well as intermittent operation. The system is suitable for various water supply systems including irrigation. VEIKONG VFD500-PV automatically adjusts the pump flow to the availability of energy, increases the service life of the installation and facilitates its maintenance and detects system malfunctions.
The complete system consists of three components: PV cell, VEIKONG solar pump inverter, pump.
The built-in maximum power point tracking functionality enables the pump to run at maximum power using available solar power. It is independent from the grid and produces no pollution or noise. For large systems, a combiner box (junction box) with all cables from the solar modules could be connected into one set of power input cables before connecting them to a VFD500-PV solar pump inverter.
Electrical Specifications
220V | 380V | |
Max input DC voltage | 450V | 810V |
DC voltage range | 150~450VDC | 300~810VDC |
Normal working DC voltage | 260V-400V | 400V-650V |
Recommended input mppt voltage | 330V | 550V |
MPPT efficiency | >99% | |
Rated output voltage | 1/3-phase 220VAC | 3-phase 380-480VAC |
Output frequency range | 50/60Hz | |
Max efficiency of the machine | 99% | |
Ambient temperature range | -10 °C~50 °C, derating if the temperature is above 40 °C | |
Cooling method | Air cooling | |
Protection degree | IP20/IP21 | |
Altitude | Below 1000m; above 1% for every additional 100m. | |
Standard | CE/ROHS |
Model Range
Drive model |
Max DC input current (A) |
Rated output current (A) |
Applicable water pump (kW) |
VFD500M-40T00150-PV |
6.1 |
3.7 |
1.5 |
VFD500M-40T00220-PV |
7.1 |
5 |
2.2 |
VFD500M-40T00400-PV |
16.5 |
9.4 |
4 |
VFD500M-40T00550-PV |
23.9 |
13 |
5.5 |
VFD500M-40T00750-PV |
30.6 |
17 |
7.5 |
VFD500-40T00150-PV |
6.1 |
3.7 |
1.5 |
VFD500-40T00220-PV |
7.1 |
5 |
2.2 |
VFD500-40T00400-PV |
16.5 |
9.4 |
4 |
VFD500-40T00550-PV |
23.9 |
13 |
5.5 |
VFD500-40T00750-PV |
30.6 |
17 |
7.5 |
VFD50040T01100-PV |
39.2 |
25 |
11 |
VFD500-40T01500-PV |
49.0 |
32 |
15 |
VFD500-40T01850-PV |
57 |
37 |
18.5 |
VFD500-40T02200-PV |
69 |
45 |
22 |
VFD500-40T03000-PV |
91 |
60 |
30 |
VFD500-40T03700-PV |
114 |
75 |
37 |
VFD500-40T04500-PV |
146 |
90 |
45 |
VFD500-40T05500-PV |
190 |
112 |
55 |
VFD500-40T07500-PV |
237 |
152 |
75 |
VFD500-40T09000-PV |
273 |
176 |
90 |
VFD500-40T11000-PV |
319 |
210 |
110 |
VFD500-40T13200-PV |
389 |
253 |
132 |
220V single phase or three phase level |
|||
VFD500-20T00075-PV |
6.7 |
4.5 |
0.75 |
VFD500-20T00150-PV |
9.9 |
7 |
1.5 |
VFD500-20T00220-PV |
14.1 |
10.6 |
2.2 |
VFD500-20T00400-PV |
22.6 |
17 |
4 |
VFD500M-20T00150-PV |
9.9 |
7 |
1.5 |
VFD500M-20T00220-PV |
14.1 |
10.6 |
2.2 |
Solar Water Pump Wiring Diagram
Product Application
FAQ:
1. What should be noticed when installing inverter?
Put the product in a place where is well ventilate, cool, dry and water-proof. Do not stress or put foreign objects into the inverter. Remember to turn on the inverter before turn on the appliance.
2. Do we need to set the parameter before using ?
No need, our preset parameters can already meet your normal use.
And our inverter is AI intelligent working.
If you need to adjust the parameters yourself, you can do it in a few simple steps.
3. What is your main market?
Our brands are well known in Europe, Africa, Middle East, Southeast Asia and South America.
