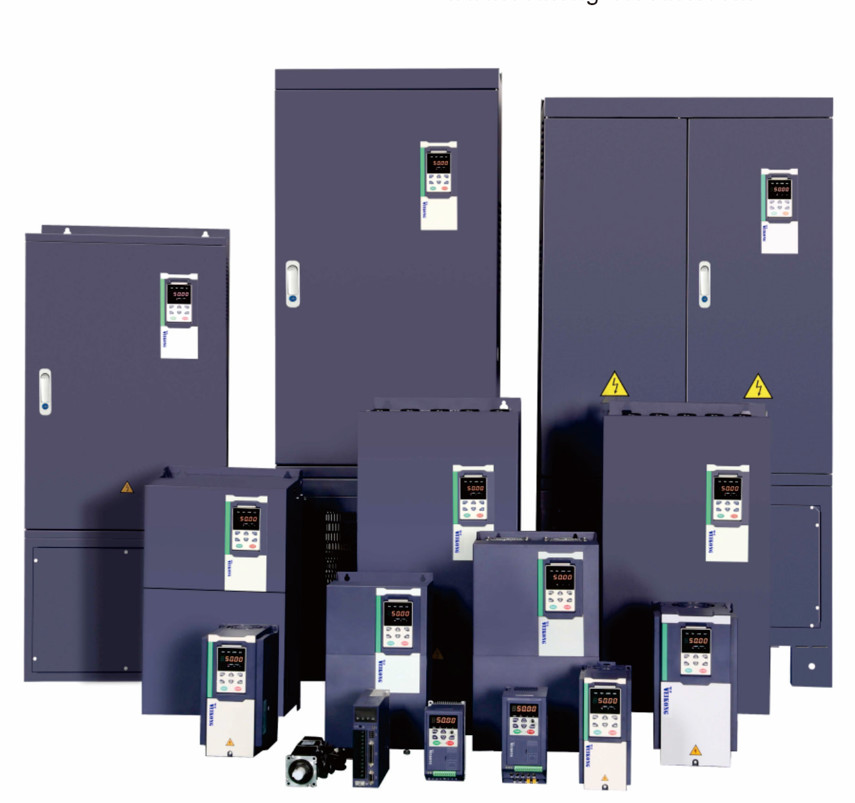

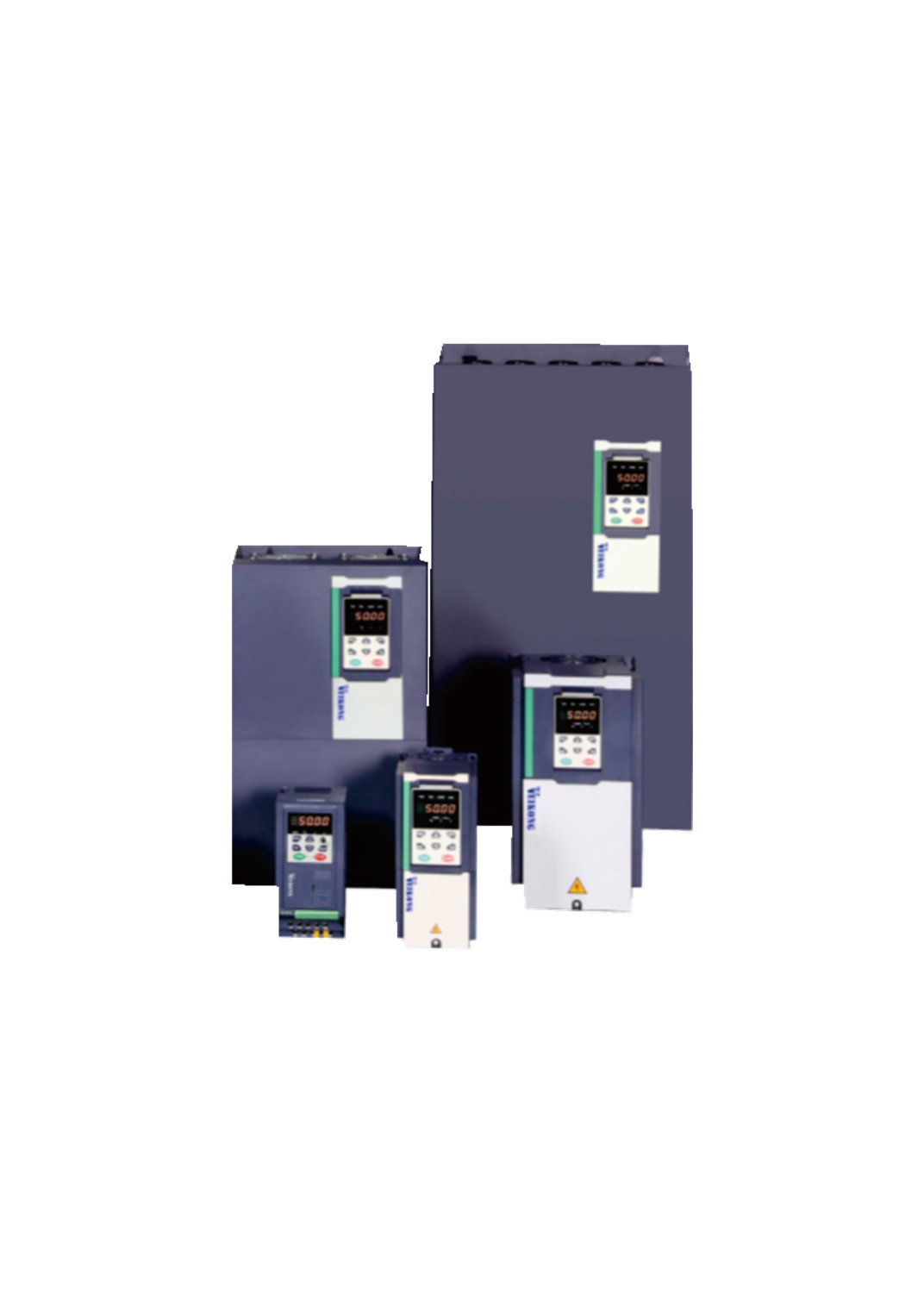

GRPS Supported PMSM Inverter High Precision Control VFD AC Drive
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VFD530
Minimum Order Quantity 23 pcs
Price negotiable
Packaging Details paper carton under 45kw, starting from 45kw wooden case for packing
Delivery Time depend on the quantity
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15000 per/ month
Product Details
Product Model High Performance Precision Control AC Drive Warranty Items 18 Months
Outside Size Compact Model Protection IP20
Color Dark Blue And White Control Mode VF SVC VC
High Light

GRPS Supported PMSM Inverter


PMSM Inverter IP20


Precision Control VFD AC Drive

Product Description

GRPS Supported PMSM Inverter High Precision Control AC Drives LCD For Options


1. Nice performance high precision control AC drives VFD530 series nice features

High capacity 256k TI DSP with faster response and higher accuracy

Support both static and dynamic motor auto-tune and encoder auto tune

Supoort 2 motor parameter groups and DC injection braking

LCD LED and shuttle keypad optional

Support Integral brak chopper(<30kw) and 2 PID loop for HVAC

Energy saving functions


2. Veikong High Perforamnce VFD530 Series General Technical Data

Item Specifiation
Model number VFD530 series
Suitable Motor  Asynchronous and synchronous
Applications Crane hoist and high precision control machines
Display options  LCD LED shuttle display for options
Warranty 18 months, if anything broken down during this period, we will be responsible for that
Sells areas  Middle east, south east, Africa, South America etc
Control Control mode V/f control Sensorless flux vector controlwithout PG card(SVC) Sensor speed flux vector control with PG card (VC)
Operating mode Speed control,Torque control(SVC and VC)
Speed range 1:100 (V/f) 1:200( SVC) 1:1000 (VC)
Speed control accuracy ±0.5% (V/f) ±0.2% (SVC) ±0.02% (VC)
Speed response 5Hz(V/f) 20Hz(SVC) 50Hz(VC)
frequency range 0.00~600.00Hz(V/f) 0.00~200.00Hz(SVC) 0.00~400.00Hz(VC)
Input frequency resolution Digital setting: 0.01 Hz Analog setting: maximum frequency x 0.1%
Startup torque 150%/0.5Hz(V/f) 180%/0Hz(VC)
Torque control accuracy SVC:within 5Hz10%,above 5Hz5% VC:3.0%
V/f curve V / f curve type: straight line, multipoint, power function, V / f separation; Torque boost support: Automatic torque boost (factory setting), manual torque boost
Frequency giving ramp Support linear and S curve acceleration and deceleration; 4 groups of acceleration and deceleration time, setting range 0.00s ~ 60000s
DC bus voltage control VdcMax Control: Limit the amount of power generated by the motor by adjusting the output frequency to avoid over-voltage trip; VdcMin control: Control the power consumption of the motor by adjusting the output frequency, to avoid jump undervoltage fault
Carrier frequency 1kHz~12kHz(Varies depending on the type)
Startup method Direct start (can be superimposed DC brake); speed tracking start
Stop method Deceleration stop (can be superimposed DC braking); free to stop
Main control function Jog control, droop control, up to 16-speed operation, dangerous speed avoidance, swing frequency operation, acceleration and deceleration time switching, VF separation, over excitation braking, process PID control, sleep and wake-up function, built-in simple PLC logic, virtual Input and output terminals, built-in delay relay, built-in comparison unit and logic unit, parameter backup and recovery, perfect fault record, fault reset, two groups of motor parameters freely switch, software swap output wiring, terminals UP / DOWN


3. Veikong Company introduction

Veikong is a professional VFD manufacturers in China for more than 20 years, we have advanced R&D groups and devices to provide better products year by year.

Besides, instant and satisfying technical support is also very important for us to help each of our clients have a nice buying experience.

We are so pleased to help each of our clients to solve problems when choosing an appropriate, how to expend the market and any other problems related to the VFD.


4. Product feedback from clients in different areas about VFD530 series

Veikong is and will always be trying to provide our clients high performance variable frequency inverter and nice technical support. Your satisfication is our goal.
