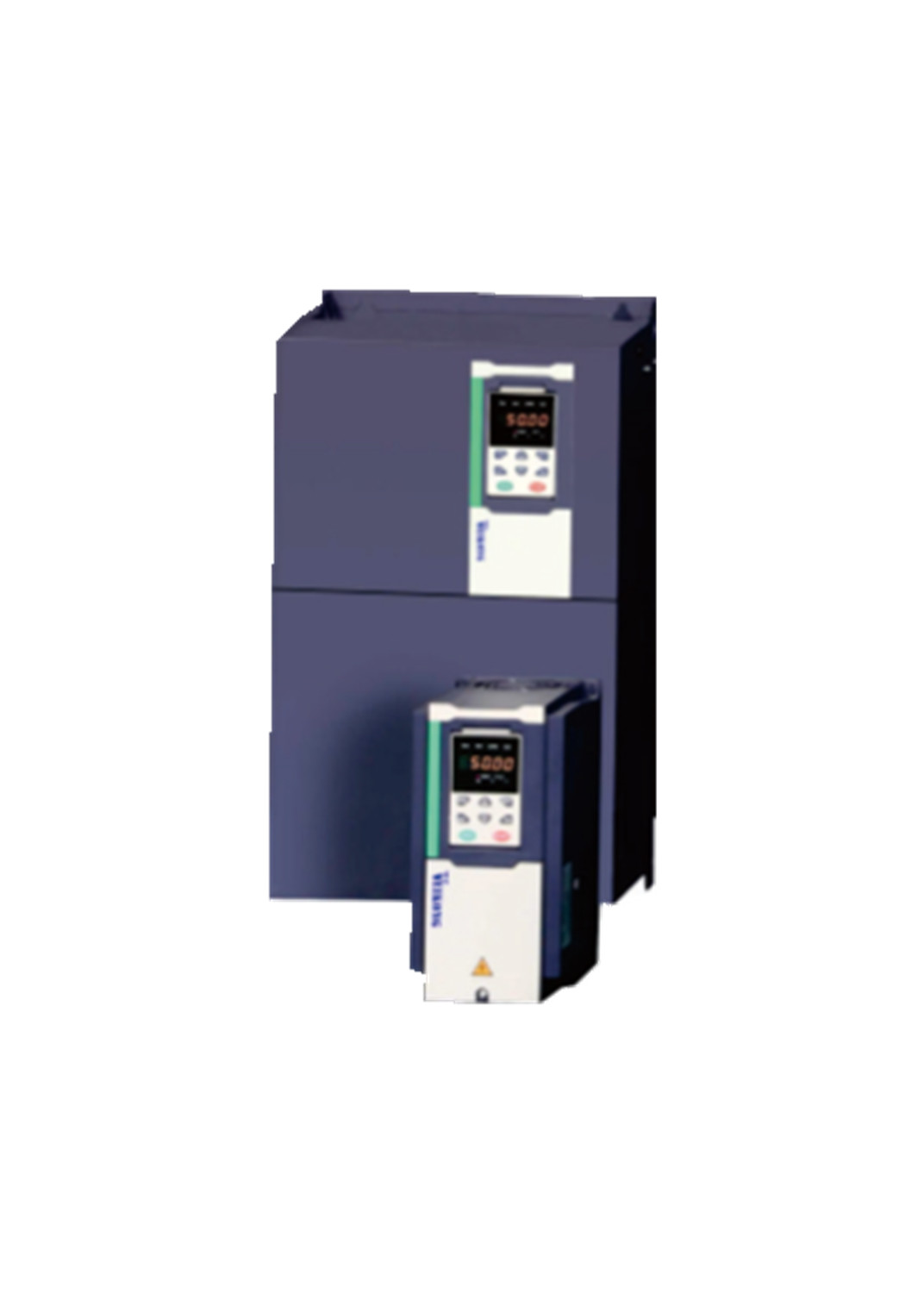

Precision Control PMSM Inverter 380V - 480V For Plastic Molding Machine
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VFD530
Minimum Order Quantity 25 pcs
Price negotiable
Packaging Details paper carton under 45kw, starting from 45kw wooden case for packing
Delivery Time depend on the quantity
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15000 per/ month
Product Details
Model Number Veikong VFD530 Series Quality High Performance
Applicable Asynchronous And Synchronous Motor Protection IP20
Voltage 380V-480V Control Mode VF SVC VC
High Light

Precision Control PMSM Inverter


PMSM Inverter 480V


Molding Machine pmsm motor driver

Product Description

Precision Control PMSM Inverter For Plastic Molding Machine And So On

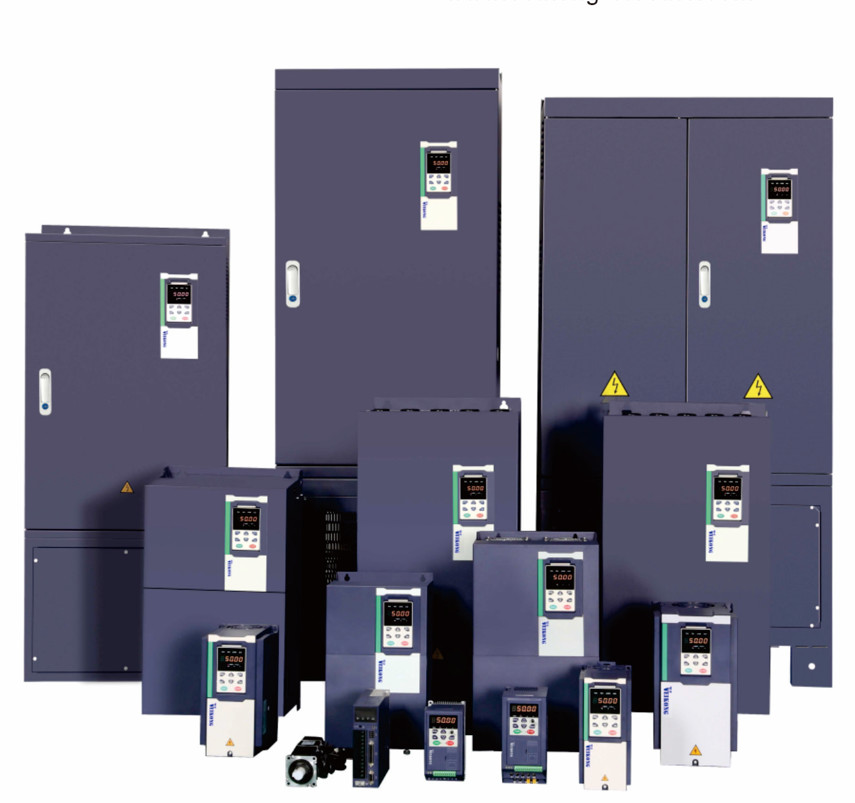

1. Veikong VFD530 series high performance precision control product features

Voltage range:

1 phase 200/240V 50/60HZ 0.75-7.5KW

3 phase 200/240V 50/60HZ 0.75-75KW

3 phase 380/480V 50/60HZ 0.75-710KW

Special brake logic mechanism for crane and hoist and precision control applications

Magnetic flux brake gain and tension control and torque mode control

The starting torque can be up to 200% at 0HZ

It can be applicable for asynchronous and synchronous motor control

Sleeping function, comparator and logic unit and controller

The output frequency can be up to 3000hz


2. VFD530 Series General Technical Data

Item Specifiation
Model number VFD530 series
Suitable Motor  Asynchronous and synchronous
Applications Crane hoist and high precision control machines
Control Control mode V/f control Sensorless flux vector controlwithout PG card(SVC) Sensor speed flux vector control with PG card (VC)
Operating mode Speed control,Torque control(SVC and VC)
Speed range 1:100 (V/f) 1:200( SVC) 1:1000 (VC)
Speed control accuracy ±0.5% (V/f) ±0.2% (SVC) ±0.02% (VC)
Speed response 5Hz(V/f) 20Hz(SVC) 50Hz(VC)
frequency range 0.00~600.00Hz(V/f) 0.00~200.00Hz(SVC) 0.00~400.00Hz(VC)
Input frequency resolution Digital setting: 0.01 Hz Analog setting: maximum frequency x 0.1%
Startup torque 150%/0.5Hz(V/f) 180%/0Hz(VC)
Torque control accuracy SVC:within 5Hz10%,above 5Hz5% VC:3.0%
V/f curve V / f curve type: straight line, multipoint, power function, V / f separation; Torque boost support: Automatic torque boost (factory setting), manual torque boost
Frequency giving ramp Support linear and S curve acceleration and deceleration; 4 groups of acceleration and deceleration time, setting range 0.00s ~ 60000s
DC bus voltage control VdcMax Control: Limit the amount of power generated by the motor by adjusting the output frequency to avoid over-voltage trip; VdcMin control: Control the power consumption of the motor by adjusting the output frequency, to avoid jump undervoltage fault
Carrier frequency 1kHz~12kHz(Varies depending on the type)
Startup method Direct start (can be superimposed DC brake); speed tracking start
Stop method Deceleration stop (can be superimposed DC braking); free to stop
Main control function Jog control, droop control, up to 16-speed operation, dangerous speed avoidance, swing frequency operation, acceleration and deceleration time switching, VF separation, over excitation braking, process PID control, sleep and wake-up function, built-in simple PLC logic, virtual Input and output terminals, built-in delay relay, built-in comparison unit and logic unit, parameter backup and recovery, perfect fault record, fault reset, two groups of motor parameters freely switch, software swap output wiring, terminals UP / DOWN



3. Product feedback from clients about VFD530 series

Veikong is and will always be trying to provide our clients high performance variable frequency inverter and nice technical support. Your satisfication is our goal.
