Place of Origin | China |
---|---|
Brand Name | VEIKONG |
Certification | CE |
Model Number | VFD500-PV |
Minimum Order Quantity | 5 |
Price | Negotiable |
Packaging Details | the power less than 45kw use Carton, starting from 45kw use Wooden case |
Delivery Time | 3 days, depend on the order quantity |
Payment Terms | L/C, T/T, Western Union |
Supply Ability | 15000pcs per Month |
Product Name | Solar Pump Vfd | Output Type | Single Or Three Phase |
---|---|---|---|
Frequency | 50hz/60hz | Voltage | 220v/ 380v |
Efficiency | 99% | OEM | YES |
High Light | 3 Phase Solar Pump Inverter 20hp,3 Phase Solar Pump Inverter 2hp,PID control Solar pump vfd |

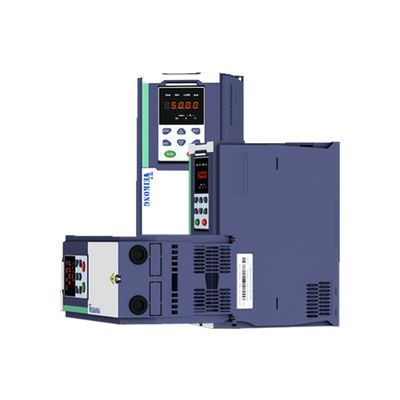

3 Phase MPPT 99% Solar Pump Inverter chinese manufacturer high performance
VEIKONG is solar pump inverter, industrial vfd, soft starter manufacturer.
Product Details and Features:
* It can enter automatically to sleep mode when the intensity of sunlight is weak, as well as can exit the sleep mode when the intensity of sunlight is becoming strong.
* Automatic sleep when on high-water level and automatic restart when on low-water level to realize automatic control through water level.
* Multiple power supply design, power input can be solar energy photovoltaic DC power supply, can also
be single phase or three phase AC power, simple wiring.
* Smart operation, water level detection and operation panel to prevent overflow, dry pumping.
* Protect itself in trouble and improve the reliability of whole system.
Product Details:
1. Power from 220V (0.75 – 75KW) , 380V (0.75 – 160KW)
2. DC/AC Input Compatible, can support DC and AC Input at same time
3. Protection Functions: Over/Under voltage Over-current, Short Circuit, Phase Failure etc
4. Optimized MPPT Arithmetic Accuracy 99%
5. Multi-liquid-level Control, Dry run protection, Wake and Sleep function,,PID control
6. Auto-dormancy on weak light, auto-recovery working on strong light, no need for man-made operations
7. Auto switch over From Solar to Grid Supply with weak light
8. Support optional LCD display and GPRS module.




Technical Questions and solutions
1. How to achieve Automatic start after stop?
If it is controlled by keyboard no need to set any parameter. If you want to control by external switch
As the default control mode is keypad control, First set P00.06=1 and use a wire or switch to connect com and DI1,When the switch is closed, the drive run, when the switch is open, the drive stop
2. How to use a float in the water tank to stop the pump if the tank is full?
If your float signal is digital signal Use float switch to short DI 1 and com and P00.06=1
3. How to design solar PV water pump system?
Key point: the rated VOC and VMP and power of the PV Array need to match the input range of the inverter. If needed, we will provide technical support online.
Why chose VEIKONG?
1. Infineon brand IGBT/Fuji IGBT, enduree temperature 175°C
2. Two-lines LED keypad/LCD kaypad
3. Fan: 70 000 hours using life
4. Capacitor: 50 000 hours using life
5. Input phase lacking protection
6. Output short circuit protection
7. Overvoltage protection
9. 10 000-15 000pcs per month production ability
10. 500pcs stock below 90KW
11. CE ISO certification, TUV SGS authority
12. Strong RD department, can update software
