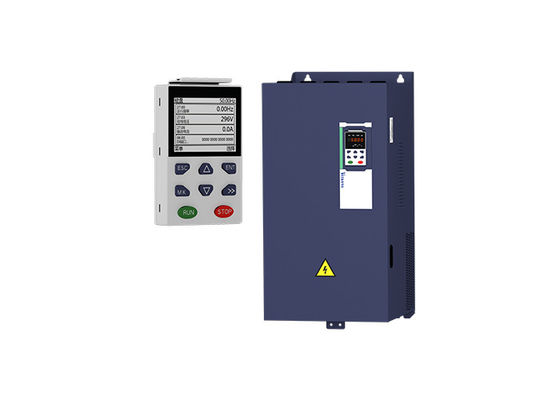

380v 220v 3 Phase Solar Pump Inverter Solar VFD Drive Manufacturers
| Place of Origin | China |
|---|---|
| Brand Name | VEIKONG |
| Certification | CE |
| Model Number | VFD500-PV |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | the power less than 45kw use Carton, starting from 45kw use Wooden case |
| Delivery Time | 3 days, depend on the order quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 15000pcs per Month |
Product Details
| Product Name | Three Phase Solar Pump Inverter | Type | DC-AC |
|---|---|---|---|
| Application | Water Pump System | Color | Bule And White |
| Warranty | 18 Monthes | Efficiency | 99% |
| High Light | 380v 220v 3 Phase Solar Pump Inverter,IP21 VFD Drive Manufacturers,IP20 3 Phase Hybrid Inverter |
||
Product Description
380v 220v 3 Phase Solar Pump Inverter Solar VFD Drive Manufacturers
Solar pump inverter 380v 2.2kw 4kw with LCD keypad for irrigation system
VEIKONG SOLAR PUMP INVERTER Special feature:
Support Maximum mppt efficiency 99%
Special solar mppt mode and PID mode
Support LCD display
Support GPRS remote control
Support IM AND PM pump
Support hybrid AC and DC
Support Marco mode
Support dry run protection
Support full water and low water protection
Support one button to switch AC
Electrical Specifications and Power degree
|
|
220V |
380V |
|
Max input DC voltage |
450V |
810V |
|
DC voltage range |
150~450VDC |
300~810VDC |
|
Normal working DC voltage |
260V-400V |
400V-650V |
|
Recommended input mppt voltage |
330V |
550V |
|
MPPT efficiency |
>99% |
|
|
Rated output voltage |
1/3-phase 220VAC |
3-phase 380-480VAC |
|
Output frequency range |
50/60Hz |
|
|
Max efficiency of the machine |
99% |
|
|
Ambient temperature range |
-10 °C~50 °C, derating if the temperature is above 40 °C |
|
|
Cooling method |
Air cooling |
|
|
Protection degree |
IP20/IP21 |
|
|
Altitude |
Below 1000m; above 1% for every additional 100m. |
|
|
Standard |
CE/ROHS |
|
Product Application
VEIKONG VFD500-PV solar pumping inverter is specially designed for watering system. A high converting efficiency of 99% and advanced MPPT technology make the solar energy fully used. It converts DC power into AC to drive all kinds of motors. The intelligent design protects the pumps from many abnormal cases, such as over-loading, over-voltage, dry-running, over-heating,low frequency and et
● Easy to use
Simply connect the photovoltaic panel to the inverter, no need to set any parameters, and the PV pump can be automatically started after power-on
● Multiple protection measures It has protection functions such as PV over-voltage protection, PV polarity reverse connection alarm, over-temperature automatic derating, etc., which can effectively extend the life of the product
● Advanced MPPT algorithmEnsure solar power tracking efficiency can reach 99%
● GPRS remote monitoringSupports optional GPRS module, which can realize remote monitoring function of computer webpage and mobile APP
● AC/DC switching schemeAll series of products can realize automatic switching of PV DC input and grid AC input, which can meet 24 hours of no care work
