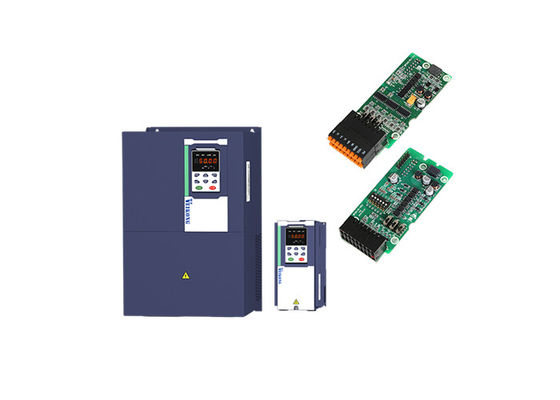

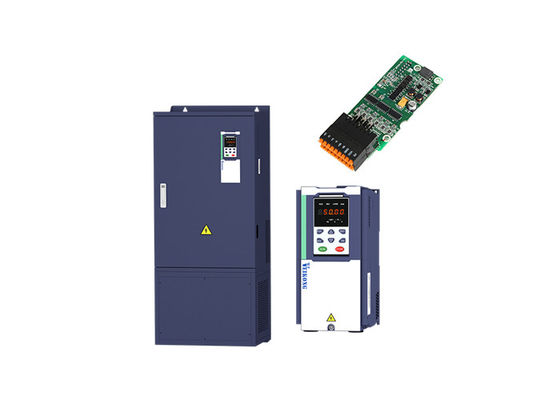

3 Phase 0.75kw 1.5kw 2.2kw MPPT Solar Pump Inverter 2HP 3HP 5HP
| Place of Origin | China |
|---|---|
| Brand Name | VEIKONG |
| Certification | CE |
| Model Number | VFD500-PV |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | the power less than 45kw use Carton, starting from 45kw use Wooden case |
| Delivery Time | 3 days, depend on the order quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 15000pcs per Month |
Product Details
| Product Name | Three Phase Solar Pump Inverter | Current | Deoends |
|---|---|---|---|
| Output Type | Single Or Three Phase | Frequency | 50hz/60hz |
| Output Power | 2hp 3hp 5hp | Voltage | 220v/380v |
| High Light | 2.2kw MPPT Solar Pump Inverter,0.75kw Solar 3 Phase Inverter,1.5kw MPPT Solar Pump Inverter |
||
Product Description
3 Phase 0.75kw 1.5kw 2.2kw MPPT Solar Pump Inverter 2HP 3HP 5HP
Solar pump inverter 380v 2.2kw 4kw with LCD keypad for irrigation system
Advantages:
VEIKONG solar pump inverter
1. Support Maximum mppt efficiency more than 99%
2. Special solar mppt mode and PID mode
3. Support LCD display, dual display
4. Support GPRS remote control
5. Support IM AND PM pump
6. Support hybrid AC and DC
7. Support Marco mode
8. Support dry run protection
9. Support full water and low water protection
10. Support one button to switch AC
Electrical Specifications and Power degree
|
|
220V |
380V |
|
Max input DC voltage |
450V |
810V |
|
DC voltage range |
150~450VDC |
300~810VDC |
|
Normal working DC voltage |
260V-400V |
400V-650V |
|
Recommended input mppt voltage |
330V |
550V |
|
MPPT efficiency |
>99% |
|
|
Rated output voltage |
1/3-phase 220VAC |
3-phase 380-480VAC |
|
Output frequency range |
50/60Hz |
|
|
Max efficiency of the machine |
99% |
|
|
Ambient temperature range |
-10 °C~50 °C, derating if the temperature is above 40 °C |
|
|
Cooling method |
Air cooling |
|
|
Protection degree |
IP20/IP21 |
|
|
Altitude |
Below 1000m; above 1% for every additional 100m. |
|
|
Standard |
CE/ROHS |
|
Product Application
For 220V single phase motor connection
1: Single phase asynchronous motor wiring method (without starting capacitor):
Notice: U is connected to the common end of the starting winding and the working winding, V is connected to the starting winding, and W is connected to the working winding;
Single-phase asynchronous motor if the rotary steering is not correct, you can change the V and W wiring or set P22.13=1.
First solution: Set parameter P11.01=1 (Single phase motor type without capacitor) or second solution: set P00.11=31 if your motor frequency is 50 hz or set P00.11=32 if your motor frequency is 60HZ
For 220V single phase motor connection
2:Single-phase asynchronous motor wiring method (with capacitor)
Notice1:First solution: Connect motor cable to power terminal U and V and enter BSC mode to Set parameter P23.15=0(output phase loss shielding protection) or second solution: set macro P00.11=21 if your motor frequency is 50HZ or set P00.11=22 if your motor frequency is 60HZ
