VEIKONG 3 Phase Solar Pump Inverter 5.5kw Dc And Ac Power Input Solar System
| Place of Origin | China |
|---|---|
| Brand Name | VEIKONG |
| Certification | CE |
| Model Number | VFD500-PV |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | the power less than 45kw use Carton, starting from 45kw use Wooden case |
| Delivery Time | depend on the order quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 15000pcs per Month |
Product Details
| Product Name | 5kw Solar Pump Inverter | Power | DC Power And AC Power |
|---|---|---|---|
| Output Voltage | 380v/220v | Display | LED+LCD |
| Warranty | 18 Monthes | Load | Solar Water Pump |
| High Light | 3 Phase Solar Pump Inverter 5.5kw,VEIKONG 3 Phase Solar Pump Inverter,VEIKONG 5.5 kw solar inverter |
||
Product Description
3 Phase solar pump inverter 5.5kw dc and ac power input solar system
Photovoltage pumping system using photovoltaic power drive motor pump pumping without electricity, the perfect solution to power shortage
occasions pumping needs. The system consists of a PV array, inverter, pumps and other components, to save the battery energy storage device, which can effectively reduce the system cost, reduce environmental pollution.
The system to run automatically, without human duty, saving a lot of manpower.
System modular design, stable operation, high reliability and safty, installation and maintenance is very convenient.
The system is composed of a PV generator, ump and a solar pump drive. based on the design philosopthat it is more efficient to store water rather than electricity, there is no energy storingevice such as storagre battery in the system. The system is prepared to be combined with a elevated water storage.
Electrical Specifications and Power degree
|
|
220V |
380V |
|
Max input DC voltage |
450V |
810V |
|
DC voltage range |
150~450VDC |
300~810VDC |
|
Normal working DC voltage |
260V-400V |
400V-650V |
|
Recommended input mppt voltage |
330V |
550V |
|
MPPT efficiency |
>99% |
|
|
Rated output voltage |
1/3-phase 220VAC |
3-phase 380-480VAC |
|
Output frequency range |
50/60Hz |
|
|
Max efficiency of the machine |
99% |
|
|
Ambient temperature range |
-10 °C~50 °C, derating if the temperature is above 40 °C |
|
|
Cooling method |
Air cooling |
|
|
Protection degree |
IP20/IP21 |
|
|
Altitude |
Below 1000m; above 1% for every additional 100m. |
|
|
Standard |
CE/ROHS |
|
Product Details and Features:
1. With Standard EMC C3 filter.
2. Support LED keypad, LCD keypad.
3. Can support optional 2g/3g/4g GPRS Module.
4. After connect wires, inverter will run automaticlly
5. Support PID function within MPPT control mode
6. Dry running protection self learning. Sleep and wake up function, Water full protection
7. Support 220v single phase pump and three phase pump, and support Permanent magnet synchronous motor
8. Support solar inverter parameters marco(USER menu). It is easy to find and set parameters.
9. Can support solar panels and ac power at same time, when solar is not enough, ac power can compensation
1. GPRS (support 2g/3g/4g internet)
It supplies water volume monitoring and operation of inverter from anywhere at anytim
It’s convenient to visit real time and historical data via web or Android APP anytime and anywhere.
This easy-to-use platform makes monitoring of solar pump systems simple and convenient,
far reducing operate time and monitoring costs as well.
2. LCD keypad
Standard inverter are with LED keypad,LCD keypad is optional.
LCD keypad can monitor 4 parameters at the same time. LED keypad show one parameter only.
LCD keypad with detailed parameter explain,no need use user manual ,more user friendly.
LCD keypad with copy and update and download function.widely used for government projects and big farms.

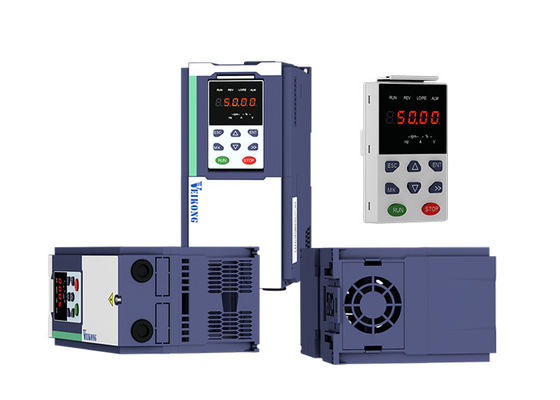

VFD500-PV 5.5KW 380V inverter picture:
Package:
When power is less than 45kw, we use carton package:
When power is more than 45kw, we use wood case package:
FAQ
1. How about your delivery time?
Some vfd we have stocks, after we receive payment,we will send you within two days.
3. How to pay it?
You can pay it to Alibaba,Paypal, western union, bank to bank.
4. What is your warranty?
Our warrantly time is 18months, if the goods has any quality problem, we will send free spare parts within warranty.
5. Payment Terms?
100% T/T before shipment for stock supply products; 30% as advance and balance before shipment for production and special design order.
6. Is our company accept customized and OEM order ?
Yes. Our company can accept OEM, it can be discussed according to your requirement.
