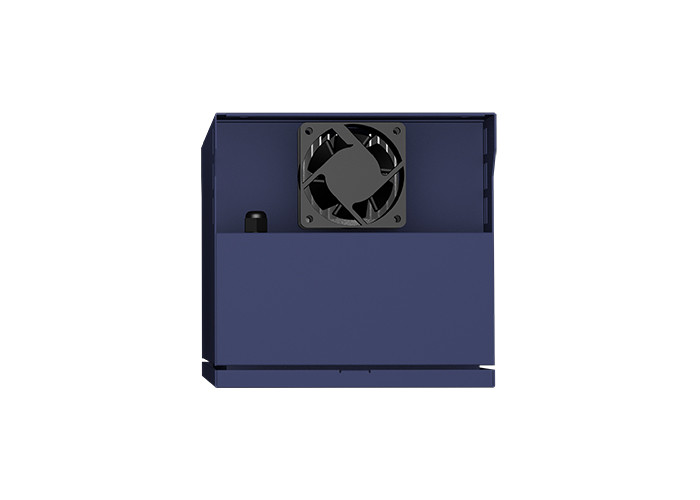

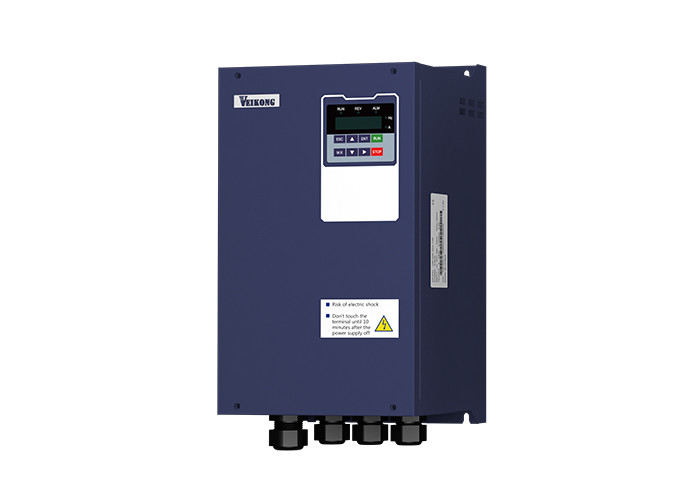

Automatic 380V 5.5KW 3 Phase Solar Pump Inverter With LED Display
Product Details
| Product Name | 380v 5.5kw Solar Pump Inverter | Current | 13A |
|---|---|---|---|
| Power | 5.5KW/7HP | Output Frequency | 50/60HZ |
| Display | LED | Color | Blue |
| High Light | 5.5KW 3 Phase Solar Pump Inverter,380V 3 Phase Solar Pump Inverter,Automatic 5.5 kw solar inverter |
||
Product Description
380V 5.5KW 3 Phase Solar Pump Inverter For Solar Pumping System
Excellent software:
1, Auto MPPT more than 99%.
2, No need set any parameterit is very good control for voltage, and Automatic start and stop.
3, Can automatically stop the pump when the tank is full
4, Also can automatically stop pump when there have no water inside the well
5, Different from many competitors, our inverter support minimum power protection and maximum current protection to ADAPT to different pump requirements.
For example, frequent start and stop at low voltage is not good for pump so you can let inverter sleep to make pump stop or work only in the minimum frequency
Wonderful service:
1, Price more competitive
2, Warranty time as long as 18 months
3, Fast delivery from 1 to 7 days
4, Product defect rate less than 1%
5, Professional technical support for the whole system even you only order solar pump inverter from us.
6, We also can do the whole metal box with switches, reactors...according your request.
Electrical Specifications and Power degree
|
|
220V |
380V |
|
Max input DC voltage(VOC) |
450V |
800V |
|
DC voltage range |
200~450VDC |
350~800VDC |
|
Recommended DC input voltage range (Vmpp) |
250V-400V |
450V-600V |
|
Recommended Input Operation Voltage |
305V(Vmpp) |
530V(Vmpp) |
|
MPPT efficiency |
>99% |
|
|
Rated output voltage |
1/3-phase 220VAC |
3-phase 380-480VAC |
|
Output frequency range |
50/60Hz |
|
|
Max efficiency of the machine |
99% |
|
|
Ambient temperature range |
-10 °C~50 °C, derating if the temperature is above 40 °C |
|
|
Cooling method |
Air cooling |
|
|
Protection degree |
IP65 |
|
|
Altitude |
Below 1000m; above 1% for every additional 100m. |
|
|
Standard |
CE/ROHS |
|
Product Application
FAQ
1. What is the MPPT efficiency value of your product?
Our solar pump inverter with Auto-Mppt more than 99% and user friendly no need set any parameters, just connect with solar panels and pumps, it running automatically.
2. Does your inverter support AC and DC input?
Yes, our solar pump inverter support AC and DC input, you also can use them at the same time.
3. Are all inverters original?
Of course, we only do original product, because we have a strong and professional technical team.
