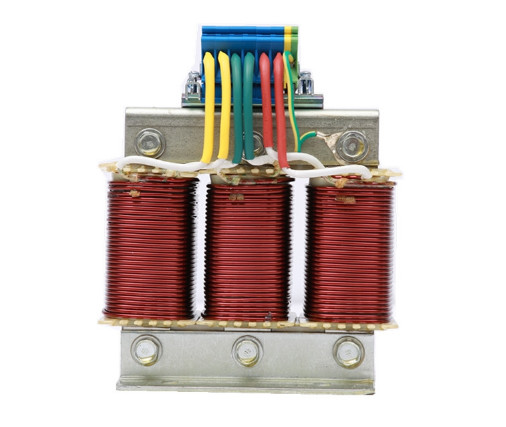

132KW 160kw Vfd Line Reactor
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VKS
Minimum Order Quantity 1
Price Negotiable
Packaging Details Carton
Delivery Time 3 days, depend on the order quantity
Payment Terms Western Union, T/T, L/C, D/A, D/P, PayPal
Supply Ability 15000pcs per Month
Product Details
Product Name 132kw Reactor Material Copper
Output Type Triple Type AC Drive
Input Voltage 380V Protection IP20
High Light

160kw Vfd Line Reactor

,

132KW Vfd Line Reactor

Product Description

AC choke 400V AC 50HZ 300A output reactor used for 132KW motor



Description of Load Reactor:

VKS-OCL series Load Reactors are placed in series with electrical equipment to introduce a specific controlled impedance to the AC circuit. This series are applied at AC drive output side to suppress inrush voltage, reducing inrush and peak current, improving real power factor, restraining grid harmonics and improving the output current waveform. Line Reactor also known as Output Reactor.



Material Features of Load Reactor:

Flexible Meterial Choice:Selection of silicon steel,ferrite magnetic material of amorphous core according to the frequency of application;
Excellent Property:Due to foll winding structure,small DC resistance, strong resistance to electromagnetic force, good overload ability in short time
Reliable Performance:F-class insulation materials are used, which ensure products maintain reliable performance in harsh working condition.
Low Noise: Designed with low magnetic flux density,the reactors of high linearit.With powerful overload sheets, the reactor noise is low



Characteristic of this series:

Rated operating power: 380V/690V/1140V
Operating frequency: 50/60Hz
Current range: 5-1600A
Operating ambient temperature: -25℃-50℃
Dielectric Strength: Core-winding,AC 3000V/50Hz/5mA/ free of demage in 60s (test in factory)
Insulation Resistance: Core-Winding,DC 1000V,Resistance >100M ohm
Noise: Less than 65dB(to be measured at the point 10 meter away from the reactor horizontally
Protection class: IP00
Insulation class: F/H
Standard: GB 19212.1-2008GB/T1094.6-2011



Application of Load Reactor:

It is recommended to use input reactors in the following circumstances:
1. frequency converters in parallel close connection.
2. line power supply has obvious disturbance from other devices (interference, over voltage).
3. there is voltage imbalance between the phases of the line power supply, exceeding 1.8% of the rated voltage.
4. a large number of converters are installed on the same line.
5. reduce cos C overload on the correction capacitor if there is a power factor correction device in the device.
6. power supply capacity is 60KVA and above, and frequency converter installation location is within 10M of large capacity power supply.
7. the frequency converter is powered by a very low impedance line (10 times higher than the inverter's rated value).



Product Parameters



Voltage Range

DC500V-1000V

Dielectric Strength

Core-Winding, AC 3000V/50Hz/5mA, free of damage in 60s

Insulation Resistance

Core-Winding, DC 1000V, Resistance > 100M ohm

Reactor's noise

less than 65dB(to be measured at the point 1 meter away from the reactor horizontally)

Standard

GB 19212.1-2008 GB/T 1094.6-2011



132KW 160kw Vfd Line Reactor 0



Product Size



132KW 160kw Vfd Line Reactor 1132KW 160kw Vfd Line Reactor 2132KW 160kw Vfd Line Reactor 3

132KW 160kw Vfd Line Reactor 4

Summary



VEIKONG Input and output reactor for variable frequency speed regulation: inverter and governor during use, often suffer from the surge current and surge voltage impact, the performance will be severely damaged and the service life of the converter and the governor, so to use input reactor arranged on the front, to suppress the surge voltage and surge current protection, inverter and governor, extend the service life and prevent the harmonic interference, at the same time, as the frequency converter and adopts frequency conversion speed governor is the way, so often produce hormonics and waveform distortion in the speed, will affect the normal use of equipment, therefore, require the installation of a reactor output on the output side, to filter out the harmonic voltage and current, improve the quality of power grid. Our produced Input and output reactor, using high quality imported silicon steel sheet, the advanced technology refined, have the advantages of small volume, low temprature rise, no noise etc..

Our AC input and output reactor can match with SIEMENS, ABB, Hitachi, Toshiba, Matsushita, Sanken, Yaskawa, PU, Danfoss, Fuji, LG, OMRON, Continental, OMRON, moden Schneider, Lenze, Emerson, and other domestic and foreign brands converters.
