750w 1500w 2200w Vfd Variable Frequency Inverters For Heavy Load

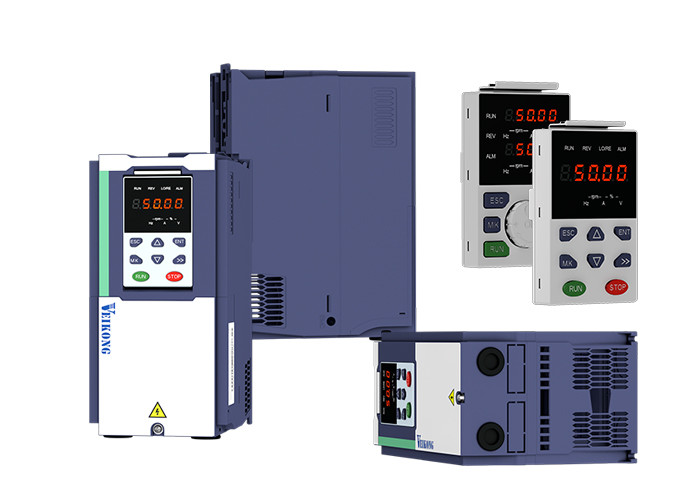

  • 750w 1500w 2200w Vfd Variable Frequency Inverters For Heavy Load
  • 750w 1500w 2200w Vfd Variable Frequency Inverters For Heavy Load
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VFD500
Minimum Order Quantity 1
Price Negotiable
Packaging Details the power less than 45kw use Carton, starting from 45kw use Wooden case
Delivery Time 3 days, depend on the order quantity
Payment Terms L/C, T/T, Western Union
Supply Ability 15000pcs per Month
Product Details
Product Name 0.75kw 1.5kw 2.2kw VFD Power 0.75kw-2.2kw
Output Frequency 50hz/60hz Voltage 220v/480v
Warranty 18 Monthes Application General Application
High Light

2200w Variable Frequency Inverters

,

1500w Variable Frequency Inverters

,

750w frequency inverter drive
Product Description
VEIKONG  hot selling VFD

VFD500M is high performance vector control mini vfd

VFD500 is high performacne general vfd

VFD550 is high perfromance special vfd with positional control.

VFD530 is high performance special vfd with lifting function, support 2 PID, support Synchronous and asynchronous motors

VFD500-PV is solar pump inverter.

VFD510 is IP65 inverter





VFD500 general vfd advantages:


1, With inside EMC C3 filter and building-block design for IO extension card and different kinds of PG card

2, Top performance in our industry which represent in torque in less than 1hz 0.5hz 0.25hz 0.1hz and 0hz
it can compare with any domestic chinese brand for output torque.

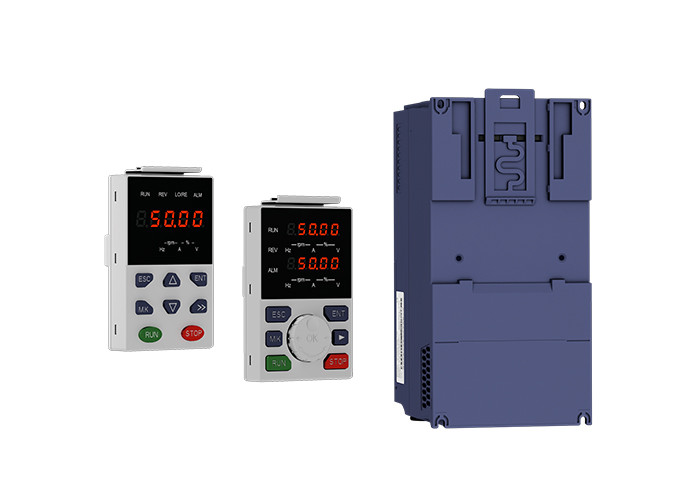

3, Smooth running and stability, support optional LCD keypad and dual display keypad.
support PC tools. support modbus485, canopen, profinet communciation.

4, Low noise on motor and fast response for 0.1S acceleration and deceleration without dead zone

5, Sleeping function and energy saving function as well as in built PLC programming

6, Tension control and torque mode control

7, Support two group motor parameters which can realize two motor switching control





Techincal Parameters:



Item Specifiation
Input Inuput Voltage

1phase/3phase 220V:200V～240V

3 phase 380V-480V:380V～480V
  Allowed Voltage fluctuation range -15%～10%
  Input frequency 50Hz / 60Hz,fluctuation less than 5%
Output Output Voltage 3phase:0～input voltage
  Overload capacity

General purpose application:60S for 150% of the rated current

Light load application:60S for 120% of the rated current
Control Control mode

V/f control

Sensorless flux vector control without PG card(SVC)

Sensor speed flux vector control with PG card (VC)
  Operating mode Speed control,Torque control(SVC and VC)
  Speed range

1:100 (V/f)

1:200( SVC)

1:1000 (VC)
  Speed control accuracy

±0.5% (V/f)

±0.2% (SVC)

±0.02% (VC)
  Speed response

5Hz(V/f)

20Hz(SVC)

50Hz(VC)
  frequency range

0.00～600.00Hz(V/f)

0.00～200.00Hz(SVC)

0.00～400.00Hz(VC)





750w 1500w 2200w Vfd Variable Frequency Inverters For Heavy Load



VEIKONG VFD APPLICATION:

750w 1500w 2200w Vfd Variable Frequency Inverters For Heavy Load





Mode Range

Model

Power capacity

(KVA)

Input current

(A)

 Output current(A)

Adaptable Motor

(KW)

 SIZE Brake Unit
Heavy load Light load
Three phase: 380-480V,50/60Hz
VFD500-R75GT4B 1.5 3.4 2.5 4.2 0.75 SIZE A Internal
VFD500-1R5GT4B 3 5 4.2 5.6 1.5
VFD500-2R2GT4B 4 5.8 5.6 9.4 2.2
VFD500-4R0G/5R5PT4B 5.9 10.5 9.4 13.0 3.7
VFD500-5R5G/7R5PT4B 8.9 14.6 13.0 17.0 5.5 SIZE B
VFD500-7R5G/011PT4B 11 20.5 17.0 23.0 7.5
VFD500-011G/015PT4B 17 26.0 25.0 31.0 11 SIZE C Internal
VFD500-015G/018PT4B 21 35.0 32.0 37.0 15
VFD500-018G/022PT4B 24 38.5 37.0 45.0 18.5 SIZE D
VFD500-022G/030PT4B 30 46.5 45.0 57.0 22
VFD500-030G/037PT4 40 62.0 60.0 75.0 30 SIZE E option
VFD500-037G/045PT4 50 76.0 75.0 87.0 37
VFD500-045G/055PT4 60 92.0 90.0 110.0 45 SIZE F
VFD500-055G/075PT4 75 113.0 110.0 135.0 55
VFD500-075G/090PT4 104 157.0 152.0 165.0 75 SIZE G
VFD500-090G/110PT4 112 170.0 176.0 210.0 90 External
VFD500-110G/132PT4 145 220.0 210.0 253.0 110 SIZE H
VFD500-132G/160PT4 170 258.0 253.0 304.0 132 SIZE I
VFD500-160G/185PT4 210 320.0 304.0 360.0 160
VFD500-185G/200PT4 245 372.0 360.0 380.0 185 SIZE J
VFD500-200G/220PT4 250 380.0 380.0 426.0 200
VFD500-220G/250PT4 280 425.0 426.0 465.0 220 SIZE K
VFD500-250G/280PT4 315 479.0 465.0 520.0 250
VFD500-280G/315PT4 350 532.0 520.0 585.0 280 SIZE L
VFD500-315G/355PT4 385 585.0 585.0 650.0 315
VFD500-355G/400PT4 420 638.0 650.0 725.0 355 SIZE M
VFD500-400G/450PT4 470 714.0 725.0 820.0 400
VFD500-450G/500PT4 530 800.0 820.0 / 450 SIZE N
VFD500-500G/560PT4 580 880.0 900.0 / 500
VFD500-560G/630PT4 630 950.0 980.0 / 560 SIZE O
VFD500-630GT4 710 1080 1120. / 630 SIZE O
VFD500-710GT4 790 1200 1260 / 710 SIZE O
Single phase :220V ,50/60HZ
VFD500-R40GS2 1.3 6.0 3.2 5.6 0.4 SIZE A Inbuilt
VFD500-R75GS2 2.4 11.0 5.6 8.0 0.75 SIZE A
VFD500-1R5GS2 3.5 15.0 8.0 10.6 1.5 SIZE A
VFD500-2R2GS2 5.5 25.0 10.6 14.0 2.2 SIZE A
VFD500-4R0GS2 7.7 35.0 17.0 23.0 4.0 SIZE B
VFD500-5R5GS2 8.9 53.0 25.0 31.0 5.5 SIZE C
VFD500-7R5GS2 11 67.0 32.0 37.0 7.5 SIZE C
