3HP 5HP 7HP 10HP 15HP VFD Variable Frequency Inverters For Asynchronous Motor
Product Details
| Product Name | 3HP 5HP 7HP 10HP 15HP AC Drive | Control Mode | V/F, SVC, VC, Torque Control |
|---|---|---|---|
| Size | Depend On Model | Input Type | Single Or Three Phase |
| Current | Depend On Model | Frequency | 50/60HZ |
| High Light | 7HP Variable Frequency Inverters,Asynchronous Motor 3 HP VFD,Asynchronous Motor 10 HP VFD |
||
Product Description

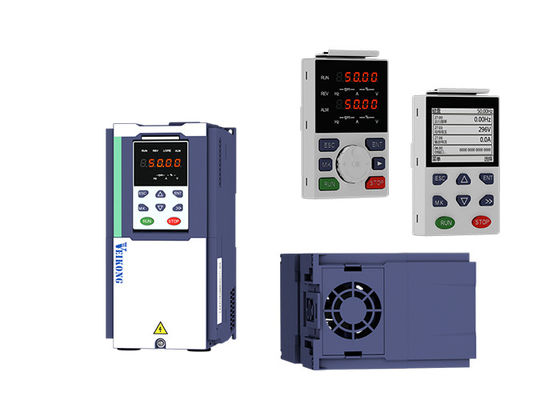

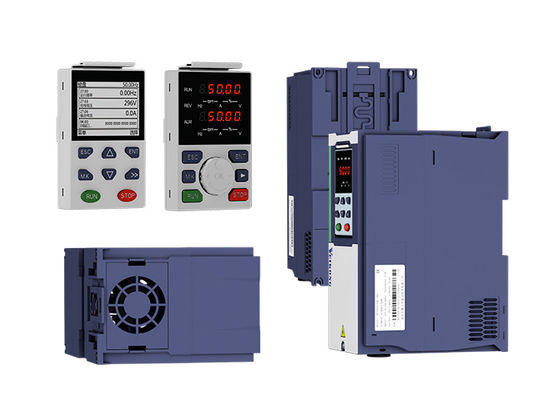

3HP 5HP 7HP 10HP 15HP AC Drive Frequency Inverter VFD For Asynchronous Motor
1. Rapid response to impact loads
When it meets with sudden load change, inverter can quickly restore the speed, reduce the speed fluctuation, and ensure the production stability and high quality finished products.
2. New Auto-tuning features
Auto-Tuning features optimize drive parameters for operation with induction motors as well as synchronous motors to achieve the highest performance levels possible.
Optimizing not only the drive and motor performance, but also automatically adjusts settings relative to the connected machinery.
New Auto-Tuning methods. VFD500 continuously analyzes changes in motor characteristics during operation for highly precise speed control.
Techinical Specifications
|
Item |
Specifiation |
|
|
Input |
Input Voltage |
1phase/3phase 220V:200V～240V 3 phase 380V-480V:380V～480V |
|
Allowed Voltage fluctuation range |
-15%～10% |
|
|
Input frequency |
50Hz / 60Hz,fluctuation less than 5% |
|
|
Output |
Output Voltage |
3phase:0～input voltage |
|
Overload capacity |
General purpose application:60S for 150% of the rated current Light load application:60S for 120% of the rated current |
|
|
Control |
Control mode |
V/f control Sensorless flux vector control without PG card(SVC) Sensor speed flux vector control with PG card (VC) |
|
Operating mode |
Speed control,Torque control(SVC and VC) |
|
|
Speed range |
1:100 (V/f) 1:200( SVC) 1:1000 (VC) |
|
|
Speed control accuracy |
±0.5% (V/f) ±0.2% (SVC) ±0.02% (VC) |
|
|
Speed response |
5Hz(V/f) 20Hz(SVC) 50Hz(VC) |
|
|
frequency range |
0.00～600.00Hz(V/f) 0.00～200.00Hz(SVC) 0.00～400.00Hz(VC) |
|
|
Input frequency resolution |
Digital setting: 0.01 Hz Analog setting: maximum frequency x 0.1% |
|
|
Startup torque |
150%/0.5Hz(V/f) 180%/0.25Hz(SVC) 200%/0Hz(VC) |
|
|
Torque control accuracy |
SVC:within 5Hz10%,above 5Hz5% VC:3.0% |
|
|
V/f curve |
V / f curve type: straight line, multipoint, power function, V / f separation; Torque boost support: Automatic torque boost (factory setting), manual torque boost |
|
|
Frequency giving ramp |
Support linear and S curve acceleration and deceleration; 4 groups of acceleration and deceleration time, setting range 0.00s ~ 60000s |
|
|
DC bus voltage control |
Overvoltage stall control: limit the power generation of the motor by adjusting the output frequency to avoid skipping the voltage fault;
Undervoltage stall control: control the power consumption of the motor by adjusting the output frequency to avoid yaw failure
VdcMax Control: Limit the amount of power generated by the motor by adjusting the output frequency to avoid over-voltage trip; VdcMin control: Control the power consumption of the motor by adjusting the output frequency, to avoid jump undervoltage fault |
|
|
Carrier frequency |
1kHz～12kHz(Varies depending on the type) |
|
|
Startup method |
Direct start (can be superimposed DC brake); speed tracking start |
|
|
Stop method |
Deceleration stop (can be superimposed DC braking); free to stop |
|
|
Maincontrol function |
Jog control, droop control, up to 16-speed operation, dangerous speed avoidance, swing frequency operation, acceleration and deceleration time switching, VF separation, over excitation braking, process PID control, sleep and wake-up function, built-in simple PLC logic, virtual Input and output terminals, built-in delay unit, built-in comparison unit and logic unit, parameter backup and recovery, perfect fault record,fault reset, two groups of motor parametersfreeswitching, software swap output wiring, terminals UP / DOWN |
|
|
Function |
Keypad |
LED Digital keyboard and LCD keypad(option) |
|
Communication |
Standard: MODBUS communication CAN OPEN AND PROFINET( IN DEVELOPMENT) |
|
|
PG card |
Incremental Encoder Interface Card (Differential Output and Open Collector), Rotary transformer Card |
|
|
Input terminal |
Standard: 5 digital input terminals, one of which supports high-speed pulse input up to 50kHz; 2 analog input terminals, support 0 ~ 10V voltage input or 0 ~ 20mA current input; Option card: 4 digital input terminals 2 analog input terminals.support-10V-+10V voltage input |
|
|
Output terminal |
standard: 1 digital output terminal; 1 high-speed pulse output terminal (open collector type), support 0 ~ 50kHz square wave signal output; 1 relay output terminal(second relay is an option ) 2 analog output terminals, support 0 ~ 20mA current output or 0 ~ 10V voltage output; Option card: 4 digital output terminals |
|
|
Protection |
Refer to Chapter 6 "Troubleshooting and Countermeasures" for the protection function |
|
|
Environment |
Installation location |
Indoor, no direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapor, drip or salt. |
|
Altitude |
0-3000m.inverter will be derated if altitude higher than1000m and rated output current will reduce by 1% if altitude increase by 100m |
|
|
Ambient temperature |
-10°C~ +40°C,maximum 50°C (derated if the ambient temperature is between 40°C and 50°C)Rated output current decrease by 1.5% if temperature increase by 1°C |
|
|
Humidity |
Less than 95%RH, without condensing |
|
|
Vibration |
Less than 5.9 m/s2 (0.6 g) |
|
|
Storage temperature |
-20°C ~ +60°C |
|
|
Others |
Installation |
Wall-mounted, floor-controlled cabinet, transmural |
|
Protection level |
IP20 |
|
|
cooling method |
Forced air cooling |
|
|
EMC |
CE ROHS |
Internal EMC filter Complies with EN61800-3 Category C3 3rd Environment |
Product Model
|
Model |
Power Capacity (KVA) |
Input Current (A) |
Output Current(A) |
Motor (KW) |
SIZE |
Brake Unit |
|
|
Heavy Load |
Light Load |
||||||
|
1ph/3ph |
|||||||
|
Single/Three phase: 200-240V 50/60Hz |
|||||||
|
VFD500-R75GT2B |
1.5 |
8.2/7.1 |
5.6 |
8.0 |
0.75 |
SIZE A |
Internal |
|
VFD500-1R5GT2B |
3 |
14/11.3 |
8.0 |
11 |
1.5 |
||
|
VFD500-2R2GT2B |
4 |
23/14.5 |
11 |
17 |
2.2 |
||
|
VFD500-4R0GT2B |
6.7 |
30.4/16.5 |
17 |
25 |
4.0 |
SIZE B |
|
|
Three phase: 380-480V,50/60Hz |
|
|
|||||
|
VFD500-R75GT4B |
1.5 |
3.4 |
2.5 |
4.2 |
0.75 |
SIZE A |
Internal |
|
VFD500-1R5GT4B |
3 |
5 |
4.2 |
5.6 |
1.5 |
||
|
VFD500-2R2GT4B |
4 |
5.8 |
5.6 |
9.4 |
2.2 |
||
|
VFD500-4R0G/5R5PT4B |
5.9 |
10.5 |
9.4 |
13.0 |
3.7 |
||
|
VFD500-5R5G/7R5PT4B |
8.9 |
14.6 |
13.0 |
17.0 |
5.5 |
SIZE B |
|
|
VFD500-7R5G/011PT4B |
11 |
20.5 |
17.0 |
23.0 |
7.5 |
||
|
VFD500-011G/015PT4B |
17 |
26.0 |
25.0 |
31.0 |
11 |
SIZE C |
Internal |
|
VFD500-015G/018PT4B |
21 |
35.0 |
32.0 |
37.0 |
15 |
||
|
VFD500-018G/022PT4B |
24 |
38.5 |
37.0 |
45.0 |
18.5 |
SIZE D |
|
|
VFD500-022G/030PT4B |
30 |
46.5 |
45.0 |
57.0 |
22 |
||
|
VFD500-030G/037PT4 |
40 |
62.0 |
60.0 |
75.0 |
30 |
SIZE E |
Option |
|
VFD500-037G/045PT4 |
50 |
76.0 |
75.0 |
87.0 |
37 |
||
|
VFD500-045G/055PT4 |
60 |
92.0 |
90.0 |
110.0 |
45 |
SIZE F |
|
|
VFD500-055G/075PT4 |
85 |
113.0 |
112.0 |
135.0 |
55 |
||
|
VFD500-075G/090PT4 |
104 |
157.0 |
152.0 |
165.0 |
75 |
SIZE G |
|
|
VFD500-090G/110PT4 |
112 |
170.0 |
176.0 |
210.0 |
90 |
External |
|
|
VFD500-110G/132PT4 |
145 |
220.0 |
210.0 |
253.0 |
110 |
SIZE H |
|
|
VFD500-132G/160PT4 |
170 |
258.0 |
253.0 |
304.0 |
132 |
SIZE I |
|
|
VFD500-160G/185PT4 |
210 |
320.0 |
304.0 |
360.0 |
160 |
||
|
VFD500-185G/200PT4 |
245 |
372.0 |
360.0 |
380.0 |
185 |
SIZE J |
|
|
VFD500-200G/220PT4 |
250 |
380.0 |
380.0 |
426.0 |
200 |
||
|
VFD500-220G/250PT4 |
280 |
425.0 |
426.0 |
465.0 |
220 |
SIZE K |
|
|
VFD500-250G/280PT4 |
315 |
479.0 |
465.0 |
520.0 |
250 |
||
|
VFD500-280G/315PT4 |
350 |
532.0 |
520.0 |
585.0 |
280 |
SIZE L |
|
|
VFD500-315G/355PT4 |
385 |
585.0 |
585.0 |
650.0 |
315 |
||
|
VFD500-355G/400PT4 |
420 |
638.0 |
650.0 |
725.0 |
355 |
SIZE M |
|
|
VFD500-400G/450PT4 |
470 |
714.0 |
725.0 |
820.0 |
400 |
||
Product Application
FAQ:
1. What voltage range can you support?
Single-phase 220v input, single-phase 220v output;
Single-phase 220v input, three-phase 220v output;
Three-phase 220v input, three-phase 220v output;
Single-phase 220v input, three-phase 380v output;
380v input, 380v output, from 0.4KW-710KW.
2. What is the standard of package?
Below 37kw, it's carton package; 45kw and above, it's wooden package.
3. Do you accept OEM business?
We accept OEM and ODM with your autherization.
