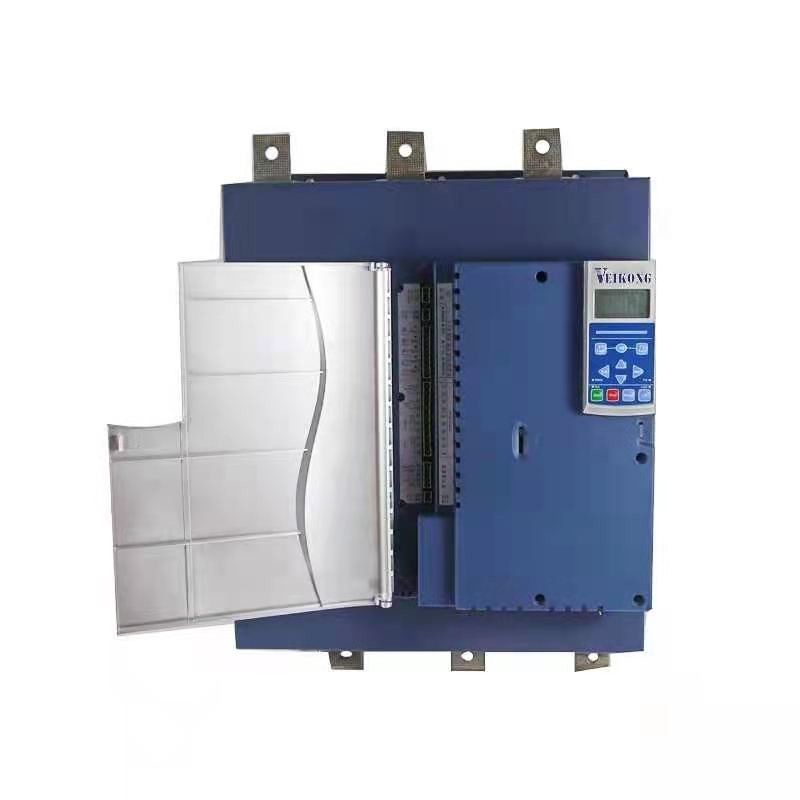

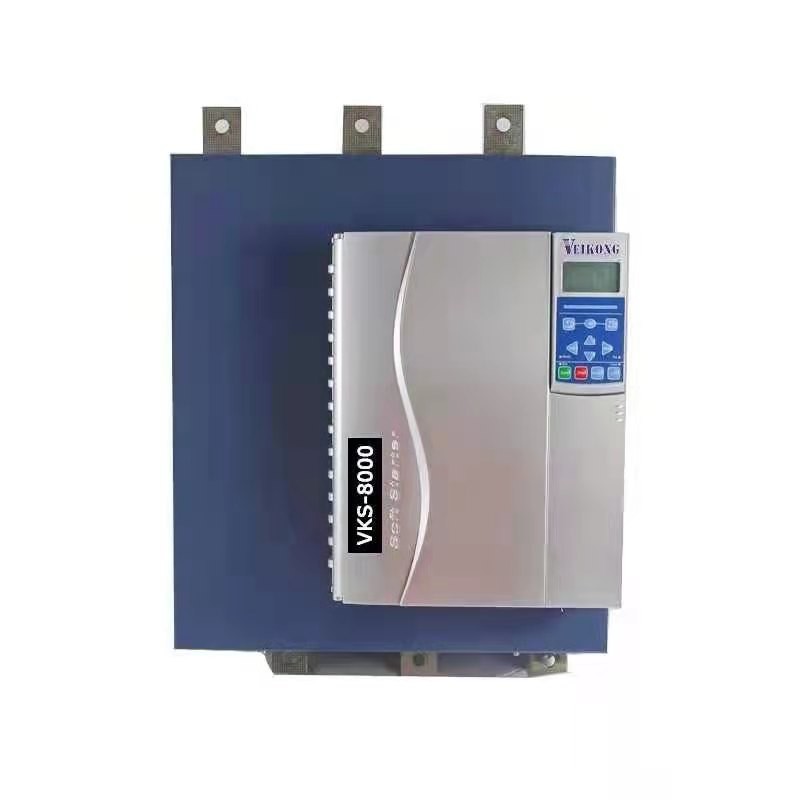

380V 440V Motor Soft Starter
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VKS8000
Minimum Order Quantity 1
Price Negotiable
Packaging Details Carton and Wooden Box
Delivery Time 3 days, depend on the order quantity
Payment Terms Western Union, T/T, L/C, D/A, D/P, PayPal
Supply Ability 15000pcs per Month
Product Details
Product Name 380V 440V Three Phase Intelligent Bypass Soft Starter Type Built In Bypass Contactor
Warranty 24 Months Phase 3 Phase
Frequency 50HZ/60HZ Voltage 220v, 380v, 525v, 690v
High Light

440V Motor Soft Starter

,

380V Motor Soft Starter

Product Description

380V 440V Three Phase Intelligent Bypass Soft Starter Or Pumps And Motors



Product Feature



Customization protection



• Motor overload

• Start timeout

• Undercurrent

• Current imbalance

• Input phase loss

• Output phase loss

• Soft starter overheated

• Motor overheated

• Phase sequence



Models that meet all connection requirements



• 22A-1000A (Rated)

• 200VAC-440VAC

• 380VAC-690VAC

• Internal bypass selection

• Star connection or delta connection



Advanced application optional features



• Ground fault protection

• DcviceNet> Modbus,Profibus^ Ethernet

• (Ethernet IP,Modbus TCP> Profinet) Or

USB communication module



Technical Specification



Item

Description

Input Power Supply

Input Voltage

Three-phase 380V/480V/660 AC

Frequency

50/60Hz

Adaptive Motor

Squirrel-cage three-phase asynchronous motor

Starting Times

It is recommended not to exceed 20 times per hour.

Control Mode

(1) Operation panel control.

(2) Operation panel + external control.

(3) External control.

(4) External control + COM control.

(5) Operation panel + external + COM control.

(6) Operation panel + COM control.

(7) COM control.

(8) No start or stop operation.

Start Mode

(1) Current-limiting to start.

(2) Voltage ramp to start.

(3) Torque control + current-limiting to start.

(4) Torque control + voltage ramp to start.

(5) Current ramp to start.

(6) Voltage current-limiting double closed-loop start.

Stop Mode

(1) Soft stop.

(2) Free stop.

Protective Function

(1) Open loop protection for external instantaneous stop terminals.

(2) Over-heat protection for soft starter.

(3) Protection for too long starting time.

(4) Input open phase protection.

(5) Output open phase protection.

(6) Unbalanced three-phase protection.

(7) starting over current protection.

(8) Running overload protection.

(9) Under voltage protection for power voltage.

(10) Overvoltage protection for power voltage.

(11) Protection for fault parameter setting.

(12) Load short circuit protection.

(13) Auto restart or incorrect wiring protection.

(14) Incorrect wiring protection of external control stop terminals.

Ambient

Place to be used

Indoor location with good ventilation free from corrosive gas and conductive dust.

Altitude

Below 1000M. It have to rise the rate power when the altitude is more than 1000M.

o

Temperature

-20 +45 C

Humidity

90%RH without dew condensation.

Vibration

<0.5G

Structure

Protection Class

IP20

Cooling Pattern

Fans cooling.



Product Details



380V 440V Motor Soft Starter 0

380V 440V Motor Soft Starter 1

380V 440V Motor Soft Starter 2
